Gradall 534B (9103-1390) Service Manual - Manual (Page 150)

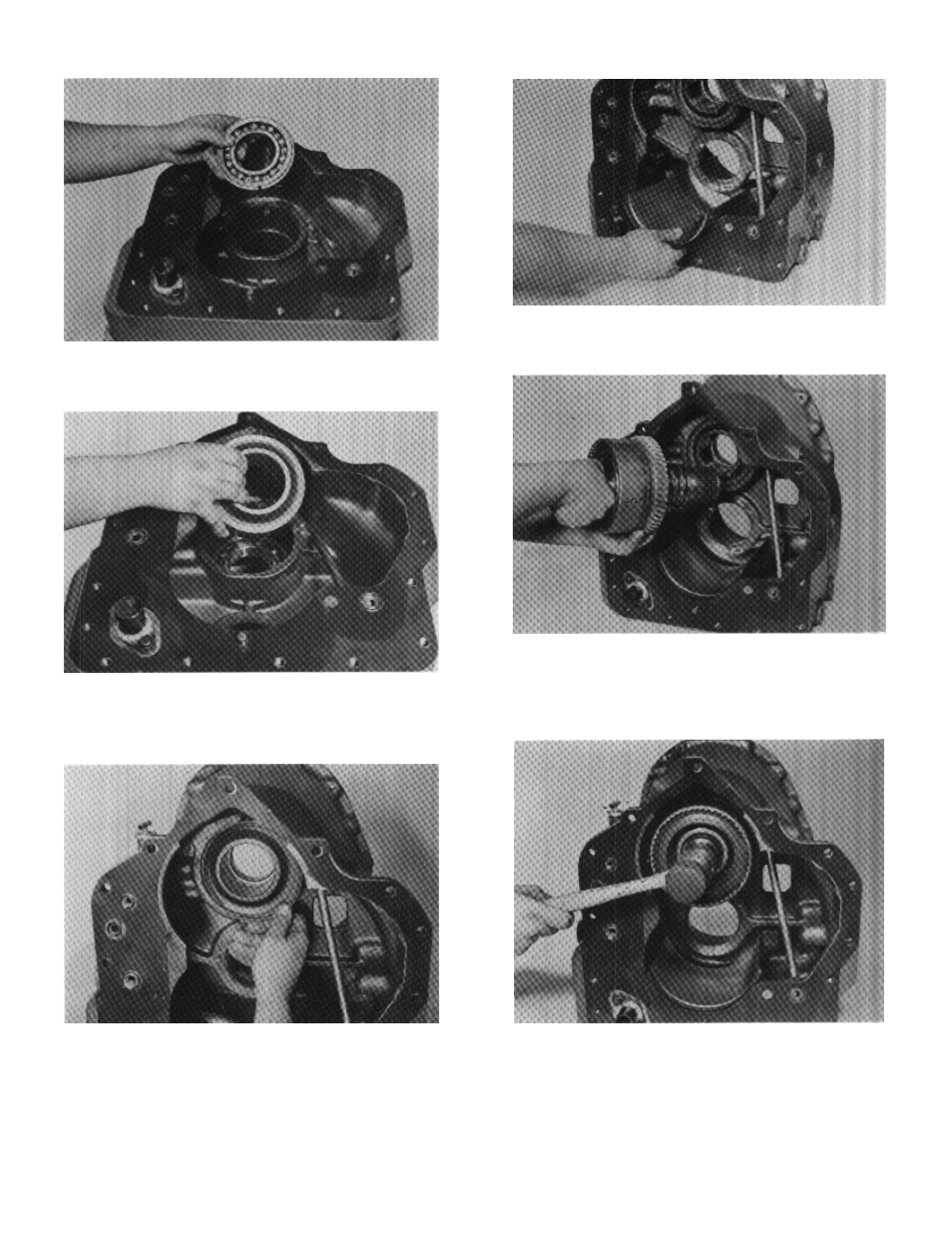

Figure 136
Tap forward shaft rear bearing into housing
Figure 138
Install piston ring sleeve retainer ring.
Figure 137
With roll pin in place tap forward shaft piston ring
sleeve into position.
-25-
Figure 141
Tap clutch assembly into position
Figure 140
Position forward clutch assembly into transmission
housing. Use caution as not to damage forward shaft
piston rings.
Figure 139
With front and rear baffle seals in position locate
baffle in housing.
