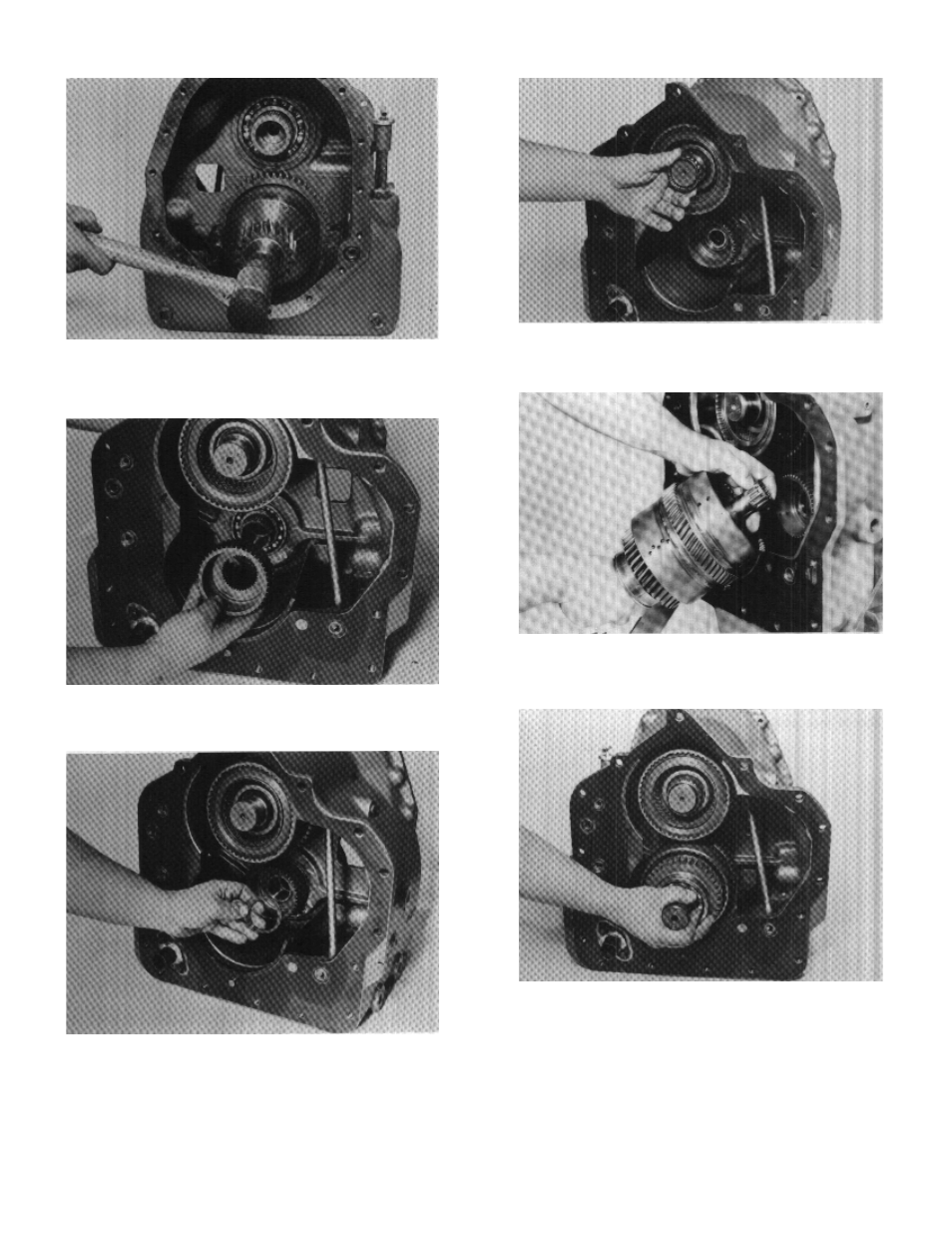

Figure 147
Position reverse and 2nd speed clutch on disc hub
aligning splines of disc hub with internal teeth of 2nd
speed clutch friction discs. Disc hub must be in full
position with friction discs. Do not force this operation.
Figure 146
Install 2nd speed clutch shaft rear pilot bearing on
shaft.
Figure 145
Locate forward shaft pilot bearing.
Figure 144
Install disc hub retainer ring.
Figure 143
Install the 2nd clutch disc hub.
Figure 142
Locate low clutch assembly in housing. Tap into
p o s i t i o n .
-26-
