Gradall 534B (9103-1390) Service Manual - Manual (Page 233)

SOMA OF AMERICA
SPECIFICATION: STB 3-201 PAGE: 1
ENGINEERING STANDARD OFFICE
REGISTER: STB SECTION: 3 SERIES: 200
ADJUSTMENT OF SPINDLE NUT FOR ON HIGHWAY VEHICLES
Planetary Hub Reducers - Ratios (2.68 - 3.55) 4.6 - 5.6

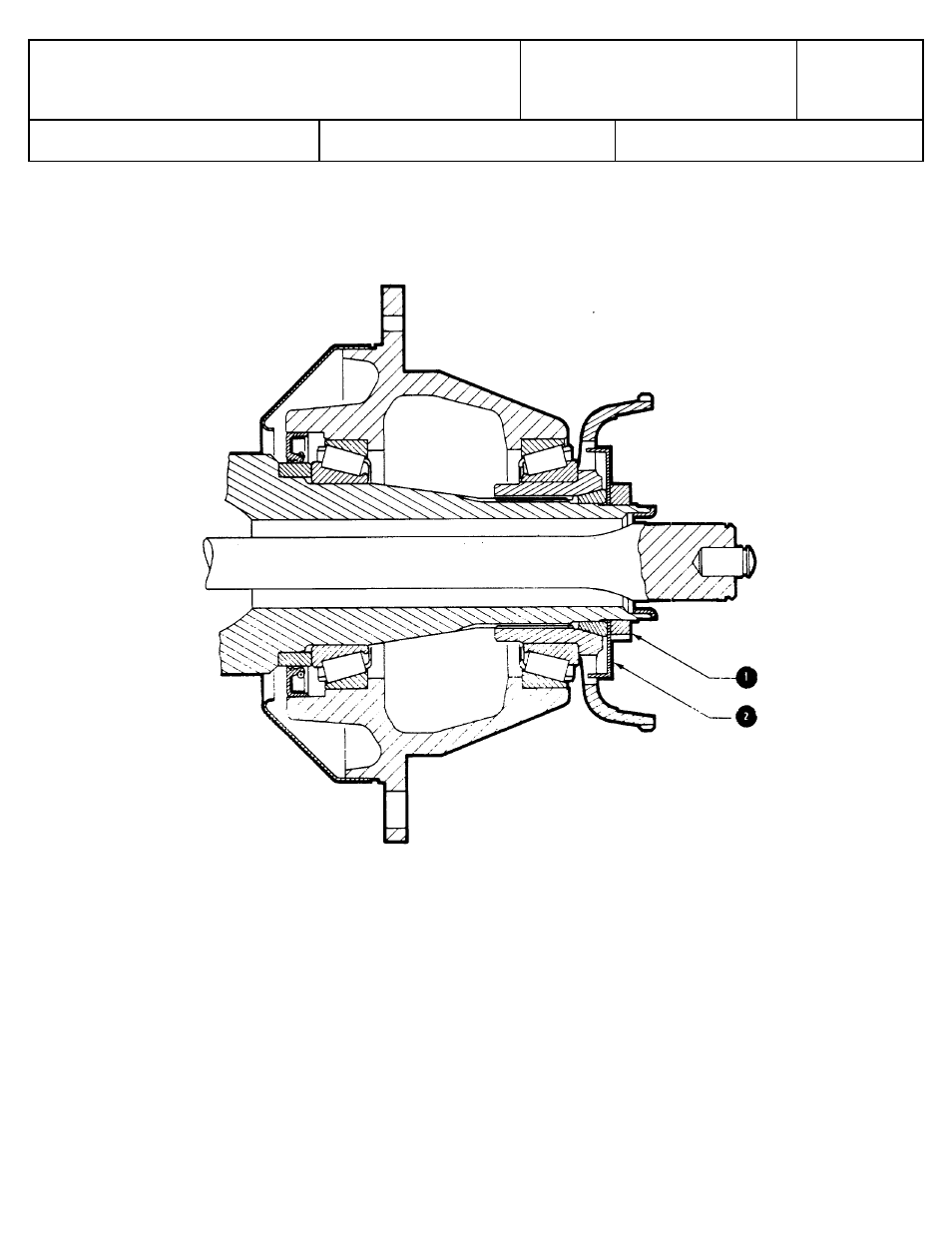

Tighten the spindle nut (1) while rotating the hub to correctly position all components
(bearing and tapper ring) tightening torque: 250 to 300 N.m (84-221 foot pounds).
Unscrew nut (1) through 45° (1/8 of a turn).
The end thrust clearance must be between 0.05 and 0.15mm (.0019 -.0045 Inches).
Secure the nut by bending over the ears of the locking washer (2).
