ALL FORMATS

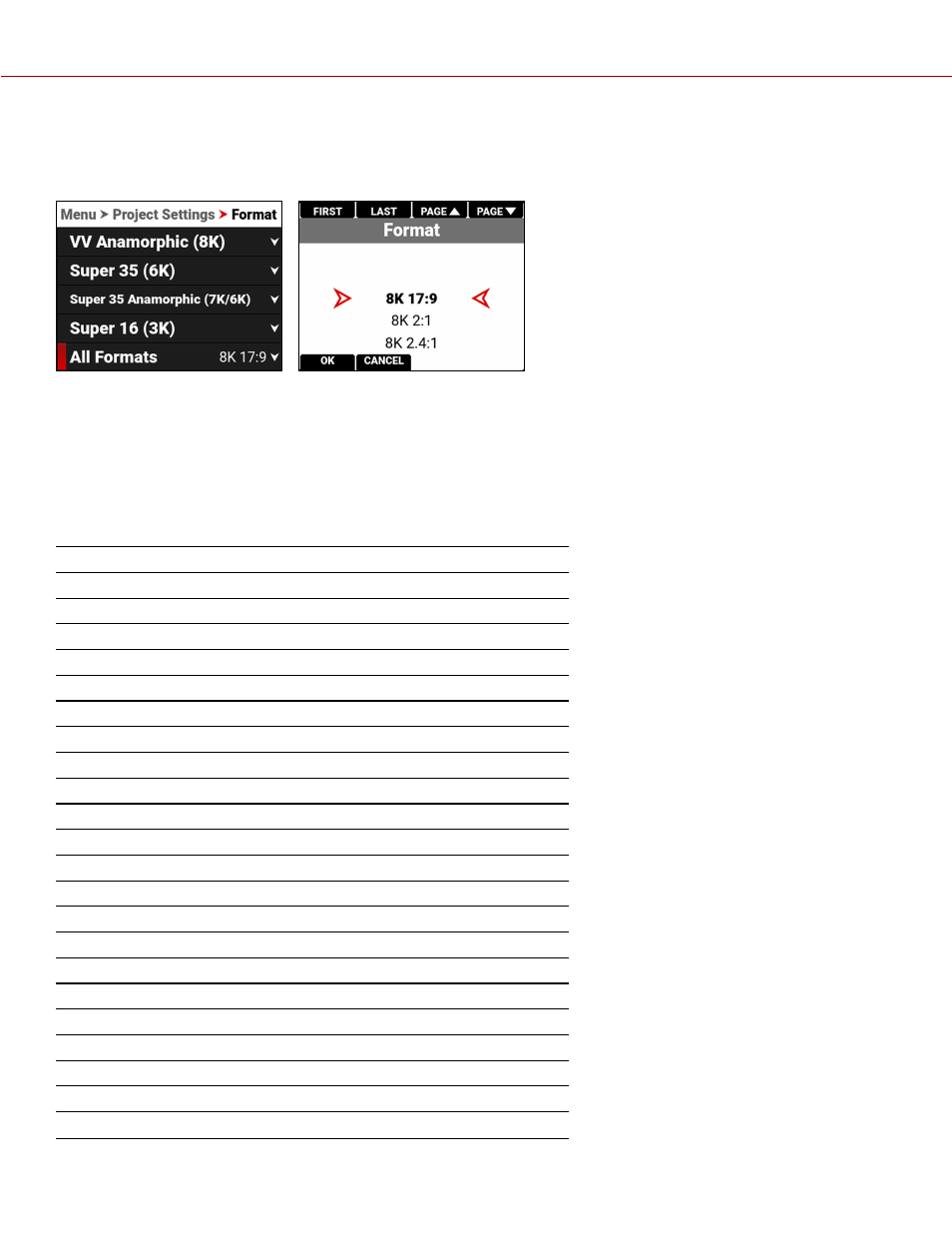

Use the All Formats setting to select from all of the possible formats to designate how much of the sensor the camera
should use to capture images.
The available aspect ratios are determined by the selected resolution.
When you lower the resolution on the camera, only a portion of the sensor is used. The camera does not downscale
from the 8K 17:9 format when recording RAW.
FORMAT SPECIFICATIONS
This table contains the dimensions of the sensor area in Pixels and in Millimeters used by all of the camera formats.
These dimensions are close approximations. The default setting is 8K 17:9.
FORMAT
DIMENSION (PIXELS)
DIMENSIONS (MM)
Width
Height
Width
Height
Diagonal
8K 17:9
8192
4320
40.96
21.6
46.31
8K 2:1
8192
4096
40.96
20.48
45.79
8K 2.4:1
8192
3456
40.96
17.28
44.46
8K 16:9
7680
4320
38.40
21.6
44.06
8K 1:1
4320
4320
21.6
21.6
30.55
8K 4:3 2x
5760
4320
28.80
21.60
36.00
8K 6:5 2x
5184
4320
25.92
21.60
33.74
8K 1:1 2x
4320
4320
21.60
21.60
30.55
8K 3:2 1.8x
6480
4320
32.40
21.60
38.94
8K 4:3 1.8x
5758
4320
28.80
21.60
36.00
8K 3:2 1.6x
6480
4320
32.40
21.60
38.94
8K 16:9 1.5x
7680
4320
38.40
21.60
44.06
8K 17:9 1.3x
8192
4320
40.96
21.60
46.31
8K 16:9 1.3x
7680
4320
38.40
21.60
44.06
8K 17:9 1.25x
8192
4320
40.96
21.60
46.31
7K 17:9
7168
3780
35.84
18.90
40.52
7K 2:1
7168
3584
35.84
17.92
40.07
7K 2.4:1
7168
3002
35.84
15.01
38.86
7K 16:9
6720
3780
33.60
18.90
38.55
7K 1:1
3780
3780
18.90
18.90
26.73
7K 4:3 2x
5040
3780
25.20
18.90
31.50
