DSMC3 RED ® TOUCH 7.0" LCD

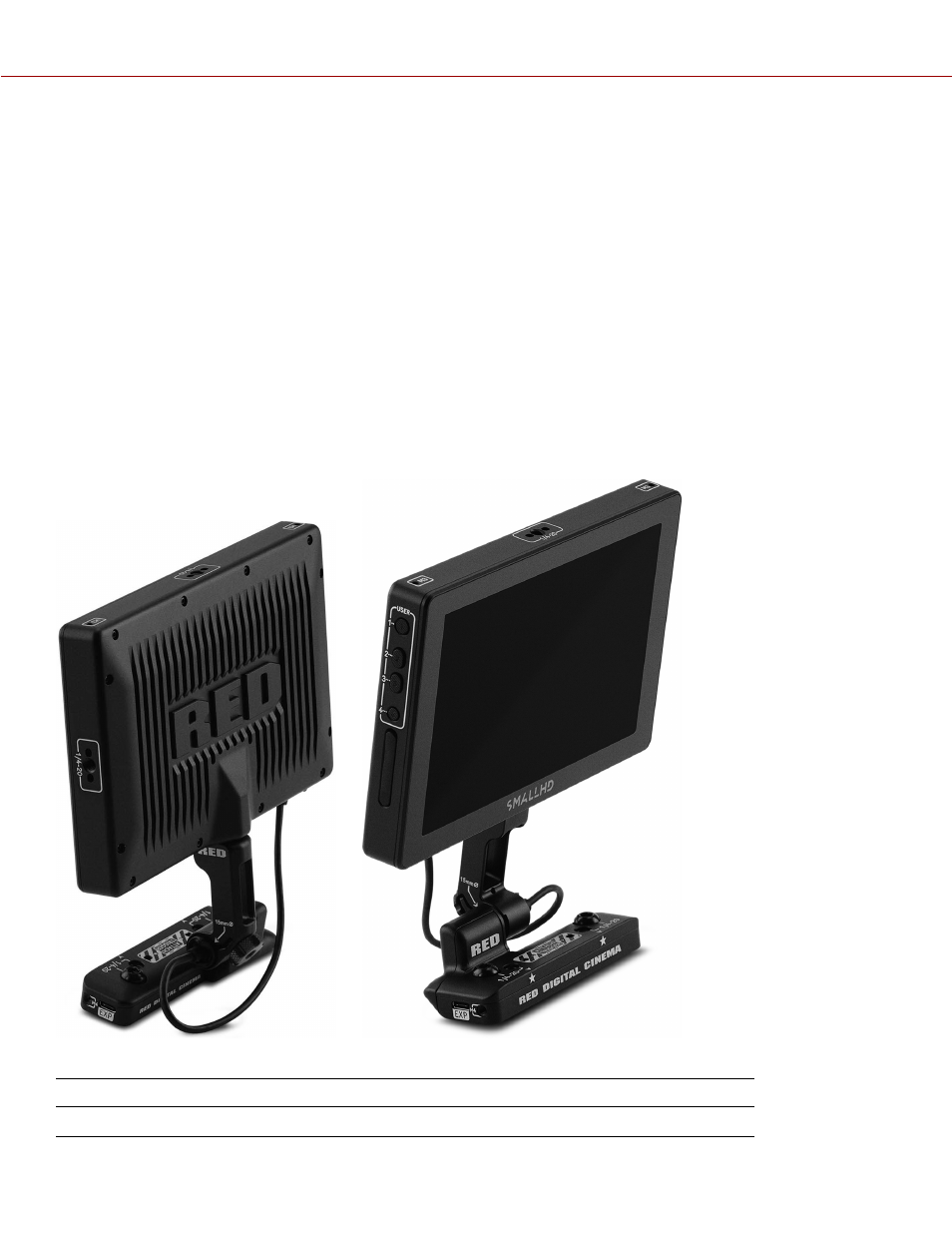

The optional DSMC3 RED ® Touch 7.0" LCD offers an HD viewing experience for recording and viewing footage on the
V-RAPTOR 8K VV camera system. A 1920 x 1200 resolution display panel with peak brightness of 1300 nits and high
pixel density (at 322 ppi), not only provides the optimal experience when viewing footage, but also features 100% DCI-
P3 color gamut coverage for tremendous color accuracy.
This monitor also features full control over the camera through the new responsive menu system powered by SmallHD
PageOS. The features include Waveform, Vectorscope, Histogram, False Color, Color Picker, Pixel Zoom, and more.
The lightweight display mounts to a removable integrated tilt arm with the capability to rotate 180 degrees for versatile
mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor, and the
ability to connect through a single-locking USB-C-style DSMC3 RMI cable for video and power. No additional SDI or
power cables are needed. Refer to
RED Monitor Interface Cable for more information.
NOTE: The USB-C-style DSMC3 RMI cable is not a standard USB-C cable. The DSMC3 RED Touch 7.0" LCD is not
compatible with DSMC
®
, DSMC2
®
, RED RANGER
®
or KOMODO
®
camera systems.
For more information, refer to the DSMC3 RED
®
Touch 7.0" LCD User Guide .
SPECIFICATIONS
ITEM DETAILS
Material Aluminum alloy
