[Company C]
Port 1 is defined as LAN 1 (192.168.30.1) and is connected to the LAN subnet
192.168.30.x / 24.
Port 2 is defined as WAN 1 (121.33.33.33) and is connected to the Internet via
the ADSL modem (ATUR).
This example will be using three units of MH-2300 to create a hub-and-spoke
IPSec VPN network as follows:
For Company A, set as shown below:

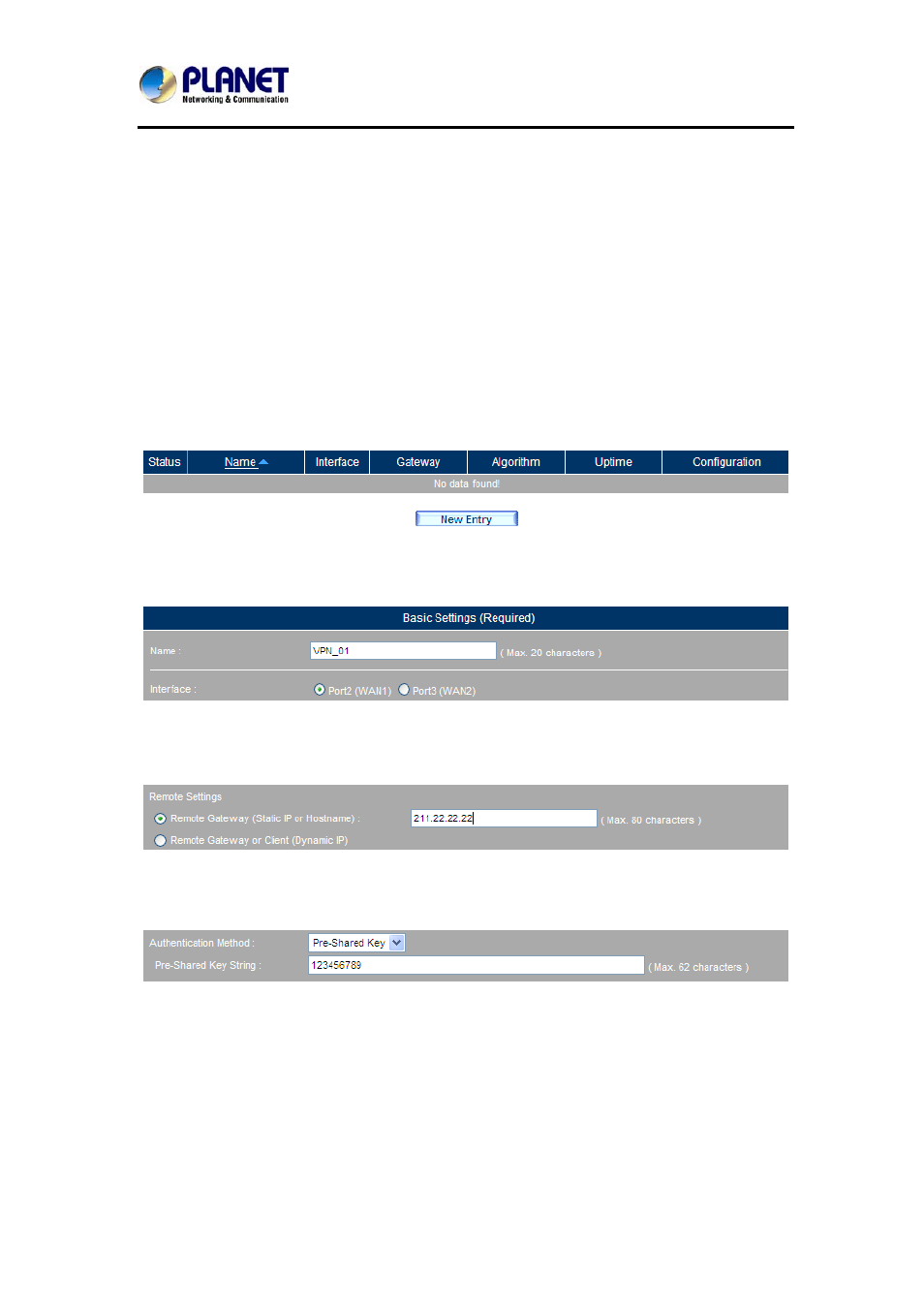

Step1. Go to Policy Object > VPN > IPSec Autokey and then click New
Entry.
IPSec Autokey
Step2. Type VPN_01 in the Name field and then select Port2 (WAN1) for
Interface.
Configuring the Name and the Interface
Step3. Under the Remote Settings section, select the Remote Gateway
(Static IP or Hostname) and then fill out the blank.
Configuring the Static IP or Hostname
Step4. Select Pre-Shared Key for Authentication Method and then enter the
Pre-Shared Key String.
Configuring the Authentication Method
