Web Interface Settings Glossary 97

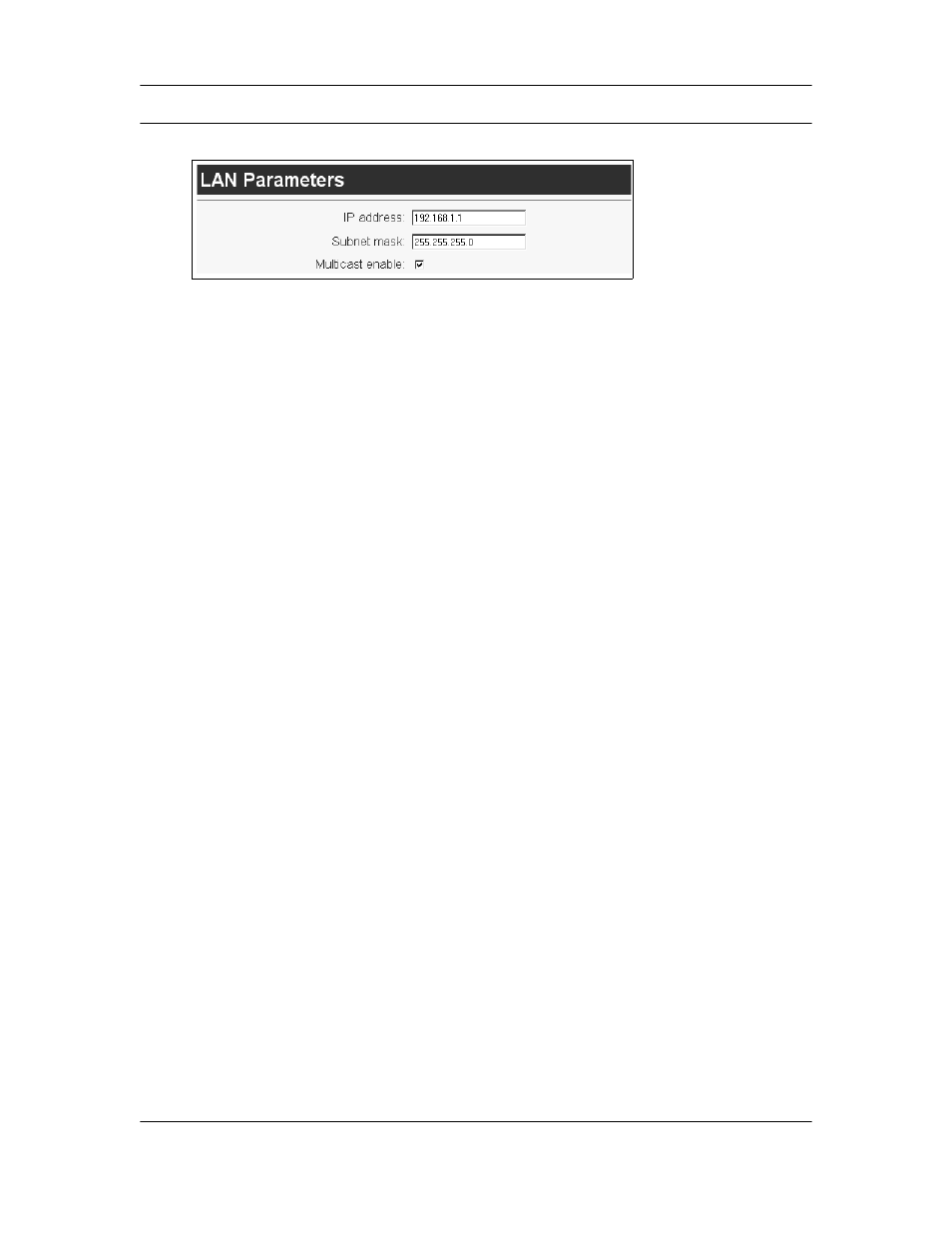

LAN Menu
IP Address
Defines the IP address for the Eicon 1550/1551 on the Ethernet LAN it creates. By
default, this address is set to 192.168.1.1, and you should not change it. However, if
you are installing the Eicon 1550/1551 on an existing LAN, you may need to change
this value so that it is appropriate for your LAN setup.
Subnet Mask
Defines the subnet mask for the Eicon 1550/1551 on the Ethernet LAN it creates.
Default: 255.255.255.0.
Broadcast Enable
Enables/disables support for IP broadcasting.
Default: Disabled.
Multicast Enable
Enables/disables support for IP multicasting.
When disabled, IP multicast datagrams are not forwarded from the external network
onto the internal Ethernet LAN. To allow computers on the internal LAN to subscribe to
services that use IP multicasting as a delivery mechanism, you must enable this
option.
Default: Enabled.
