Eicon Networks 1550 - Manual (Page 39)

Using your Eicon 1550/1551 39

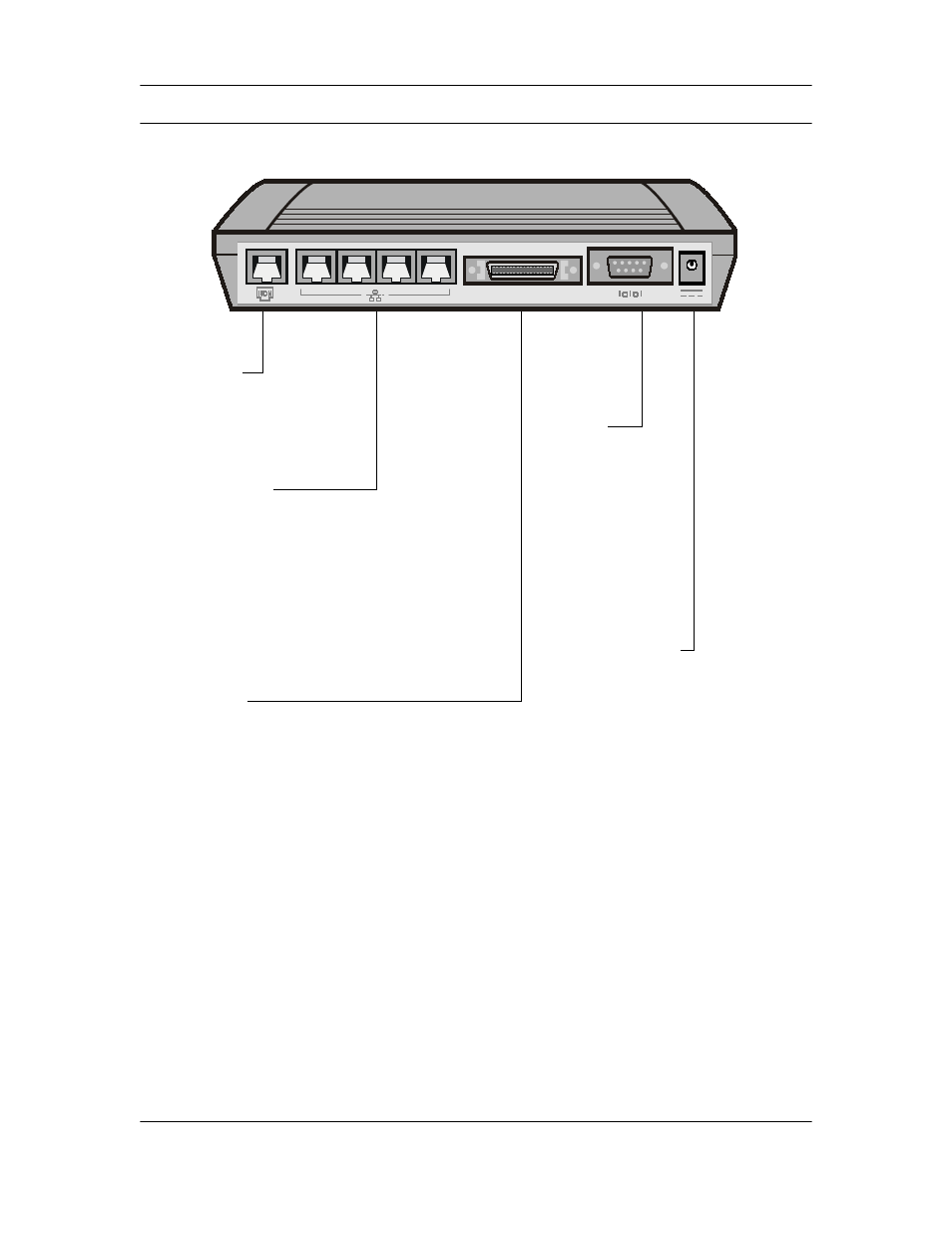

Ports
*For more information on using the Console Port, refer to the “Command Line Interface
Reference Guide” located on the Eicon 1550/1551 CD-ROM.
1 2 4 3 VHSI
ISDN Port
Available with the Eicon 1551
only. Can be used as a backup
connection in case the WAN
connection is unavailable.
Console
Port*
Used for
managing and
configuring the
Eicon 1550/1551
Power Connector
Used for connecting the
Eicon 1550/1551 to an
electrical outlet.
Ethernet Ports
Used for connecting the
Eicon 1550/1551 to a computer or LAN.
A straight-through cable (blue cable) is
used for connecting directly to a
computer.
A yellow crossover cable (not included)
is required to connect the Ethernet port
directly to a network hub.
VHSI Port
Used for connecting the Eicon 1550/1551
to the external network.
