Security
58
To define a default NAT server, enter the IP address of the device that should receive
these datagrams into the ‘Default NAT server’ field on the IP Parameters panel.
Enabling NAT for a particular profile
NAT can be enabled or disabled for each profile. By default, NAT is disabled for each
profile. To enable NAT for a particular profile:
1.
Click ‘Connection’ from the main menu.
2.
Select the desired profile.
3.
Scroll down to the IP options area.
4.
Select ‘NAT Enable’.
5.
Click ‘Save’, then ‘Reset Device’.
Note: The Eicon 1550/1551 handles traffic with the following protocols: HTTP, Telnet, TFTP, ECHO
(UDP port 7), and SNMP. Only traffic that does not contain these protocols will be forwarded to the
default NAT server. To forward the aforementioned protocols you must define a NAT static mapping for
each one.

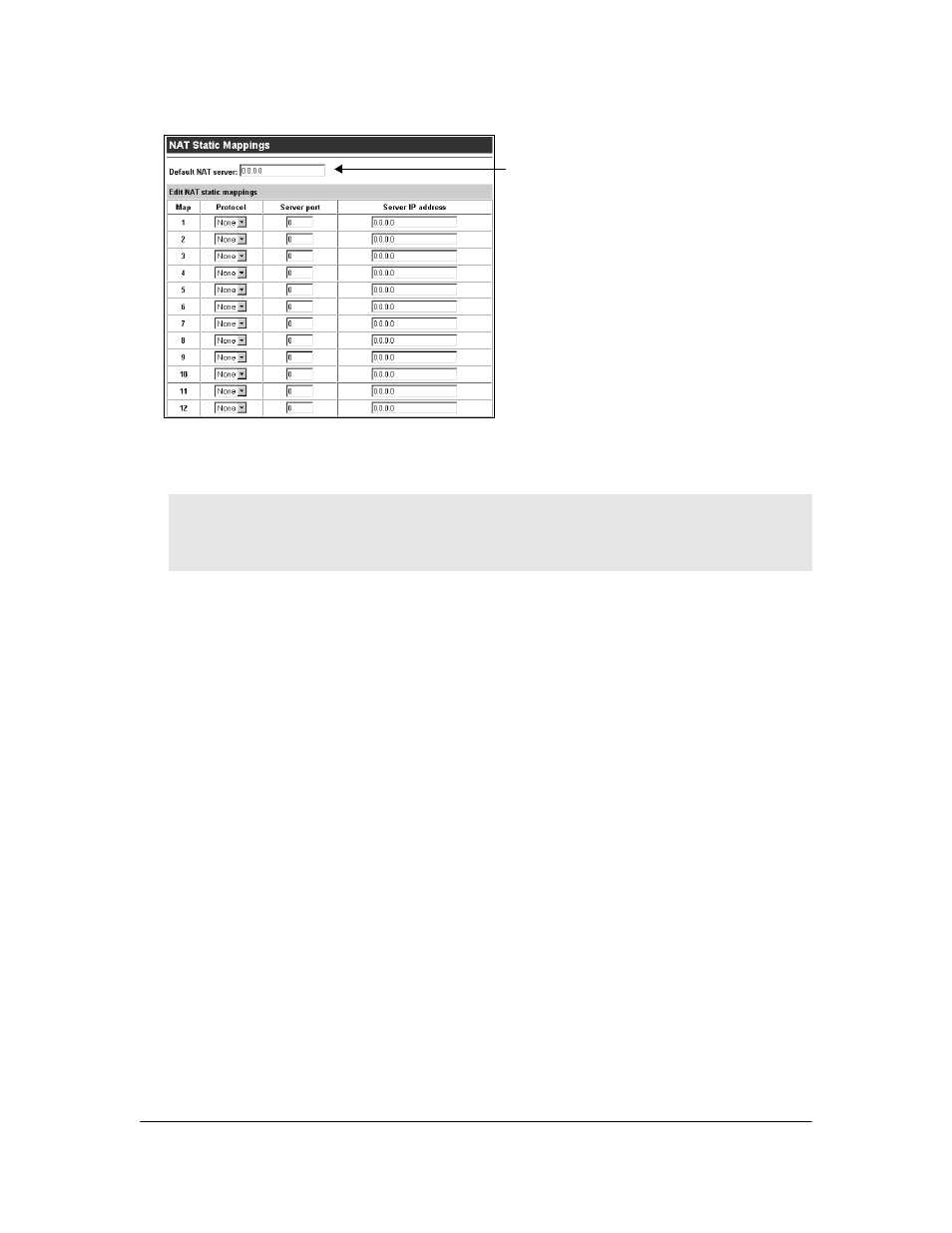

‘Default NAT
Server’ field
