Initial start-up SMA Solar Technology AG
50 WB36TL_50TL-IEN102011 Installation Guide
6 Initial start-up
1. Check the following requirements before commissioning:
– Correct mounting and correct connection of the inverter
– The Windy Boy Protection Box (WBP-Box-500-11) is installed between
small wind turbine system and inverter
– Unnecessary DC inputs are closed with the corresponding DC plug connectors and sealing
plugs
– The line circuit breaker is laid out correctly
– Correct country configuration
– Correct grounding of the small wind turbine system in accordance with the instructions of the
manufacturer
– All housing passages are closed

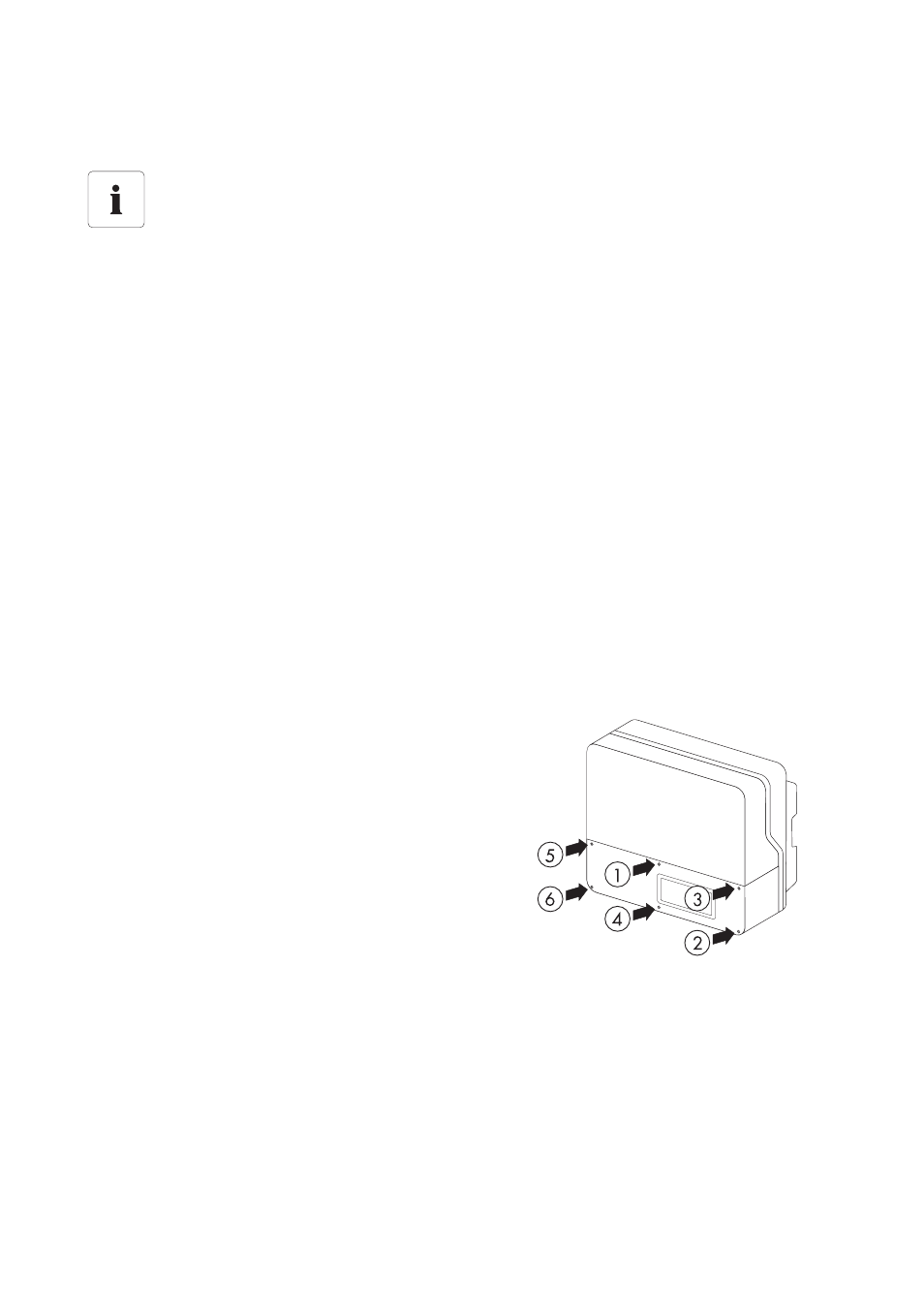

2. Lock the bottom housing lid with the 6 screws.
Tighten the screws with 1.4 Nm torque in the order
shown in the figure on the right.
Self test in accordance with DK 5940, Ed. 2.2 for initial start-up
(applies to Italy only)
The Italian DK 5940 standard requires that an inverter must only be connected to the
public grid if the disconnection times for overvoltage, undervoltage, minimum frequency
and maximum frequency have been checked.
If you have configured country standard DK5940E2.2, start the self-test as described in
section 6.1 ”Self-test according to DK 5940, ED. 2.2 (for Italy only)” (page 52). The test
takes approx. 3 minutes.
