432 12 MOD Functions
12.8 Ether
n
et Int
e
rf
ace
12.8 Ethernet Interface
Introduction
The TNC is shipped with a standard Ethernet card to connect the
control as a client in your network. The TNC transmits data via the
Ethernet card with
„ the smb protocol (server message block) for Windows operating
systems, or
„ the TCP/IP protocol family (Transmission Control Protocol/Internet
Protocol) and with support from the NFS (Network File System).
Connection possibilities
You can connect the Ethernet card in your TNC to your network
through the RJ45 connection (X26, 100BaseTX or 10BaseT), or directly
to a PC. The connection is metallically isolated from the control
electronics.
For a 100BaseTX or 10BaseT connection you need a Twisted Pair
cable to connect the TNC to your network.
The maximum cable length between TNC and a node
depends on the quality grade of the cable, the sheathing
and the type of network (100BaseTX or 10BaseT).

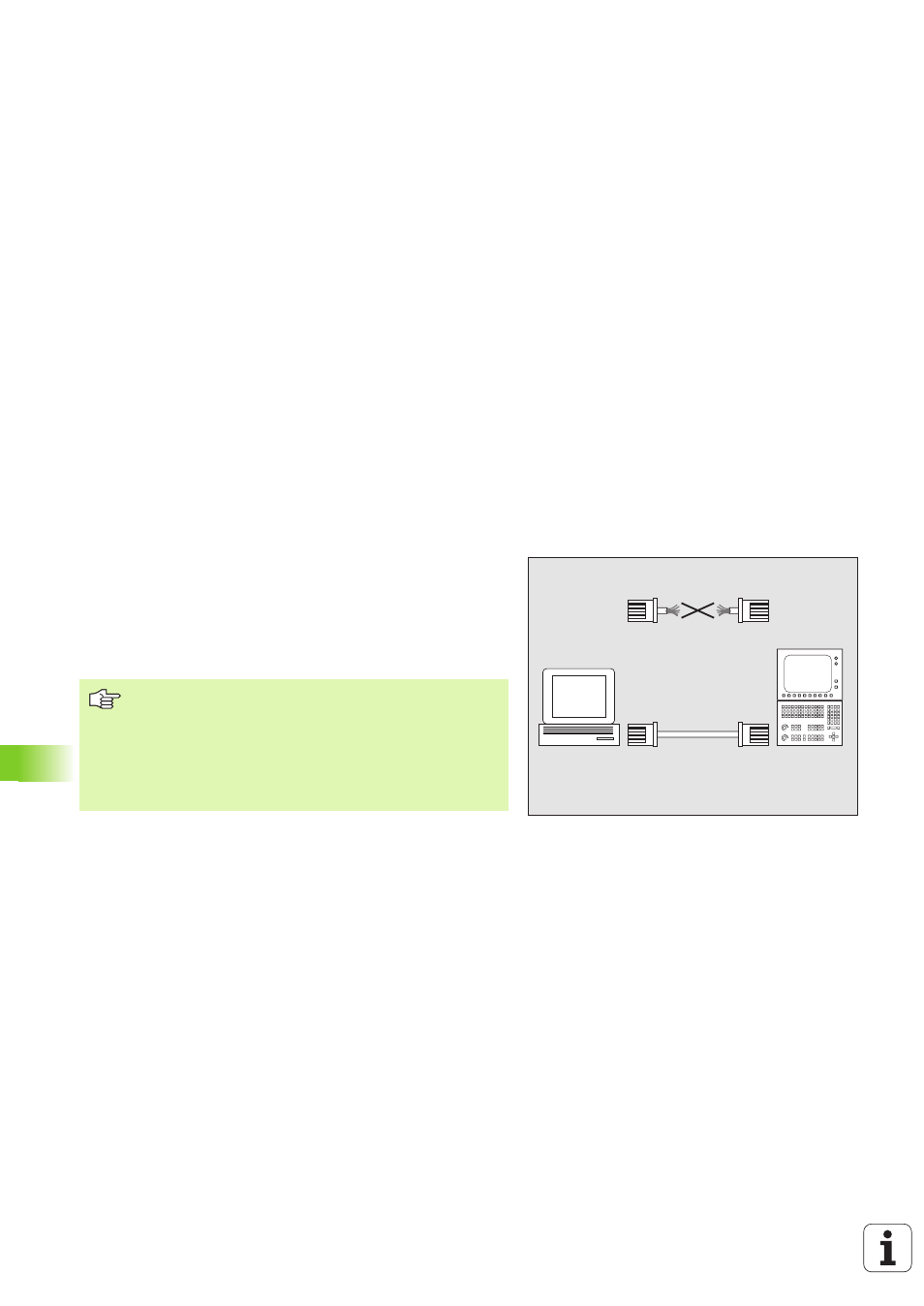

No great effort is required to connect the TNC directly to a
PC that has an Ethernet card. Simply connect the TNC
(port X26) and the PC with an Ethernet crossover cable
(trade names: crossed patch cable or STP cable).
PC
TNC
10BaseT / 100BaseTx
