8. If you do not need trunks, such as on a one-switch system, skip to the next step in this procedure.
If you need trunks, such as on a two-switch system with ISLs, do the following:
a) Select (Ctrl + Click) the trunked ports. Typically the trunked ports are at the bottom of the
list and are labeled Trk1.
b) Click Modify Selected Ports .
If prompted, log in as administrator.

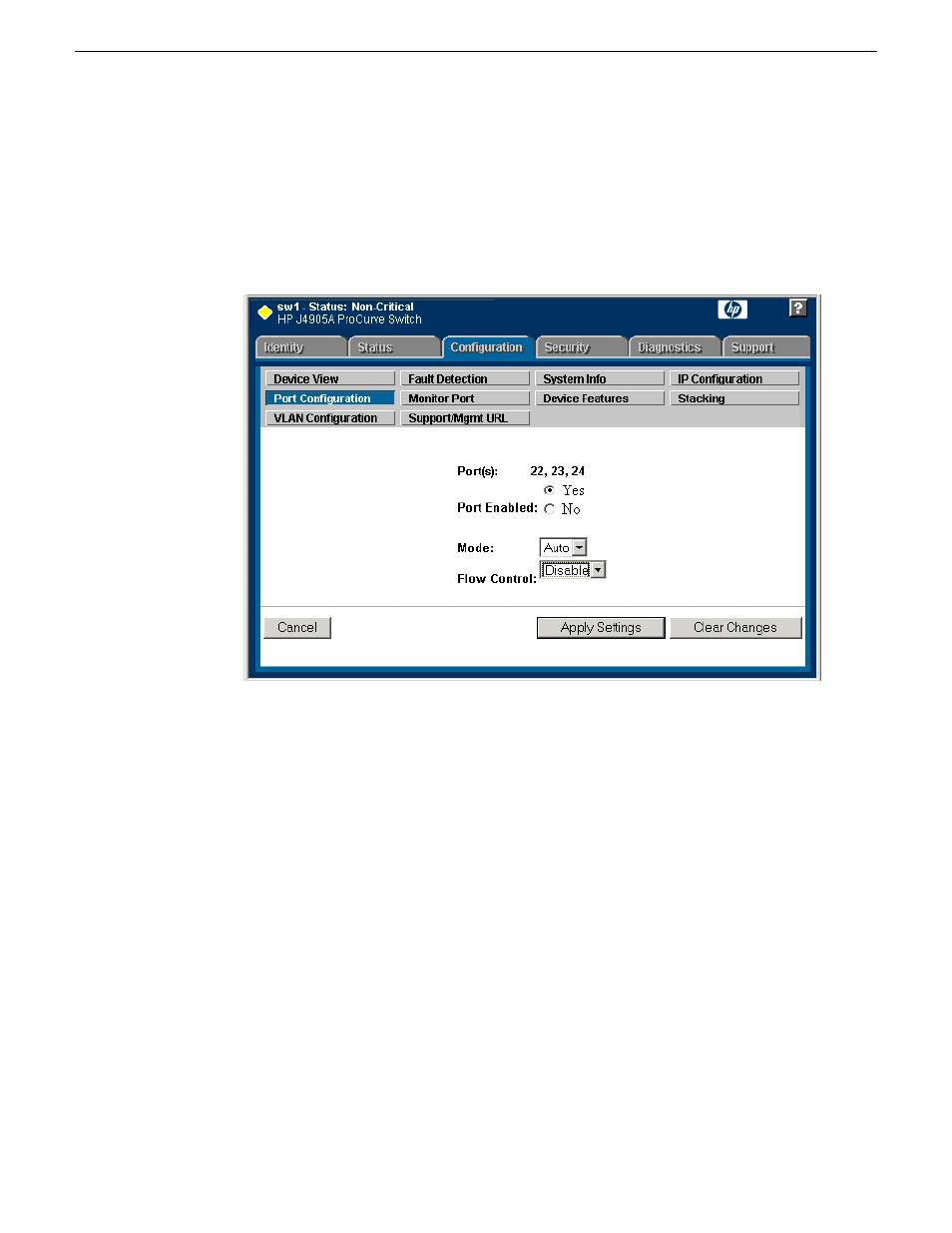

c) For the trunked ports, set Port Enabled to Yes . On some switch models, some ports are disabled
by default, so make sure you enable them. Leave Mode as default of Auto .
d) Set Flow Control as follows:
Set to Disable .
e) Click Apply Settings .
9. On the Port Configuration page, do one of the following:
• If you do not have trunks, select all ports.
• If you have trunks, select the remaining ports (the ports not trunked).
02 February 2012 K2 SAN Installation and Service Manual 69
Setting up the K2 SAN infrastructure
