• Assign ports to zones
1. In SANsurfer Switch Manager, expand the tree view and select a Fibre Channel switch. For the
purposes of this procedure, this switch is designated as switch A.
The Faceplate display opens.

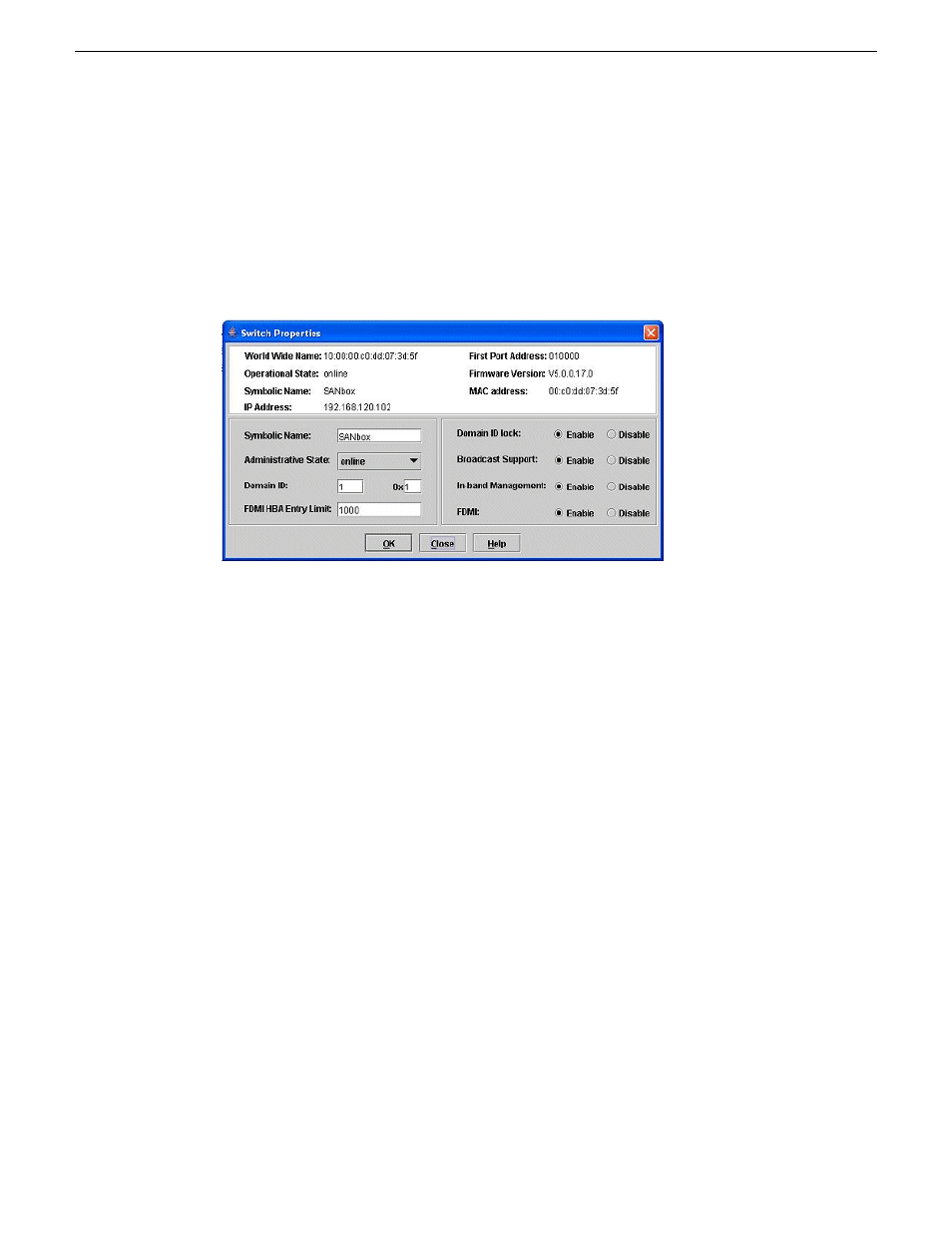

2. Open the Switch menu and select Switch Properties .
The Switch Properties dialog box opens.
3. Set Domain ID to 1 .
4. Set Domain ID lock to Enable .
5. Click OK .
SANsurfer Switch Manager updates the switch. When a message box reports status complete,
click
OK .
The Switch Properties dialog box closes.
6. Open the Zoning menu, and select Edit Zoning to open the Edit Zoning dialog.
