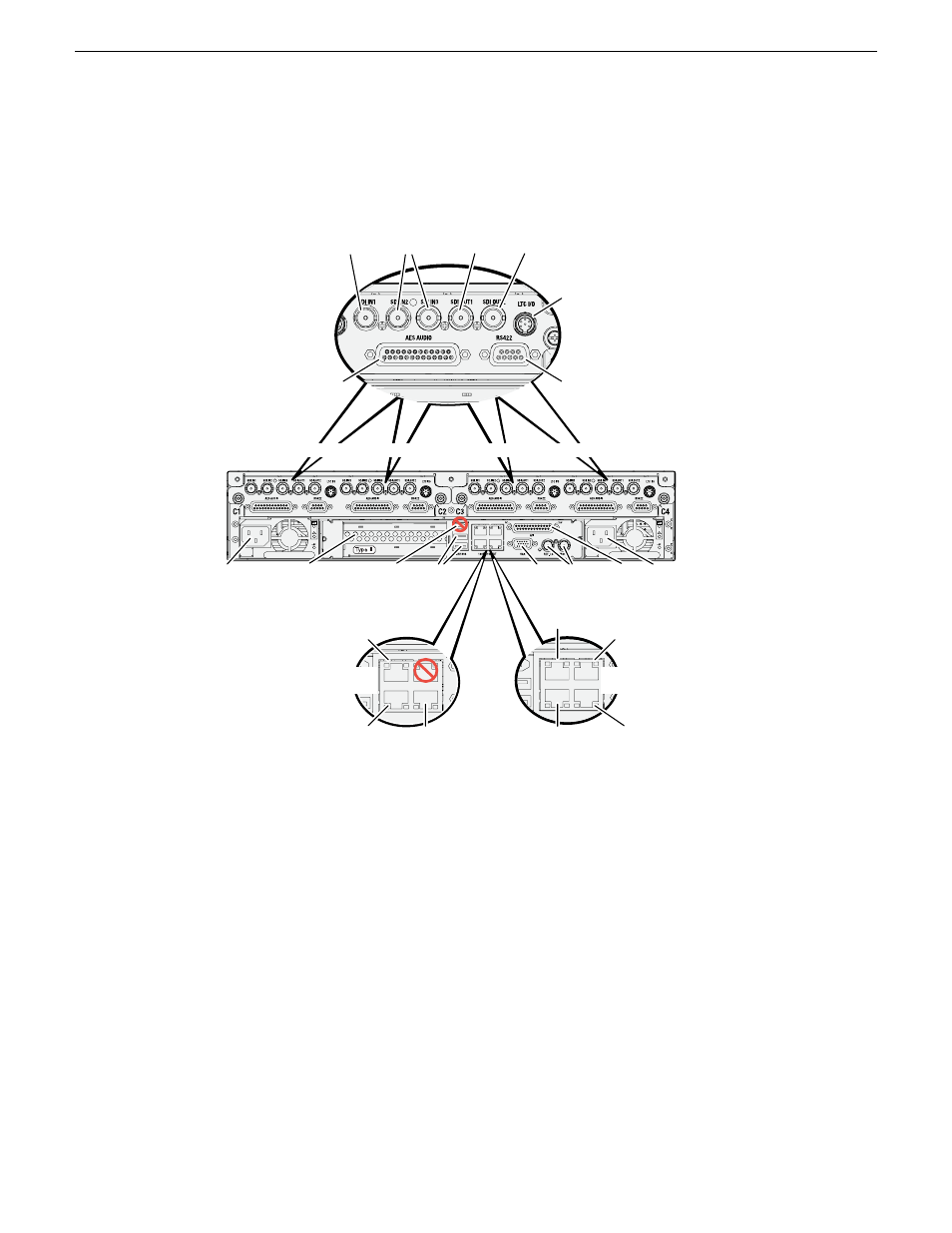

K2 Summit first generation models rear panel
RS-422
SDI video in and out supports embedded audio.
(connect via optional
multi-connector cable)
LTC in/out
AES audio
Power Power
Port 1: Control
Port 2: FTP/Streaming
Control Connection #1
Control Connection #2
Media Connection #1
Port 4: Control
(Optional) Port 1: Control A
Control Connection #1
Control Connection #2
Media Connection #1
Port 4: Control B
for redundant SAN
Port 2: Media (iSCSI) A
Media Connection #2
Port 3: Media (iSCSI) B
for redundant SAN
IEEE
1394
(Do not
use)
Optional Fibre Channel
card for connection to
direct-connect storage
or shared (SAN) storage
Reference
Loop Thru
VGA
monitor
USB
(keyboard,
mouse)
GPI
Channel 1
Stand-alone direct-connect
or internal storage
Shared (SAN)
storage
Channel 2 Channel 3 Channel 4
Control Connections are teamed
and share the same IP address c
c c
c c
SDI in SDI out SDI monitor out. Channel Flex a a a a, b
Supports
Channel Flex Suite,
which requires
AppCenter
Elite license a Supports Super Out,
which requires
AppCenter Pro or
Elite license b
