CDM-740 Advanced Satellite Modem Revision 0
Ethernet Management MN-CDM740
6–6
6.5.4 Web Server Page Descriptions
6.5.4.1 Home (Splash) Page

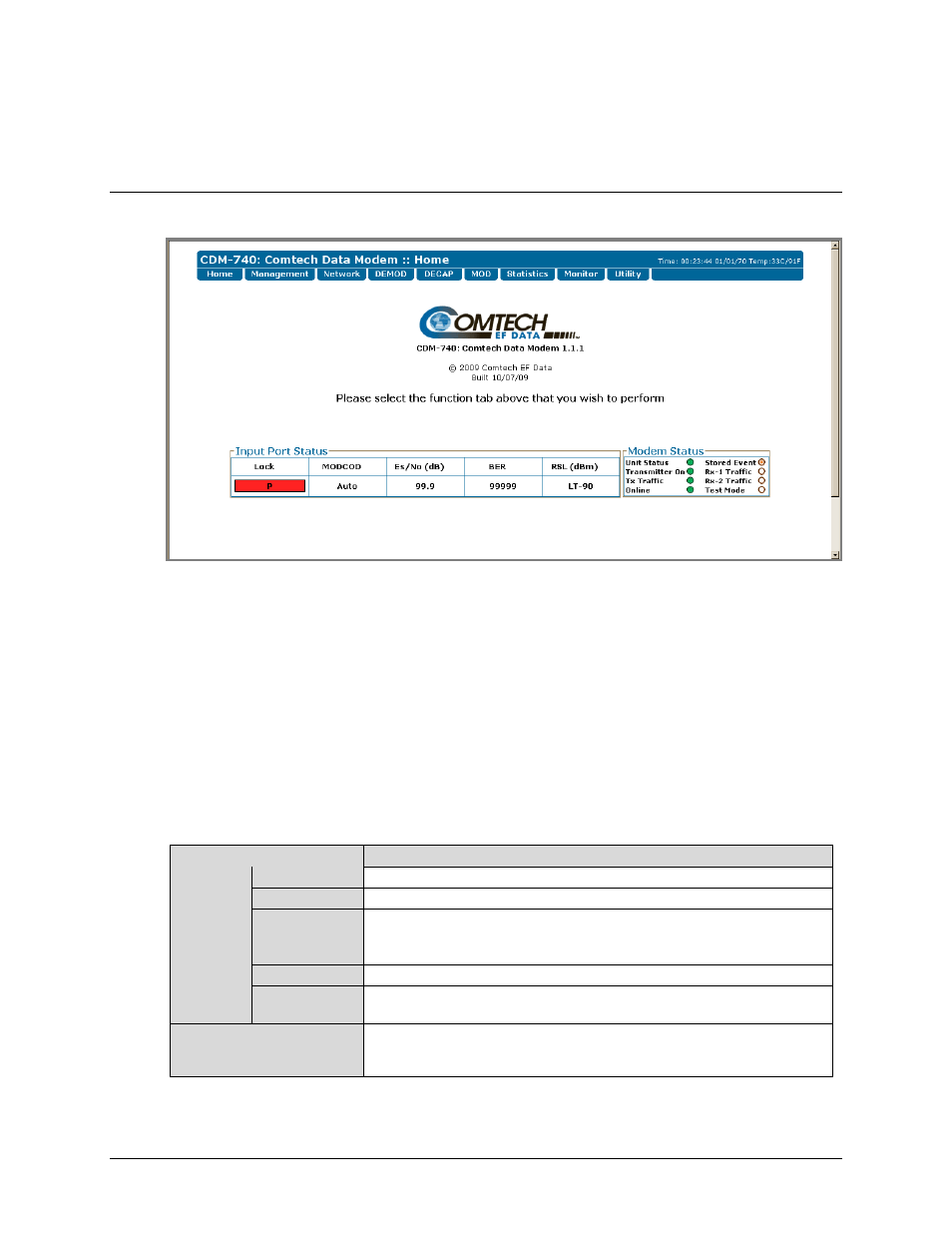

Figure 6-1. CDM-740 Advanced Satellite Modem Home (Splash) page
Once the valid User Name and Password is accepted, the user will see the CDM-740 Web Server
Interface “splash” page. From this top level menu, the user has access to nine (9) navigation tabs:
• Home • MOD (Modulator)
• Management • Statistics
• Network • Statistics
• DEMOD (Demodulator) • Monitor
• DECAP (Decapsulator) • Utility
Typical Page Features
Many of the pages in the CDM-740 Web Server Interface feature a “virtual panel” providing
‘real-time’ information as follows:
Column Function
Input
Port
Status
Lock Displays the LOCK STATUS of the demodulator as Locked or Unlocked.
MODCOD Displays the active demodulation type and FEC rate
Es/No (dB)
Displays the value of Es/No calculated by the demodulator. The value
referred to here is the energy per symbol bit (Es), divided by the noise
spectral density (No).
BER Displays an estimate of the corrected Bit Error Rate.
RSL (dbM)
Displays the dBm reading indicating the signal level of the desired receive
carrier.
Modem Status
This display emulates the LED Indicator array on the CDM-740 Front
Panel, and provides the user with a ‘heads-up’ reference to the unit’s
active operational status.
Click any tab to continue.
