CDM-740 Advanced Satellite Modem Revision 0
Ethernet Management MN-CDM740
6–26
Current Tx (Mbps): Most recent transmitted data rate (in megabits per second).
Current Rx (Mbps): Most recently received data rate (in megabits per second).
Maximum Tx (Mbps): Peak transmitted data rate (in megabits per second).
Maximum Rx (Mbps): Peak received data rate (in megabits per second).
Click [Clear GigE Stats] to delete all existing entries from the GE1 or GE2 Statistics page.
6.5.4.7.4 Statistics | Modulator Page

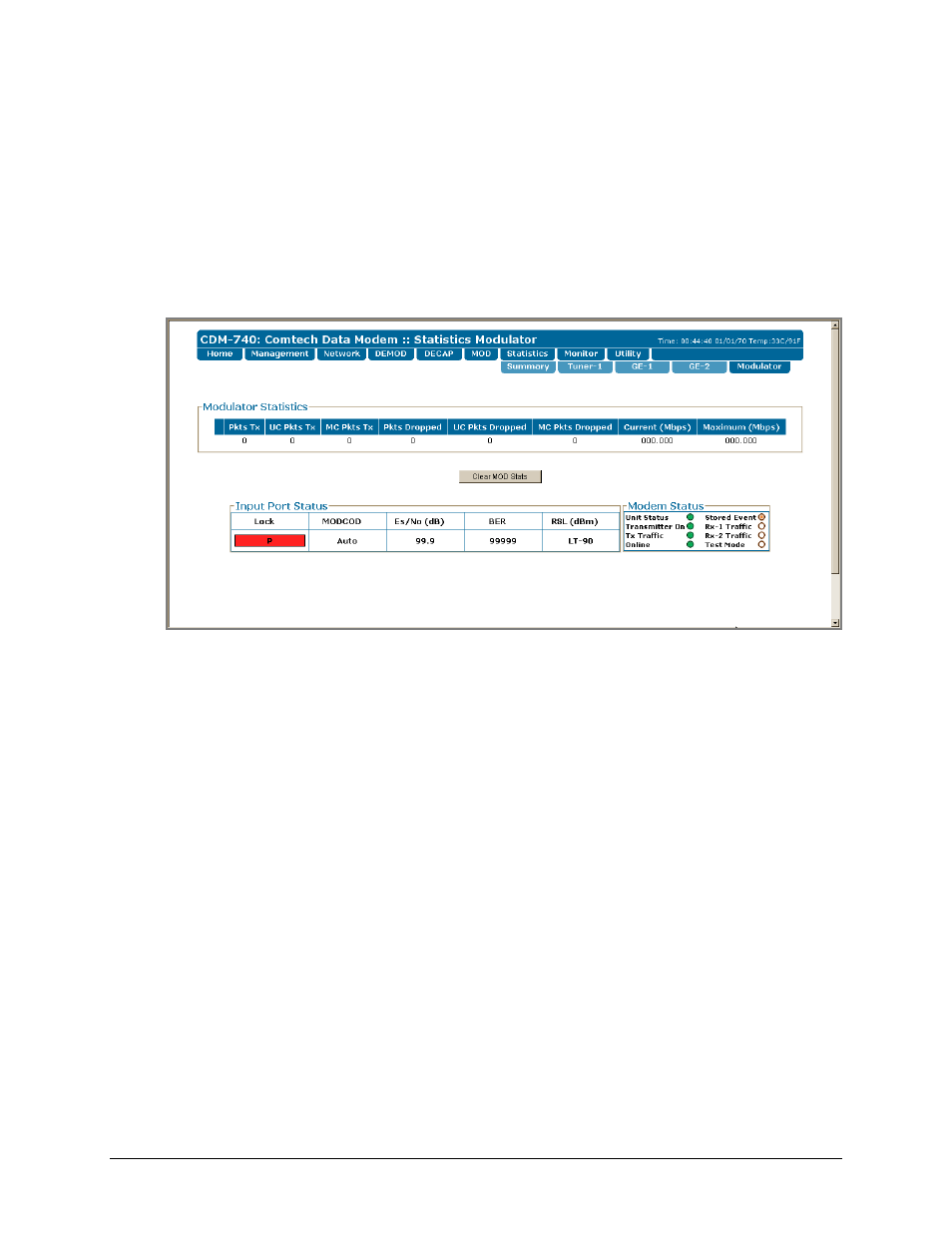

Figure 6-15. Statistics | Modulator page
The ‘Statistics | Modulator’ page (Figure 6-15) provides the user with a read-only status
windows pertaining to the active operational statistics for the modulator.
Unless noted otherwise, information is provided in each table as follows:
Pkts Tx: Packets transmitted.
UC Pkts Tx: Unicast packets transmitted.
MC Pkts Tx: Multicast packets transmitted.
Pkts Dropped: Packets dropped.
UC Pkts Dropped: Unicast packets dropped.
MC Pkts Dropped: Multicast packets dropped.
Current (Mbps): Most recent symbol rate (in megabits per second).
Maximum (Mbps): Peak symbol rate (in megabits per second).
Click [Clear MOD Stats] to delete all existing entries from the Modulator Statistics page.
