CDM-740 Advanced Satellite Modem Revision 0
Ethernet Management MN-CDM740
6–24
6.5.4.7.2 Statistics | Tuner-1 Page

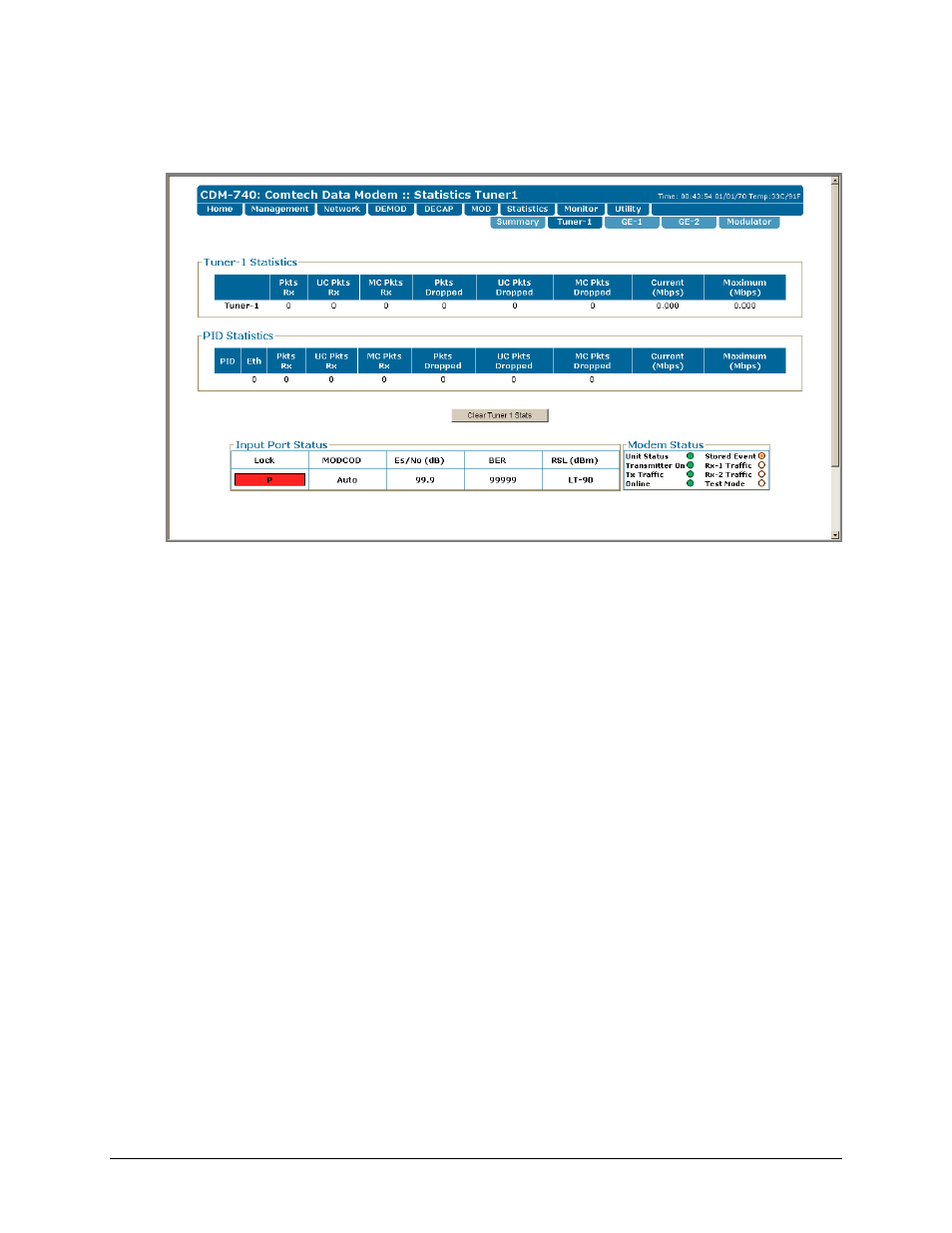

Figure 6-13. Statistics | Tuner-1 page
The ‘Statistics | Tuner-1’ page (Figure 6-13) provides the user with a read-only status windows
pertaining to the active operational statistics for Tuner-1 and active PIDs.
Unless noted otherwise, information is provided in each table as follows:
PID (PID Statistics table only): Identifies the user-configured PID.
Eth (PID Statistics table only): Identifies the Ethernet Interface ID (Port 1 or 2) associated
with each user-configured PID.
Pkts Rx: Packets received.
UC Pkts Rx: Unicast packets received.
MC Pkts Rx: Multicast packets received.
Pkts Dropped: Packets dropped.
UC Pkts Dropped: Unicast packets dropped.
MC Pkts Dropped: Multicast packets dropped.
Current (Mbps): Most recent symbol rate (in megabits per second).
Maximum (Mbps): Peak symbol rate (in megabits per second).
Click [Clear Tuner 1 Stats] to delete all existing entries from the Tuner-1 Statistics page.
