Ateis Studio 378
© 2012 ATEÏS

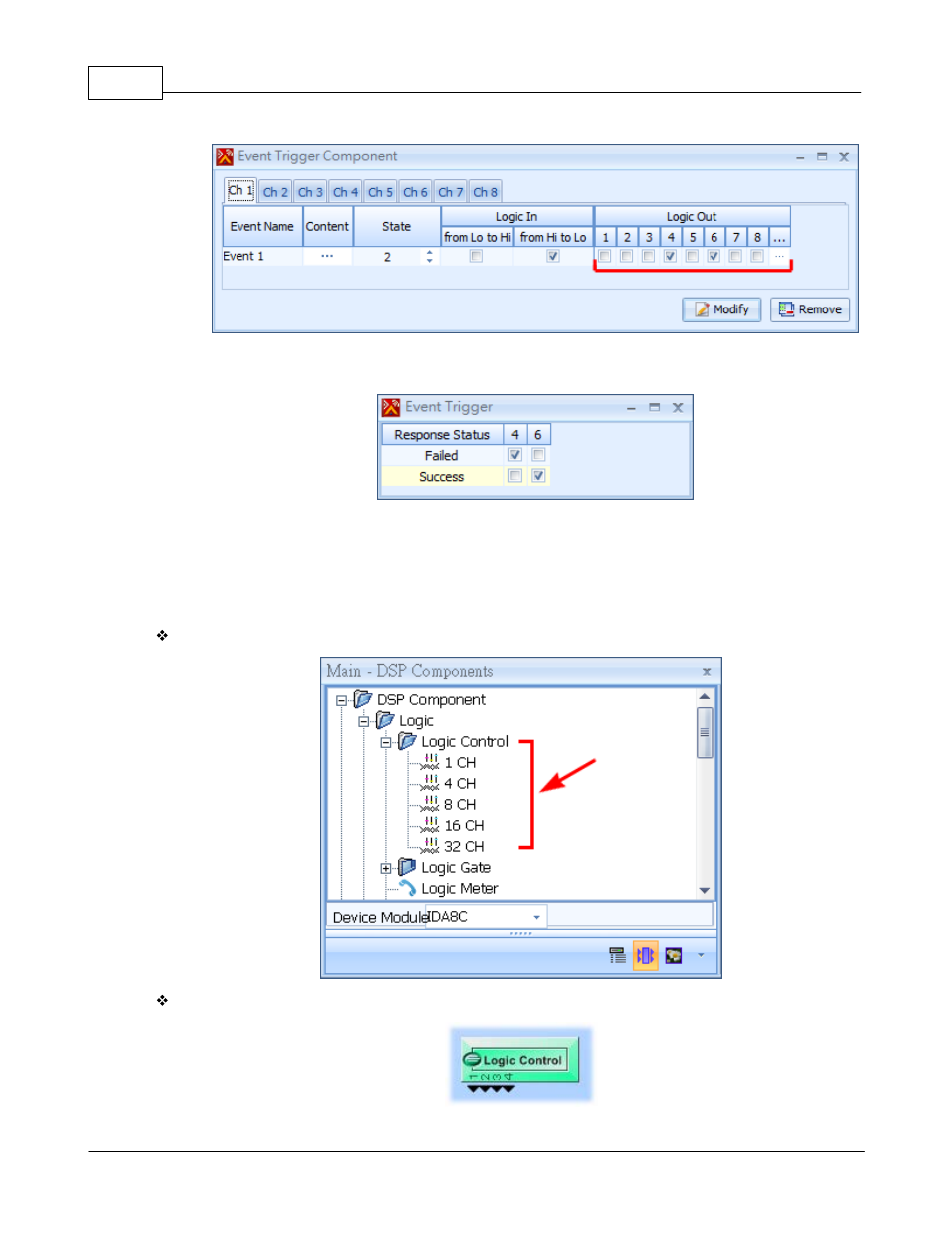

In above figure, the logic output channel 4 and 6 are selected. to detail settings click the grid
cell [...]:
In above figure, the settings means when Event 1 is Failed, output 4 will be 1 and output 6 will
be 0, and when Event1 is successfully executed the output 4 will be 0, output 6 will be 1.
6.12.5 Logic Control
Component Template
Component Appearance
