MANUAL:
SECTION 3
Telemetry (Telemetry Display)

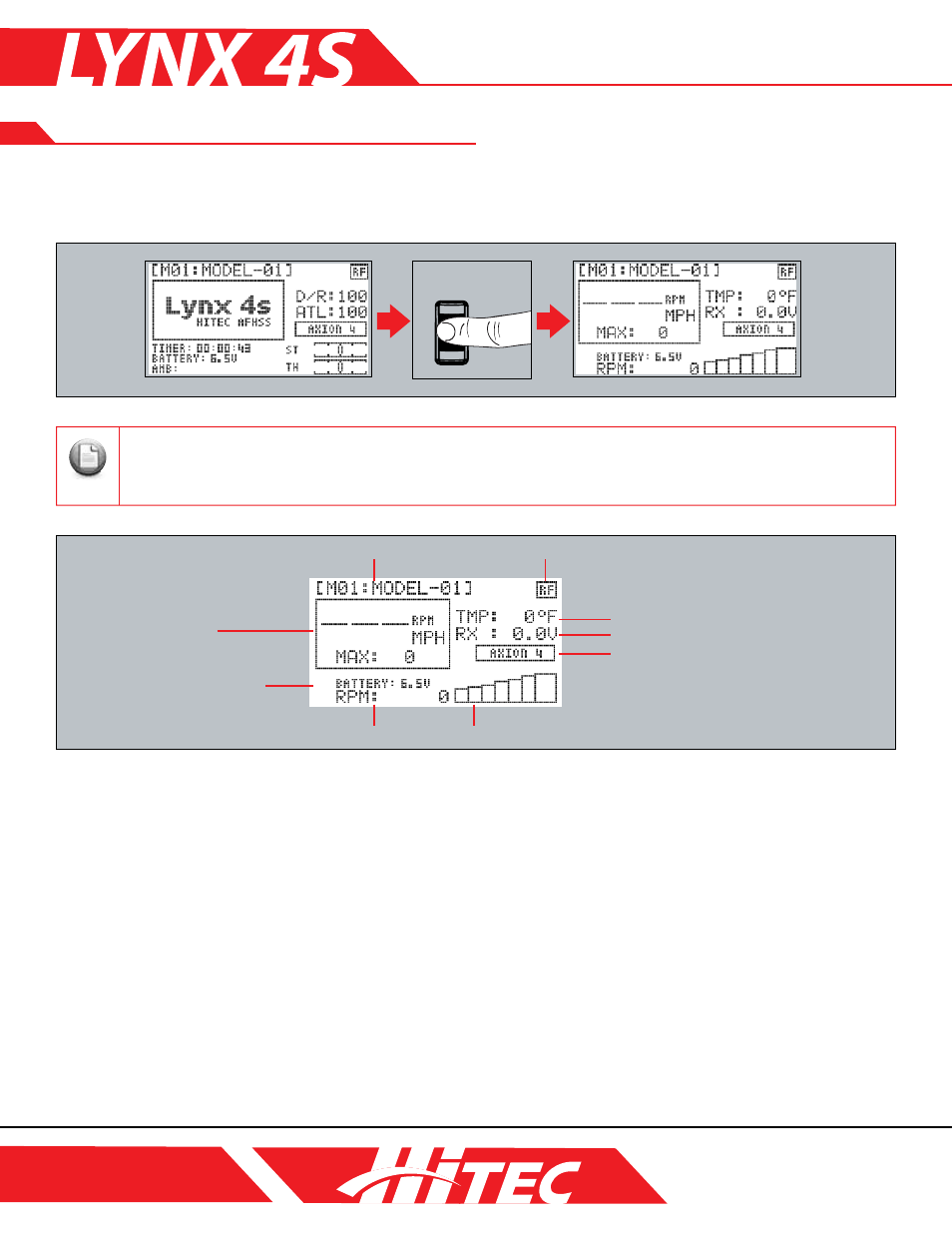

The main screen always displays certain information throughout the operation of your model. The information
on-screen will change according to the data output from each sensor.
Telemetry data appears when scrolling the main dial button up or down from the main screen.
Note
Tip Tip
Tip
1. Model Name: Shows the current model name and number.
2. Speed: Shows speed measured from the GPS or RPM sensor.
3. TX Battery Voltage: Shows the voltage of the transmitter battery.
4. RPM: Shows RPMs measured from the RPM sensor.
5. Throttle Trigger Gauge: Shows the control value of the trigger.
6. Receiver: Shows receiver type and the status of the boost function.
7. Voltage Sensors: Shows the voltage value as measured by the voltage sensor.
8. Temperature Sensors: Shows temperature value as measured by the temperature sensor.
9. Transmission: Shows the status of the transmission.
[Scroll]
1. Model Name 9. Transmission
8. Temperature Sensor
7. Voltage Sensor
6. Receiver
2. Speed
3. Voltage of the
TX Battery
4. RPM 6. [T2] Throttle Trim
