HITEC Lynx 4S - Manual (Page 32)

P32
MANUAL:
SECTION 2
Lap List (Lap Time Listings cont.)
The Lap List will be deleted upon restarting the Lap Timer or powering off.
Note
Tip Tip
Tip

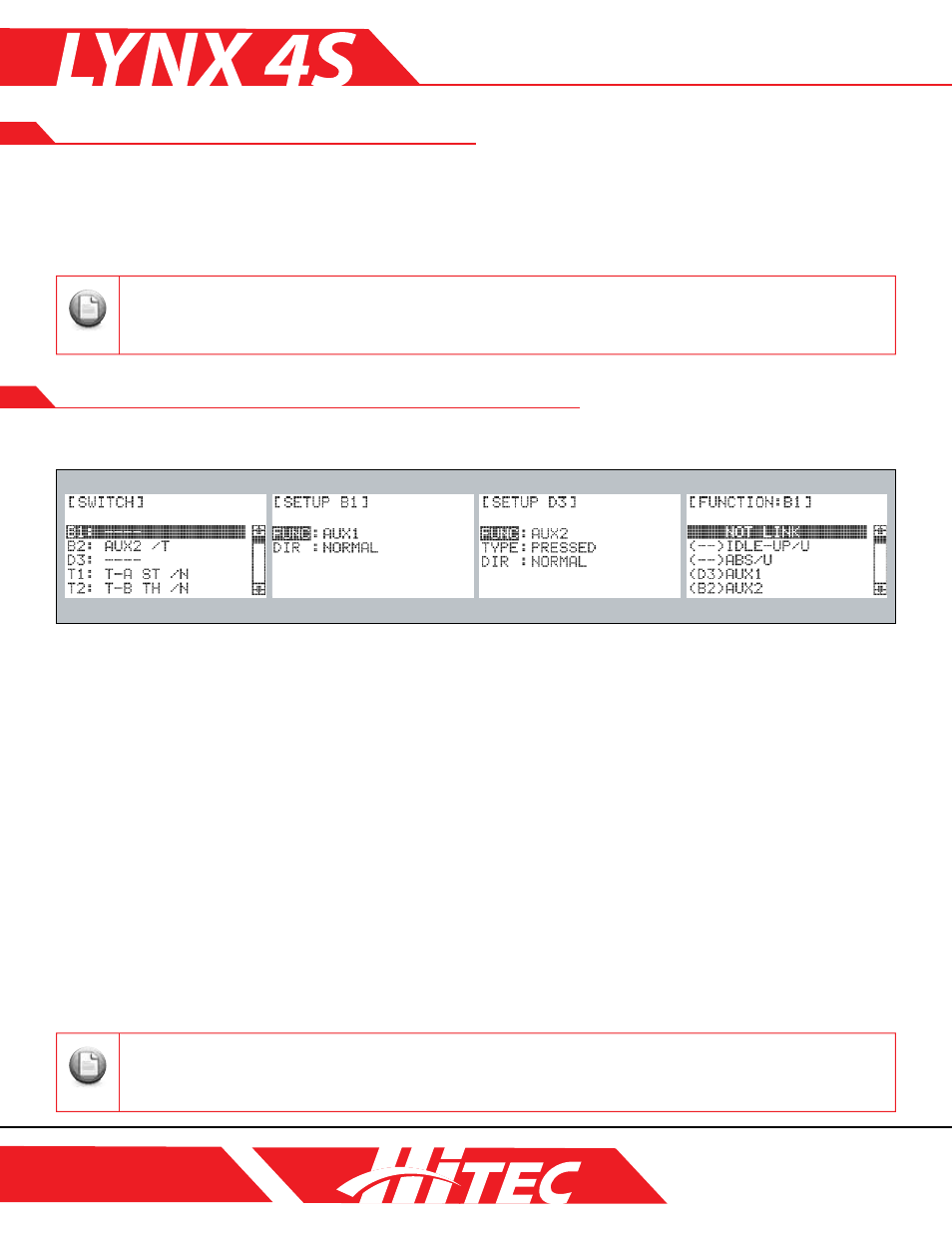

Switch (Switch Functions, Assignments & Settings)
All switch functions and dials can be assigned under the Switch menu located on the Set 2/2 tab.
FUNC: Set the desired function that corresponds to your switches from a list of options.
DIR: May be set to normal or reverse or to ON/OFF for an assigned switch.
TYPE: An option for certain switches that defines the way to use them, either pressed or toggle.
TOGGLE: To activate the function, “toggle” the assigned switch.
PRESSED: If “pressed” is defined as the method of activation, pressing the switch will activate the
corresponding function.
3SRATE: Press the switch to change the value for Minimum, Neutral, or Maximum rotation.
1. Press the Main Dial button to access the function menu.
2. Select ‘SWITCH’ under the SET 2/2 tab.
3. Scroll through the options with the Main Dial button. When the desired switch is highlighted, click the button
to set up the parameters of that function.
4. Double check your switch buttons to ensure they were appropriately linked to the desired function before
operating your model.
There can only be one function assigned to each switch.
Note
Tip Tip
Tip
1. Press the Main Dial button to access the function menu.
2. Select ‘Timer’ under the SET 2/2 tab.
3. Check the Lap List by clicking the Main Dial over the highlighted option.
