Main Display
The main display shows general information regarding the operation of the Lynx 4S with your R/C models. The
display is customizable by the user.
1. Model Name:
Indicates the current operating model name and number.
2. Multi-Screen:
Option to change the display to show logo, name of user, timer, etc.
3. Timer:
Total length of usage time after the power has been turned on.
4. Battery:
Displays the voltage of the radio’s battery.
5. AMB Number:
Personal transponder number, which identifies your model when racing against other models and allows you to
read your car’s timing and scoring output.
6. [T2] Throttle Trim:
Shows current throttle trim value. Default position is linked with the T2 switch.
7. [T1] Steering Trim:
Shows the current steering trim value. Default position is liked with the T1 switch.
8. Receiver Type:
Shows receiver detail information as well as the status of the BOOST function.
9. [D2] ATL_Setting:
Shows current ATL settings. Default position is linked with the D2 dial.
10. [D1] Dual Rate Value:
Shows the current dual rate value. Default position is linked with the D1 dial.
11. Signal:
Shows the radio’s signal or frequency.

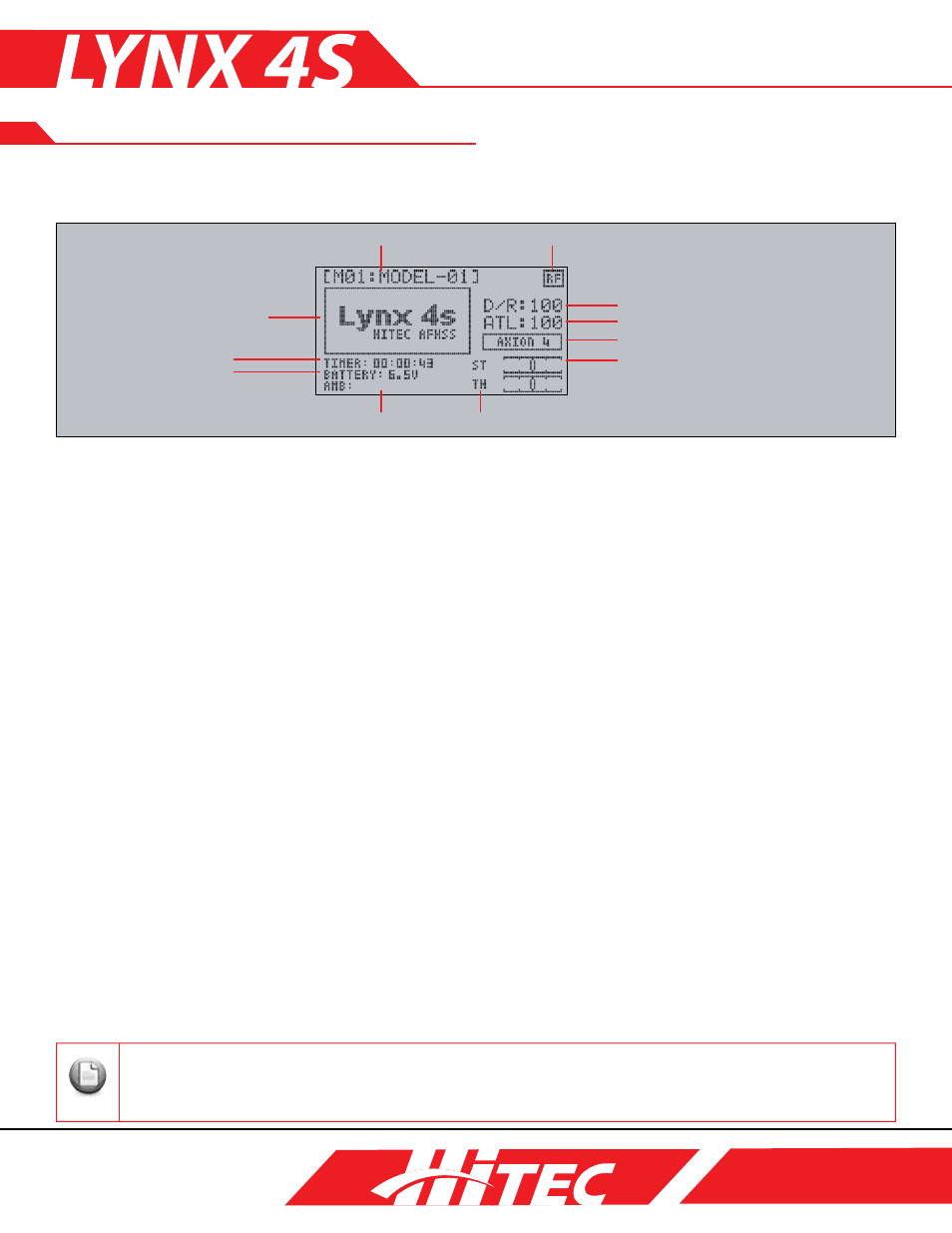

1. Model Name 11.Signal
10. [D1] Dual Rate Value
9. [D2] ATL_Setting
8. Receiver Type
7. [T1] Steering Trim
2. Multi-Screen
3. TImer
4. Battery
5. AMB Number 6. [T2] Throttle Trim
Information on the main display may be saved to memory.
