SECTION 1
The following procedure requires a Phillips screwdriver and 2.4mm hex wrench.
Note
Tip Tip
Tip
1. Connect the TX wire to the Steering Gimbal unit by passing the wire through the hole of the extension adapter.
2. Affix the extension adapter to the Lynx 4S by inserting 3 20mm hex bolts into the face of the adapter using
your 2. 5mm hex wrench.
3. Attach the wheel unit using the 3 28mm screw bolts.
4. Attach the steering wheel using the 2.6X12mm screw bolt.
5. Snap the steering wheel cover back in place.
Be mindful when handling the sharp ends of the wire.
Note
Tip Tip
Tip

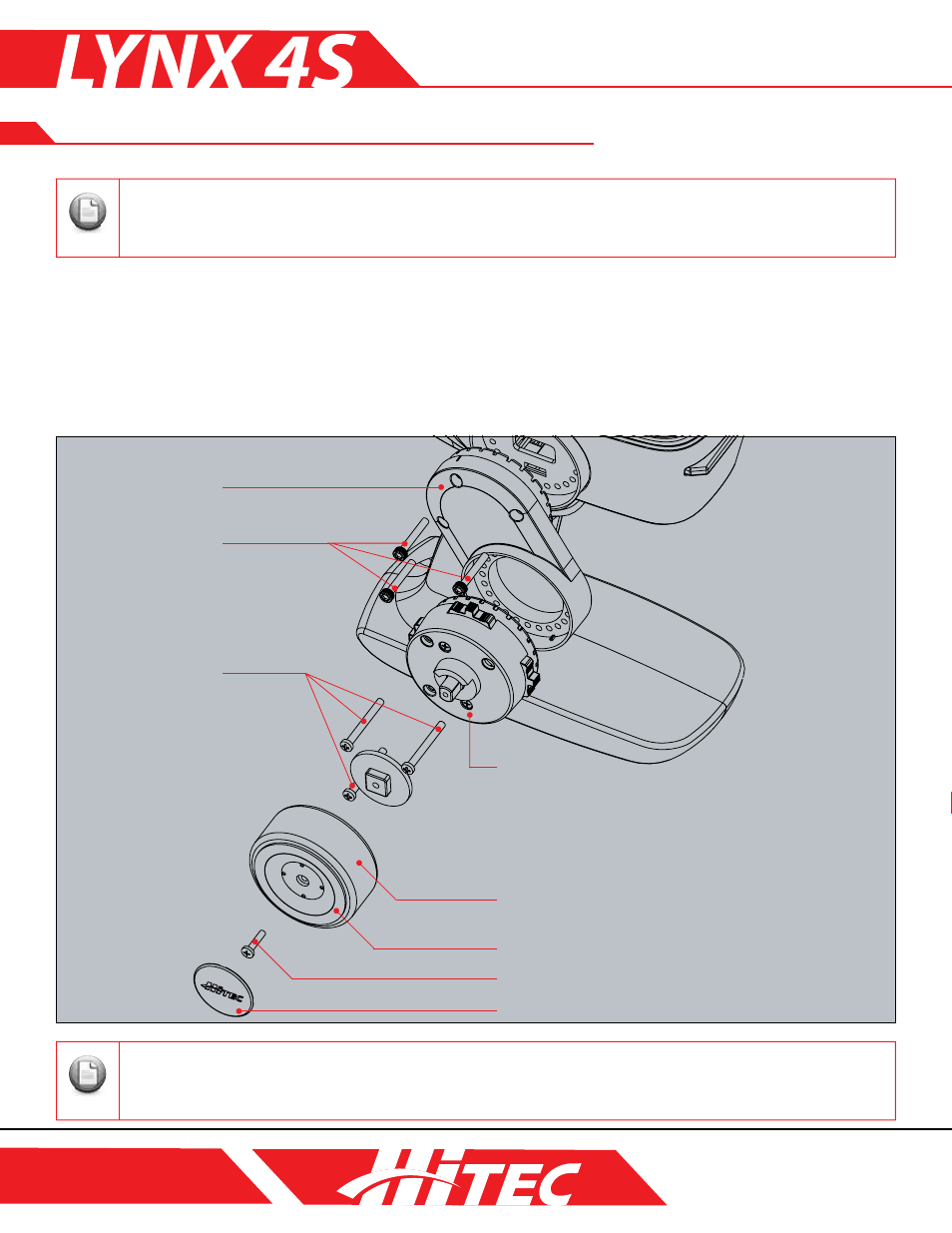

3x28mm Screw Bolt
Wheel Sponge
Steering Wheel
2.6x12mm Screw Bolt
Wheel Cover
Wheel Unit
3x20mm Hex Bolt
Extension Adapter
Changing the Position of the Steering Wheel (cont.)
