Chapter 3 - Input/Output Interfaces
76 FT 3120 / FT 3150 Smart Transceiver Data Book
*If the measurement is new, t
ret
= 52 µs. If a new time is not being returned, t
ret
= 22 µs.

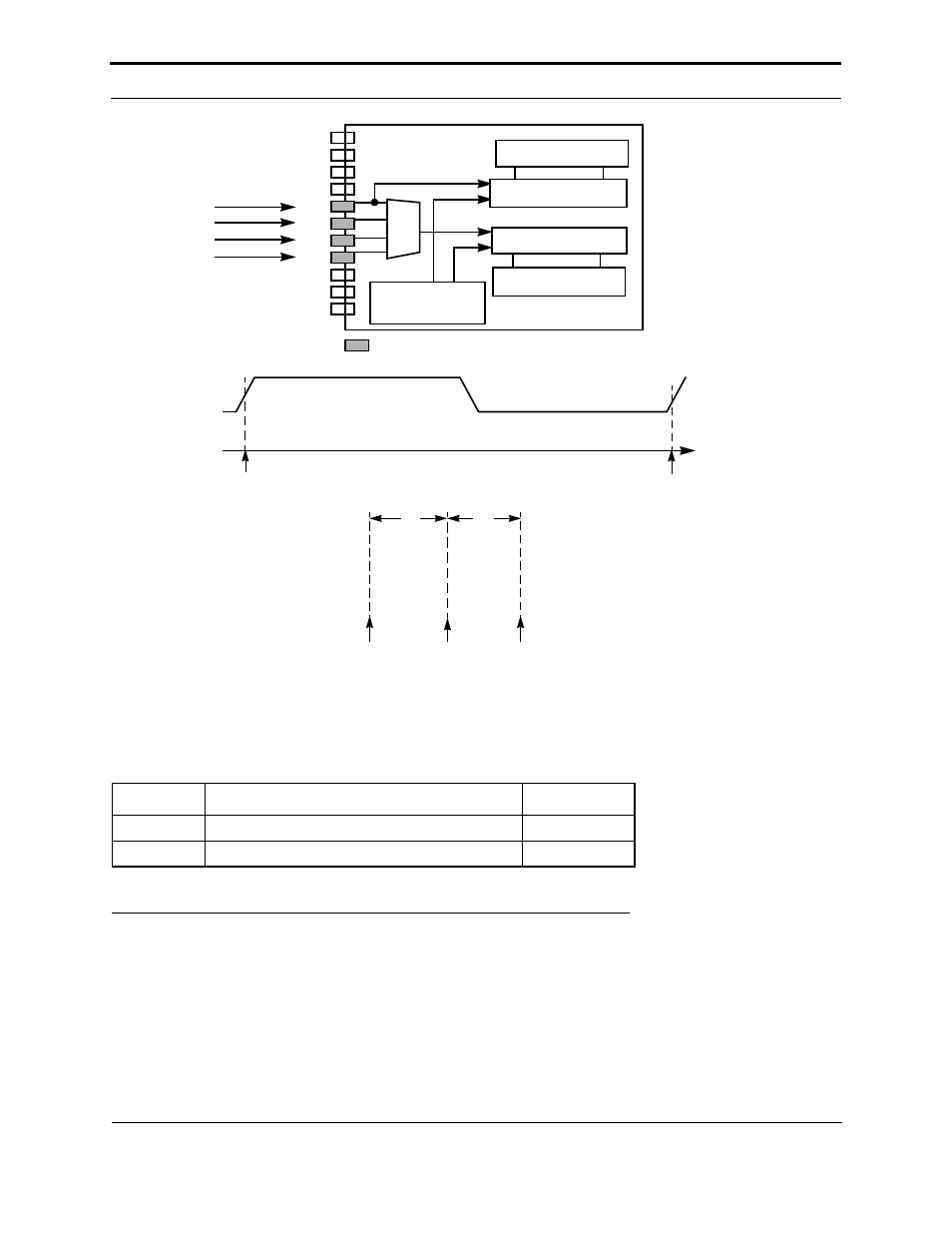

Figure 3.40 Period Input Latency Values
This is an edge-sensitive function. The clock driving the internal counter in the FT Smart Transceiver is free running.
The detection of active input edges stops and resets the counter each time.
The actual active edge of the input depends on whether or not the invert option was used in the declaration of the
function block. The default is the negative edge.
Since the period function measures the delay between two consecutive active edges, the invert option has no effect on
the returned value of the function for a repeating input waveform.
Symbol Description Typ @ 10MHz
t
fin
Function call to input sample 86 µs
t
ret
Return from function 52/22 µs*
