plate located in the area behind
the pinch rollers.

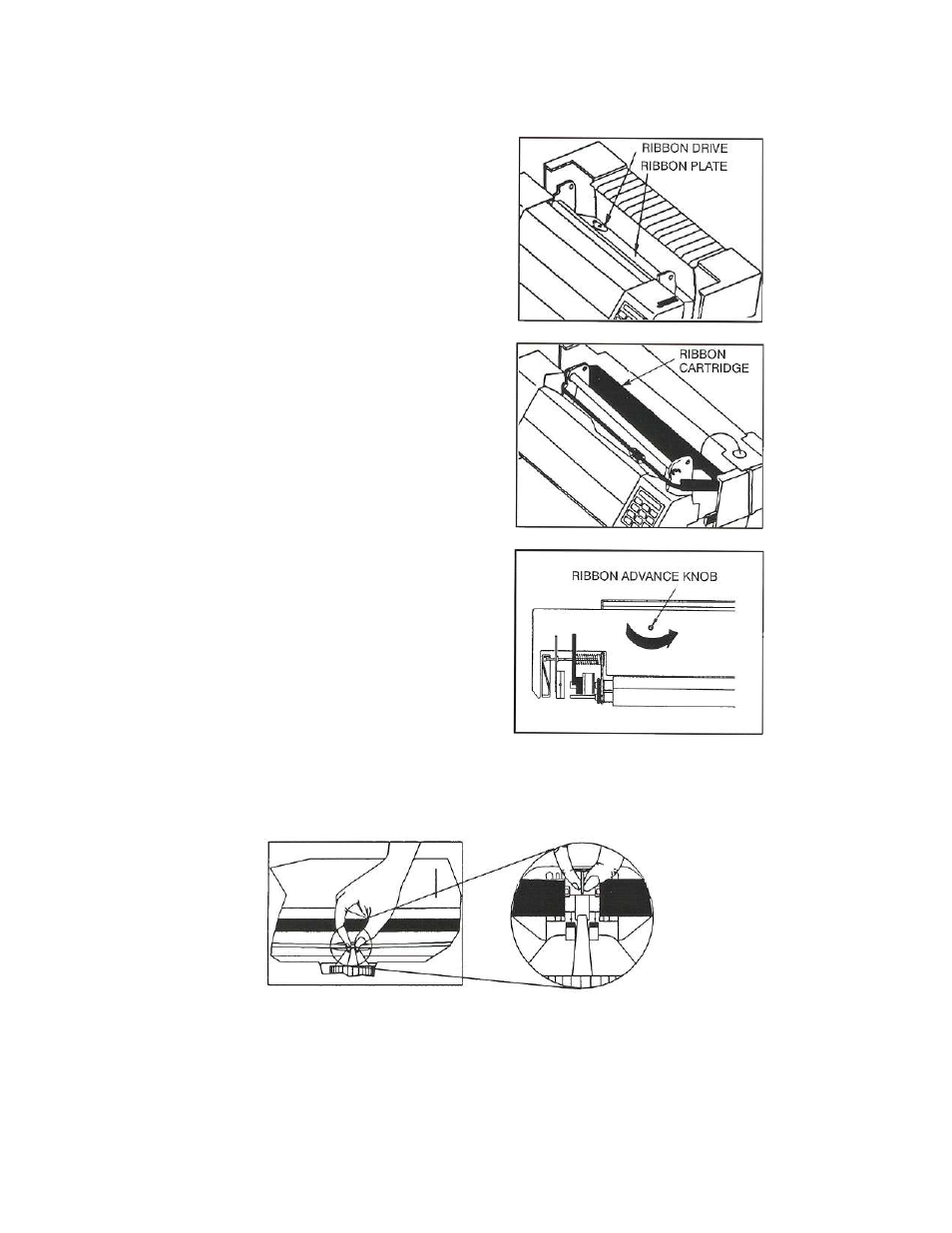

11. Lower the ribbon cartridge into
the printer. Ensure that the ribbon
loop is in front of the platen and
that the ribbon is not twisted. Press
the ribbon cartridge down onto
the ribbon plate.
12. If the ribbon cartridge does
not rest squarely on the ribbon
plate, rotate the ribbon advance
knob in the direction indicated
by the arrow on the cartridge
until the cartridge drops into
place on the ribbon drive.
13. Move the printhead to the center of the printer and place the ribbon guide on the printhead
nose. Push down on ribbon guide until it snaps into place.
1-11
14. Return the pinch roller to its normal position.
