Model 5600 Installation and Operation Manual
4-14 151450
4.5.1 Mounting the 5635
This section of the manual describes mounting the remote annunciator. Figure 4-11
shows the parts of the annunciator.

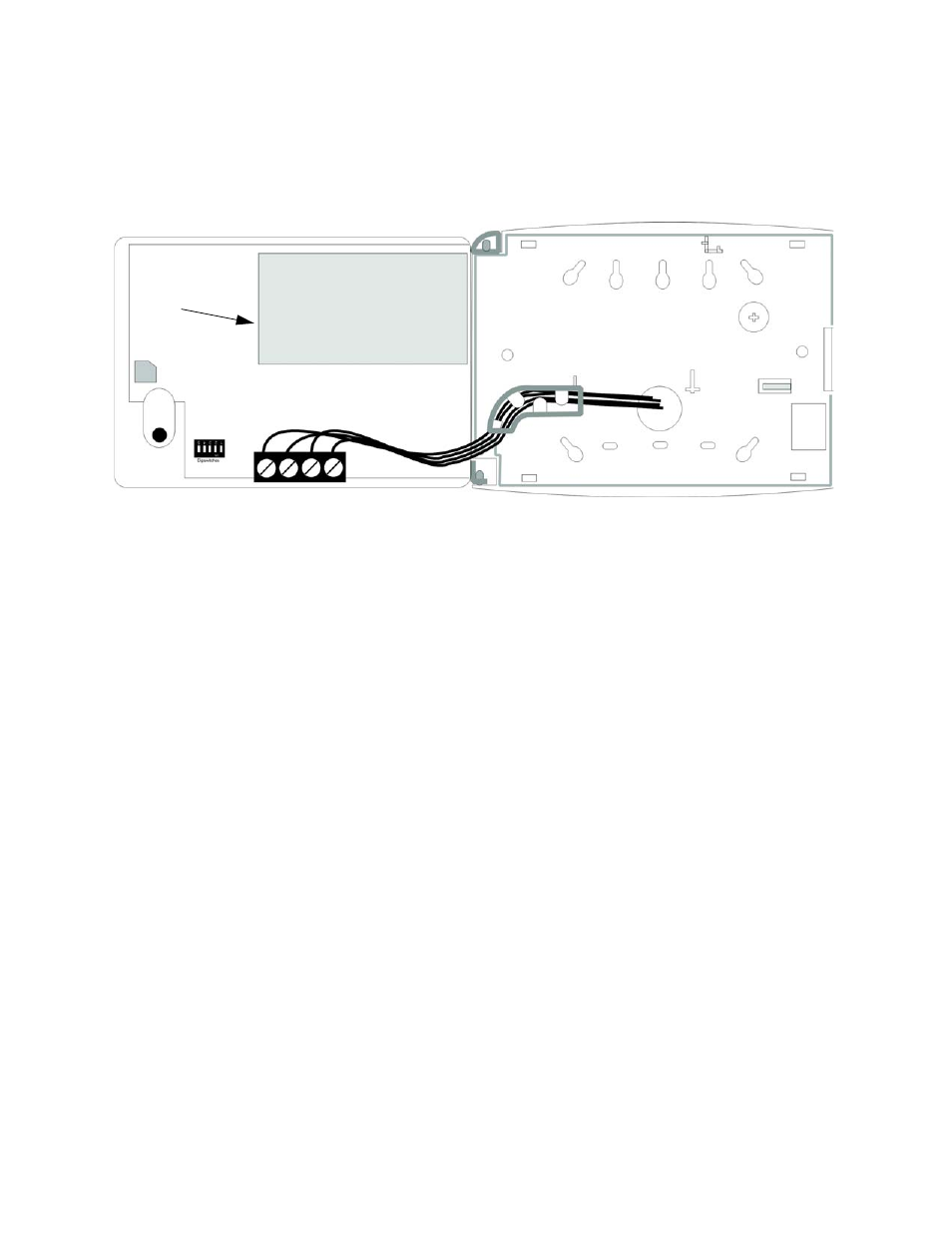

Figure 4-11 5635 Annunciator Parts
The 5635 Series plastic enclosures can be surface or semi-flush mounted in a single,
double or 4” square electrical box.
To mount the 5635 Series enclosure:
1. Open the 5635 Series cover by turning the key switch counterclockwise to the ON
(Unlocked) position.
2. Push in the snap latch tab located on the right side while pulling the cover open.
3. Pull wire through 7/8” hole in backplate and feed through wire channel to lower left
corner of backplate before routing to terminal block.
4. The cover must remain attached to the backplate while mounting the annunciator
to the electrical box/ wall. The cover cannot be reattached or removed after the
annunciator has been mounted.
5. Surface or Semi-flush mount the 5635 to a single, double or 4" square electrical
box. The ANN-SB80KIT(-R/-B/-W) is an available kit that contains two plastic
backboxes that can be used to surface mount the 5635.
Back Box
Inside Cover
LCD Display
