Control Panel Installation
151450 4-13
4.5 5635 Remote Annunciator Installation
The optional Model 5635R (red) and 5635W (white) Remote Annunciator is shown in
Figure 4-10.

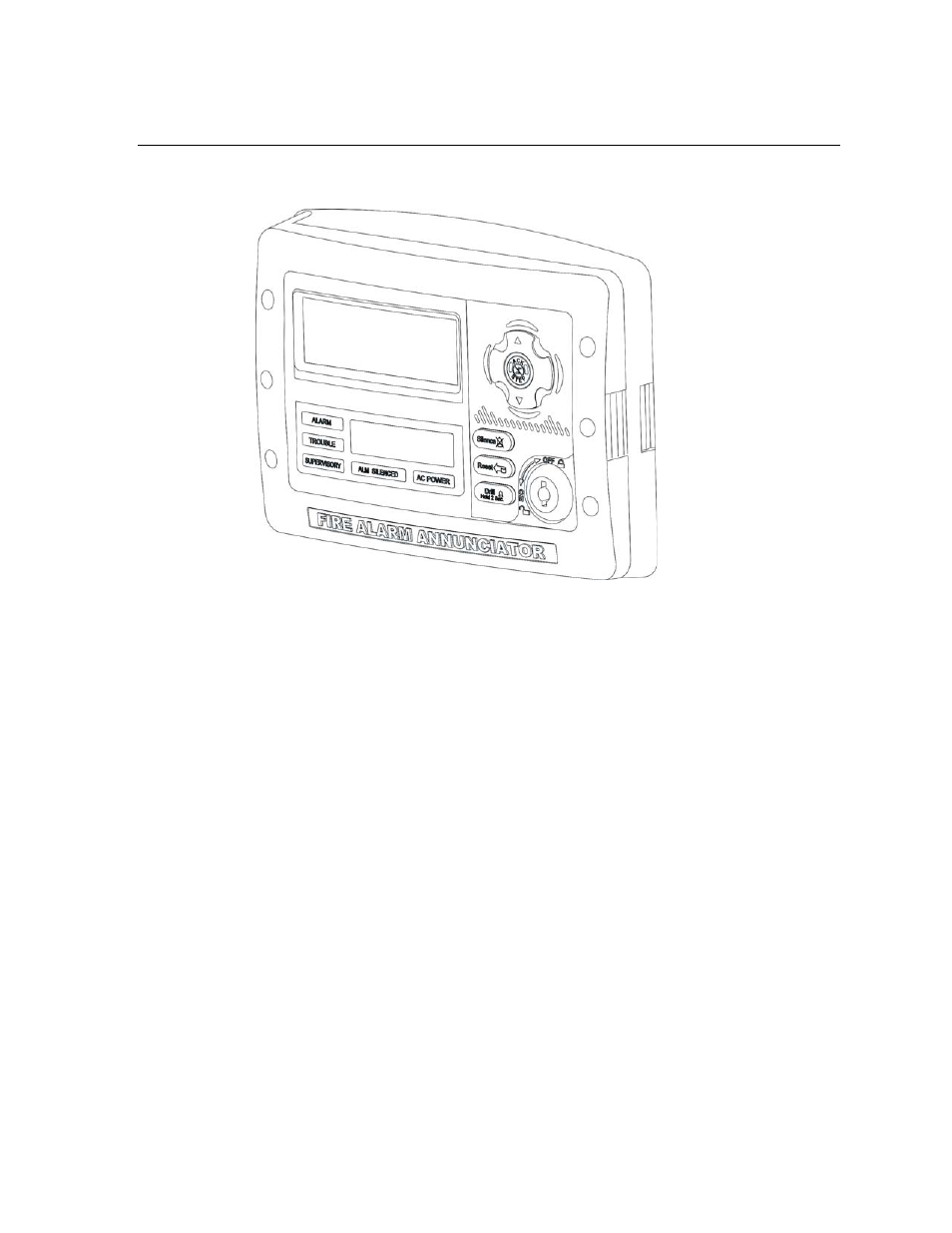

Figure 4-10 Model 5635 Remote Annunciator, Front View
5635 installation involves the following steps:
1. Make sure power is off at the panel.
2. Mount the 5635 in the desired location (see Section 4.5.1).
3. Connect the 5635 to the panel (see Section 4.6).
4. Use the DIP switches on the back of the 5635 to assign an ID# to the 5635 (see
Section 4.7.1).
5. The new 5635 module must be added to the system through programming. Jump-
Start will add the module automatically (see Section 6.4). You can also add it man-
ually (see installation sheet PN 53958).
