RED 3-AXIS SYSTEM OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC
955-0044, REV-D | 69
RED START/STOP CABLE (1B TO 00B SYNC)
The RED Start/Stop Cable (1B to 00B Sync) supports Start/Stop functionality through the RED W.M.D. This
cable connects to the EXP port on the W.M.D. and to the SYNC port of your DSMC and is ideal for run-and-gun
shooters who want convenient Start/Stop capability only.
NOTE: When using the RED Start/Stop Cable (1B to 00B Sync), you must configure the W.M.D. for EPIC start/
stop operation only. On the W.M.D., go to Select > Start/Stop > EPIC.
NOTE: For use for direct Start/Stop applications. Eliminates Timecode, Genlock, and Tally options.
W.M.D. EXPANSION PORT
EPIC START/STOP
FGG-1B.314.CLAD42Z
FGG-00.304.CLAD35Z
PIN
SIGNAL
WIRING
PIN
SIGNAL
1
GND
1-1
1
GND
2
232 Rx_In
-
2
EPIC Start/Stop
3
+12 V
-
3
Timecode In
4
232 Tx-Out
-
4
Genlock
5
Start/Stop
Contact Pin
-
-
-
6
Start/Stop
Status in 3V3
-
-
-
7
Epic Start/Stop
3.3 Con Pin
7-2
-
-
8
AUX GPIO 1_3.3
-
-
-
9
+3.3 V
-
-
-
10
Cable ID
-
-
-
11
-
-
-
-
12
AUX GPIO 2_3.3
-
-
-
13
-
-
-
-
14
-
-
-
-

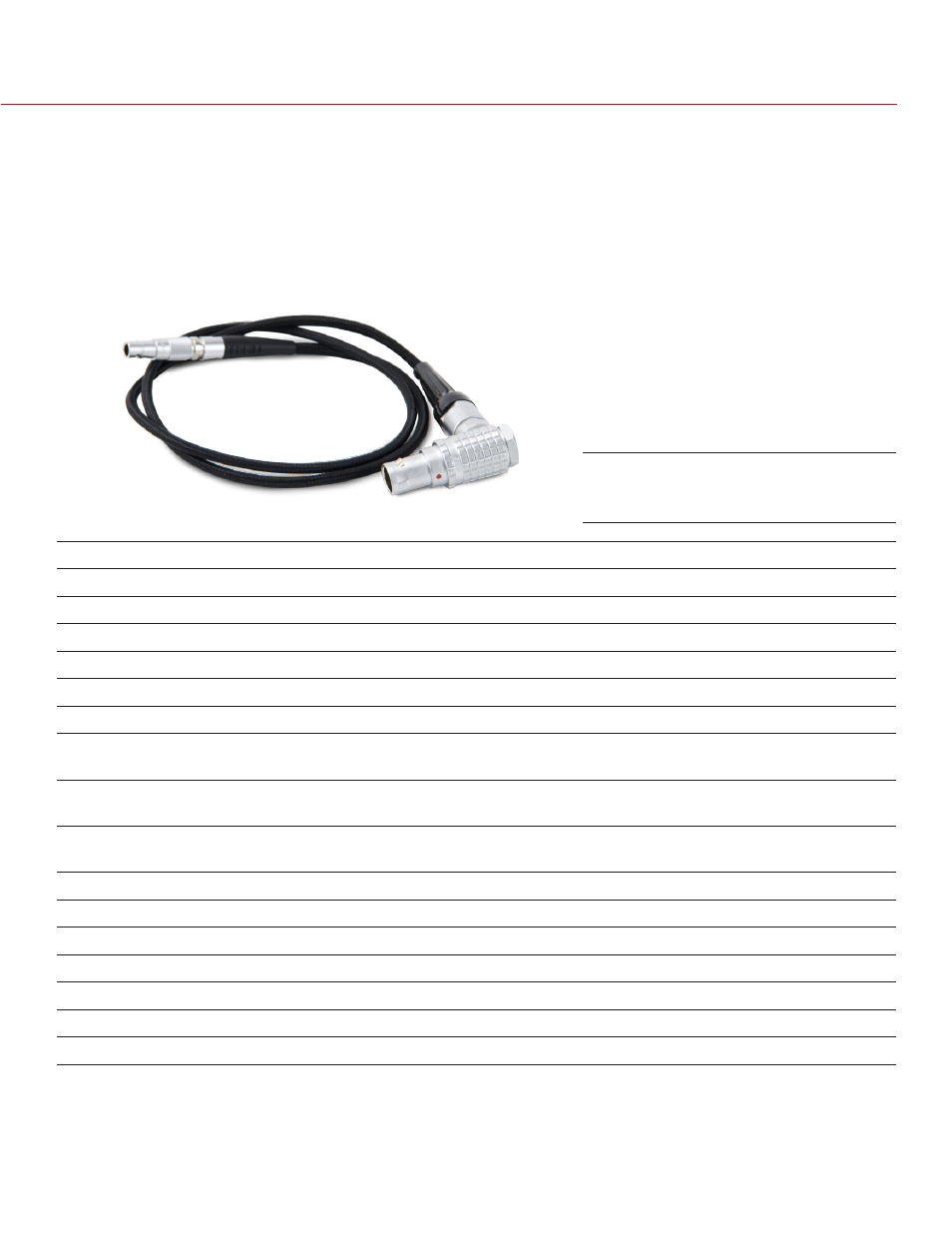

RED Start/Stop Cable (1B to 00B
Sync)
