RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 64

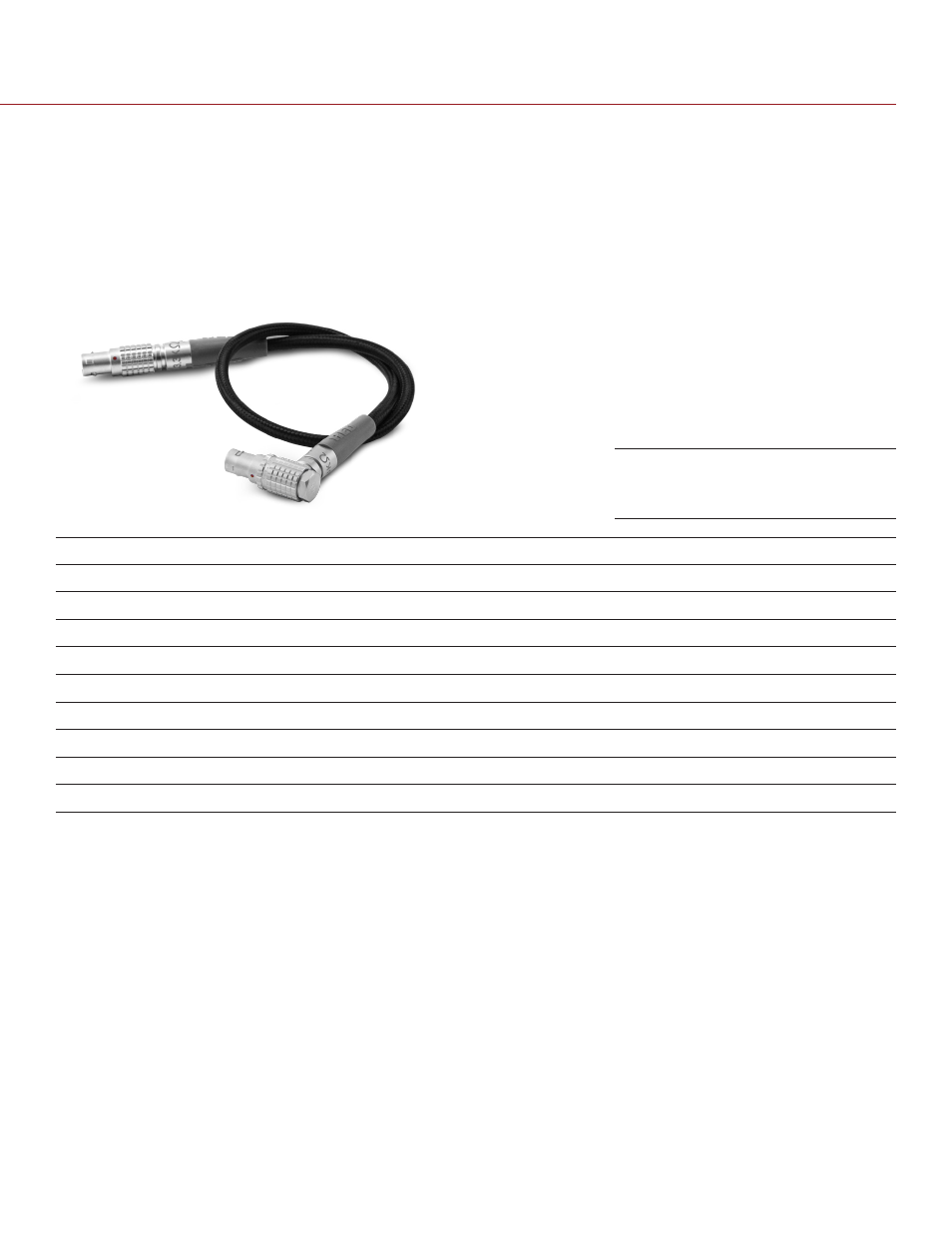

RED LENS CONTROL MOTOR CABLE (3.3KΩ VERSION)
The RED Lens Control Motor Cable (3.3KΩ Version) provides a 7-pin 1B to 7-pin 1B LEMO cable used to con-
nect RED Lens Control Motors to compatible third-party motor drivers. This cable provides a 3.3k ohms (Ω)
resistance identification to the motor driver. Cables are available in 18" and 24".
NOTE: The RED Lens Control Motor is also compatible with third-party systems using the appropriate RED mo-
tor cable with the proper internal identification resistor.
NOTE: For more information, go to
“Compatible Motor Drivers” on page 54
, or visit the
at
.
W.M.D.
LENS CONTROL MOTOR
FGG-1B.307.CLAD62Z
FGG-1B.307.CLAD62Z
PIN
SIGNAL
WIRING
PIN
SIGNAL
1
Motor (+)
1-1
1
Motor (+)
2
Motor (-)
2-2
2
Motor (-)
3
Encoder A
3-3
3
Encoder A
4
+5 V
4-4
4
+5 V
5
GND
5-5
5
GND
6
Encoder B
6-6
6
Encoder B
7
Motor ID
7-7
7
Motor ID
RED Lens Control Motor Cable
(3.3KΩ VERSION)
