RED 3-AXIS SYSTEM OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC
955-0044, REV-D | 19

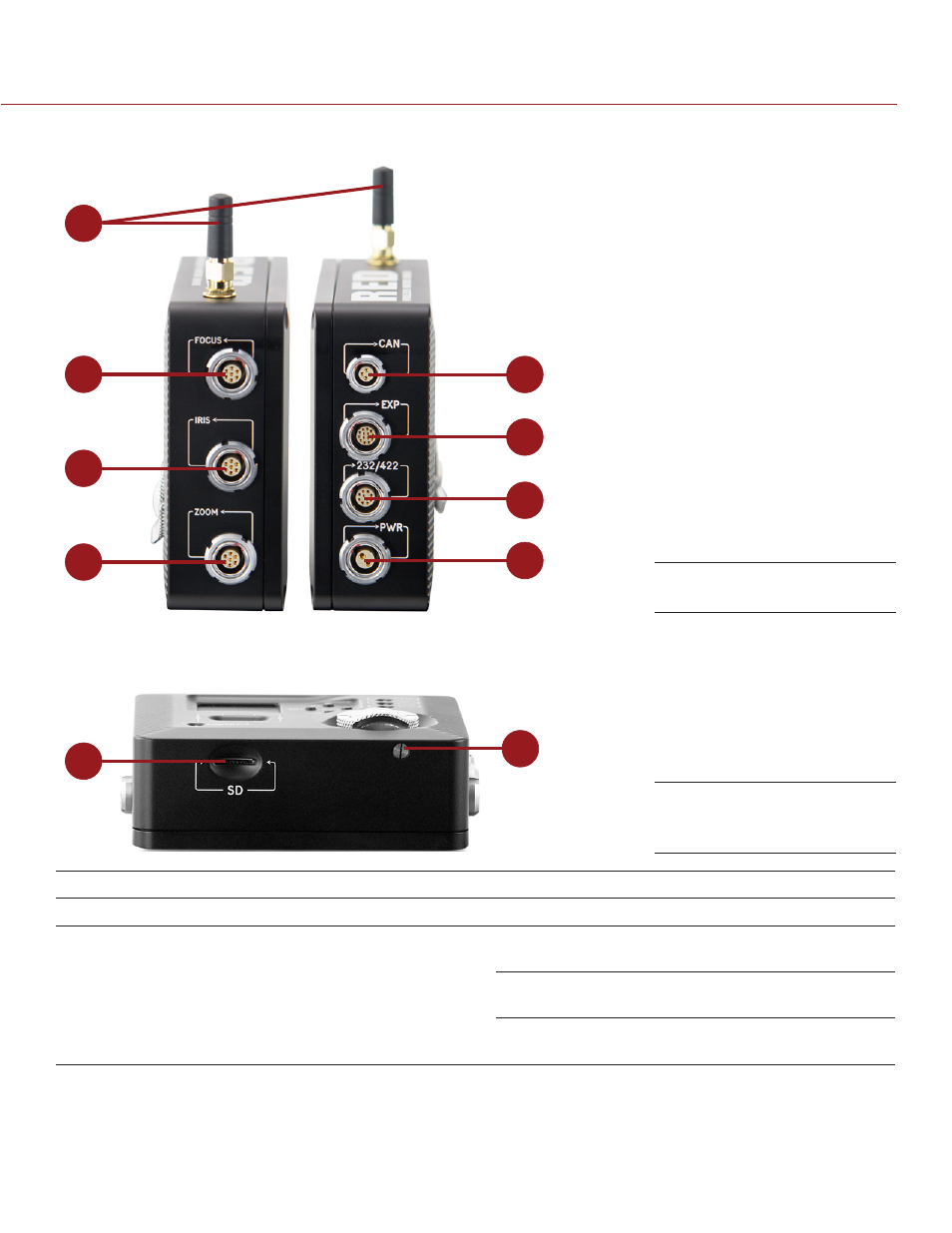

W.M.D. CONNECTORS
1
2
3
4
5
6
7
8
9
10
#
CONNECTOR
DESCRIPTION
COMPATIBLE PARTS
PART NUMBERS
1
Wireless antenna
Removeable antenna
RED T.H.C./W.M.D. Antenna
790-0420
2
Focus connector
(7-pin 1B LEMO)
Connect the W.M.D. to the
Focus Lens Control Motor
RED W.M.D. Motor Cable 7-Pin
Straight to 7-Pin Right (12”)
790-0434
RED W.M.D. Motor Cable 7-Pin
Straight to 7-Pin Right (18”)
790-0406
RED W.M.D. Motor Cable 7-Pin
Straight to 7-Pin Right (24”)
790-0412
W.M.D. Connectors (Side)
W.M.D. Connectors
(Bottom)
