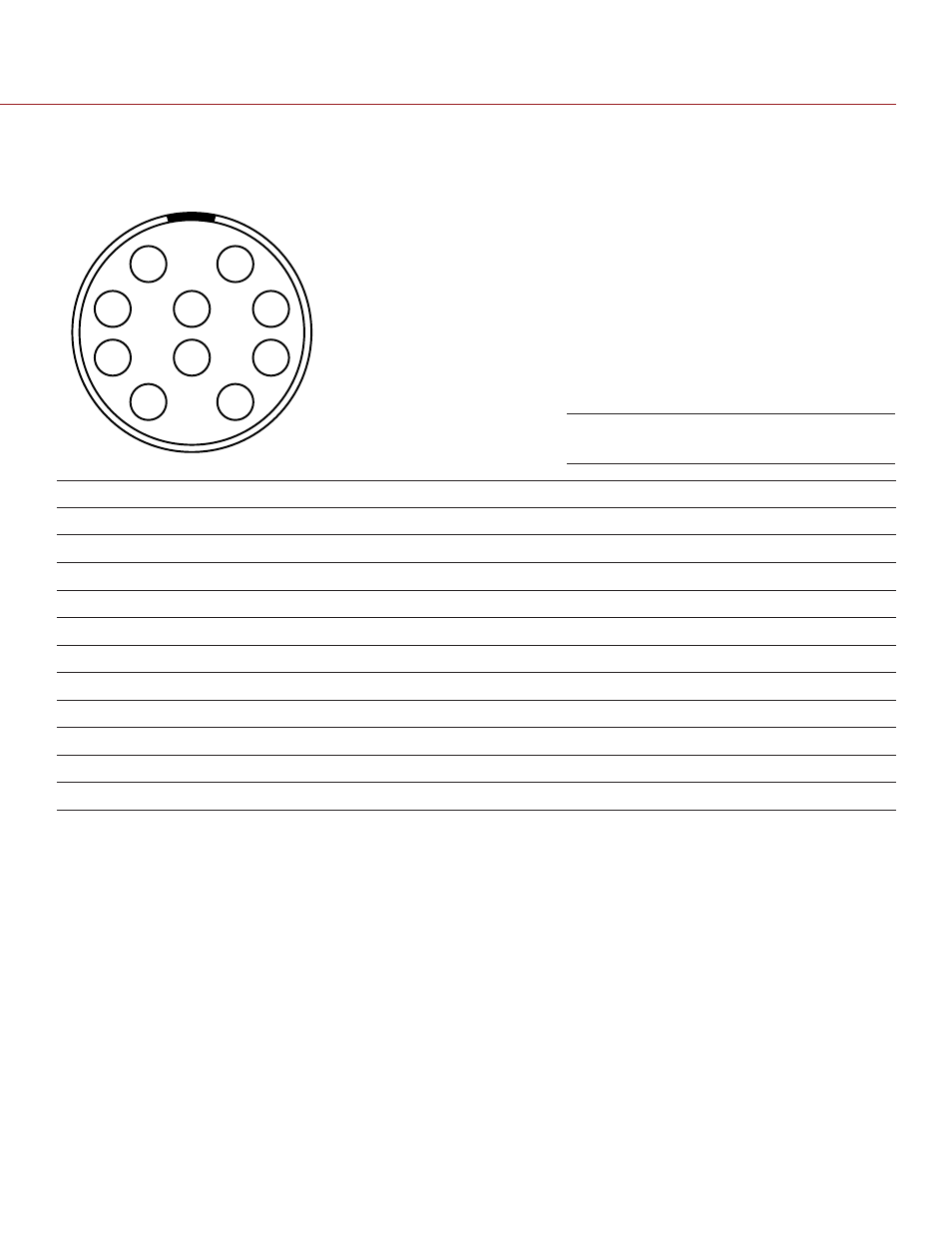

W.M.D. AUX CONNECTOR
The W.M.D. AUX connector is a 10-pin 1B connector used for RS-232 communication and power with other
third-party systems and accessories.
1
6
3
4
5
2
1
8
4
5
7
2
9
3
6
10
6-PIN 0B LEMO AUX CONNECTOR
PIN
SIGNAL
1
Pwr Out
2
232 Tx
3
232 Rx
4
422 Tx+
5
422 Rx+
6
422 Rx-
7
422 Tx-
8
232 Jumper
9
232 Jumper
10
GND
W.M.D. 10-pin 0B RS232 connector
