RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 60

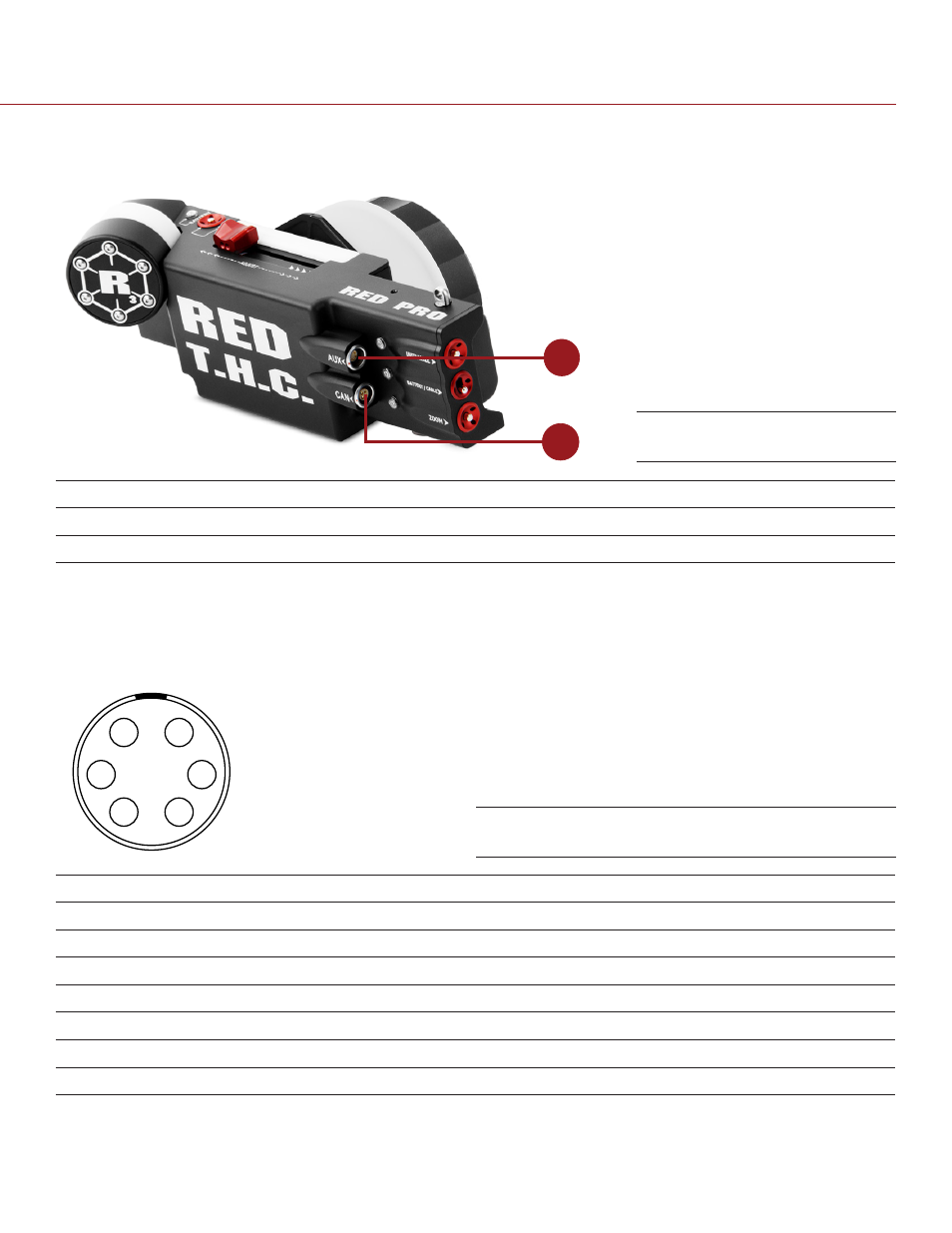

T.H.C. CONNECTORS
1
2
# CONNECTOR CONNECTOR TYPE CONNECTOR FUNCTION
1 AUX 6-pin 0B LEMO RS-232 communication to auxiliary devices
2 CAN 4-pin 1B LEMO CAN communication and power from the W.M.D.
T.H.C. AUX CONNECTOR
The T.H.C. AUX connector is a 6-pin 0B LEMO connector on the T.H.C. used for RS-232 communications and
power with third-party systems and accessories.
NOTE: The T.H.C. Auxiliary (AUX) connector is for future development and is not currently needed for operation.
1 6
3 4
5 2
6-PIN 0B LEMO AUX CONNECTOR
PIN SIGNAL
1 GND
2 Rx
3 Tx
4 Pwr Out
5 Pwr In
6 -
T.H.C. Connections
T.H.C. 6-Pin 0B AUX Connector
