W.M.D. START/STOP/TALLY EXPANSION CONNECTOR
The W.M.D. Start/Stop/Tally expansion connector is a 14-pin 1B connector that provides expansion (EXP) sup-
port for the RED 3-Axis Lens Control System.
1 10
5
6
4
7
2
9
13
11
3
8
14
12

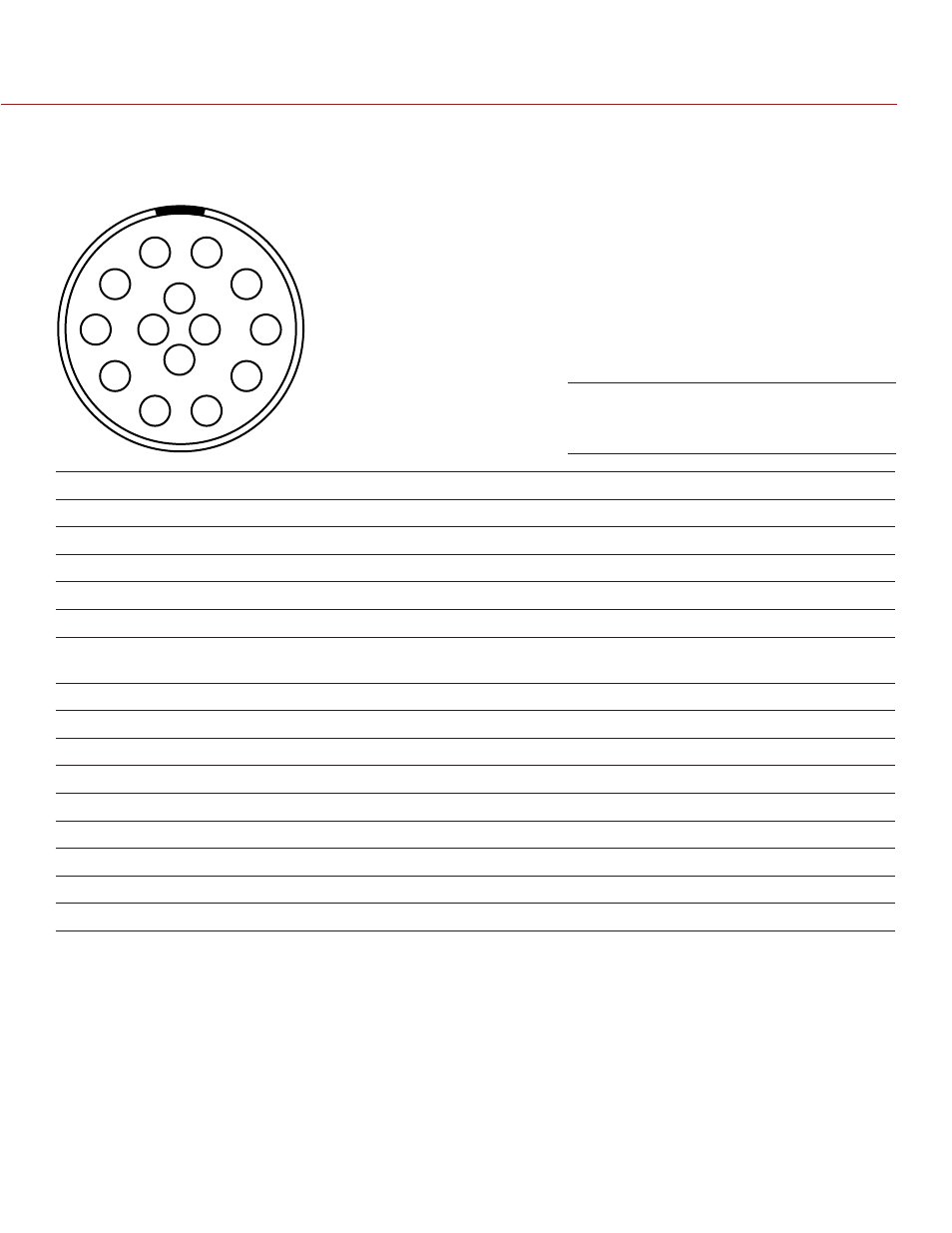

14-PIN 1B LEMO START/STOP EXPANSION CONNECTOR
PIN
SIGNAL
1
GND
2
232_Rx
3
+12 V
4
232_TX
5
Momentary
Start/Stop
6
EPIC Tally
7
EPIC Start/Stop
8
AUX GPIO 1_3.3
9
+3.3 V
10
Cable ID
11
-
12
AUX GPIO 2_3.3
13
-
14
-
W.M.D. 14-Pin Start/Stop and Tally
connector
