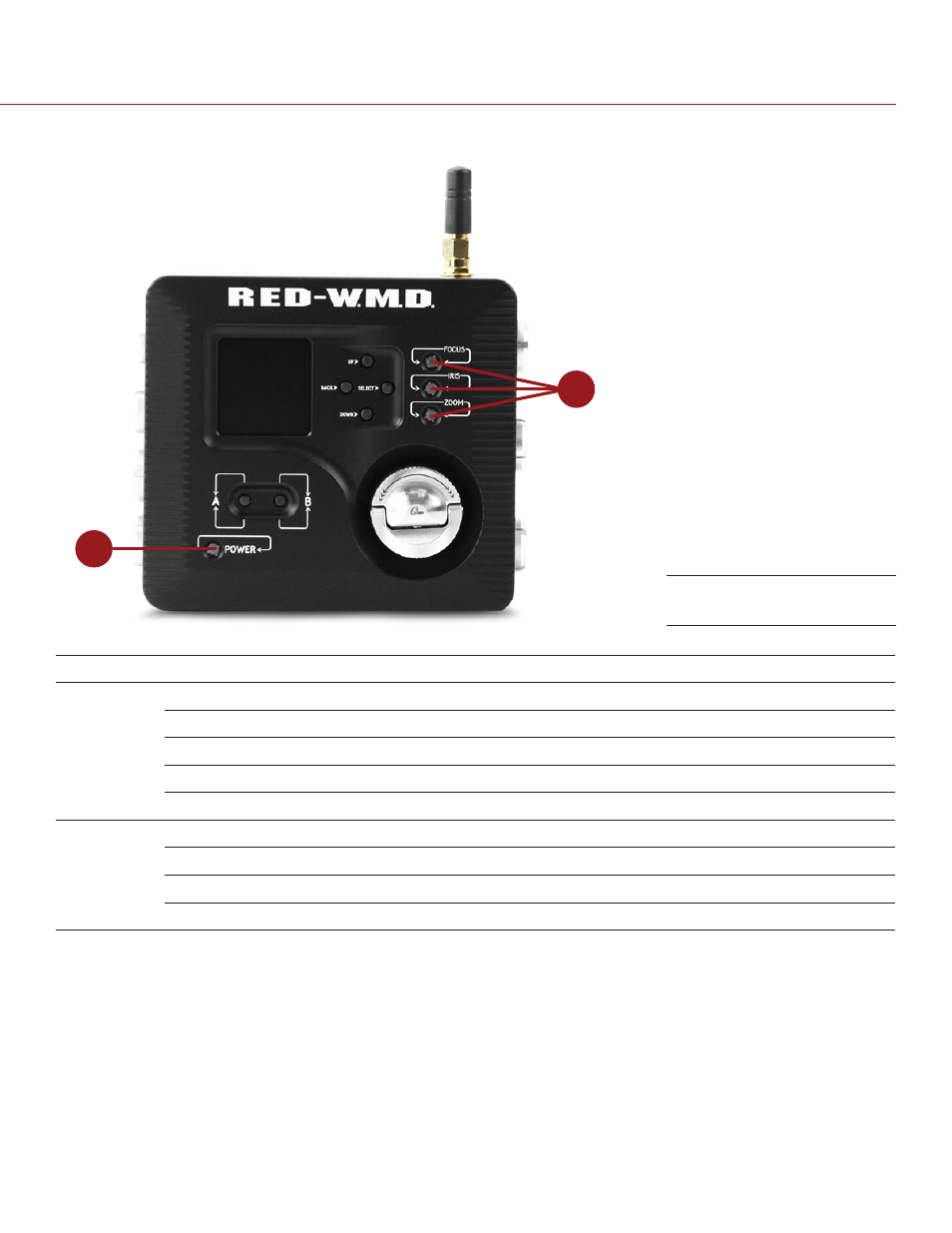

W.M.D. LEDS
1
2
#
LED
COLOR/FLASHING
DESCRIPTION
1
Power Off
No power connected
Green flashing
Firmware upgrading
Green
Power on; Firmware upgraded
Red
Power error
Amber flashing
System boot indicator or initialization in progress
2
Focus,
Iris,
Zoom
Off
No motor connected
Green flashing
Initialization in progress
Green
Initialized and ready for operation
Red
Motor error or failed initialization
W.M.D. LEDs
