RED 3-AXIS SYSTEM OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0044, REV-D | 21
MOUNT THE W.M.D.
The W.M.D. is designed to support various mounting requirements, enabling you to customize your setup for
your own camera configuration.
ATTACH THE W.M.D. TO THE DSMC TACTICAL RIGHT PLATE
When the V-LOCK is removed from the back of the W.M.D., it can be attached to a DSMC ® Tactical Right Plate
using the built-in thumbscrew and guide pin.
The W.M.D. can be attached to a DSMC Tactical Right Plate or other mounting plate with 1/4-20 screw holes.
The built-in thumbscrew and 1/4" guide pin provide convenient, tool-free attachment for the W.M.D.
1. Ensure that the V-LOCK is removed from the back of the W.M.D. For more information about how to remove
the V-LOCK, go to “Mount the W.M.D. to a V-Mount Receiver” on page 22 .
2. Use a slotted screwdriver to remove the guide pin from the bottom of the W.M.D.
3. Use a slotted screwdriver to install the guide pin in the appropriate mounting hole on the back of the W.M.D.
Select the mounting hole based on your mounting configuration:
‒ DSMC Tactical Right Plate: Use the screw hole closest to the 1/4-20 screw for 18 mm spacing.
‒ Third-party cheeseplate: Use the screw hole farthest from the 1/4-20 screw for 25 mm spacing.

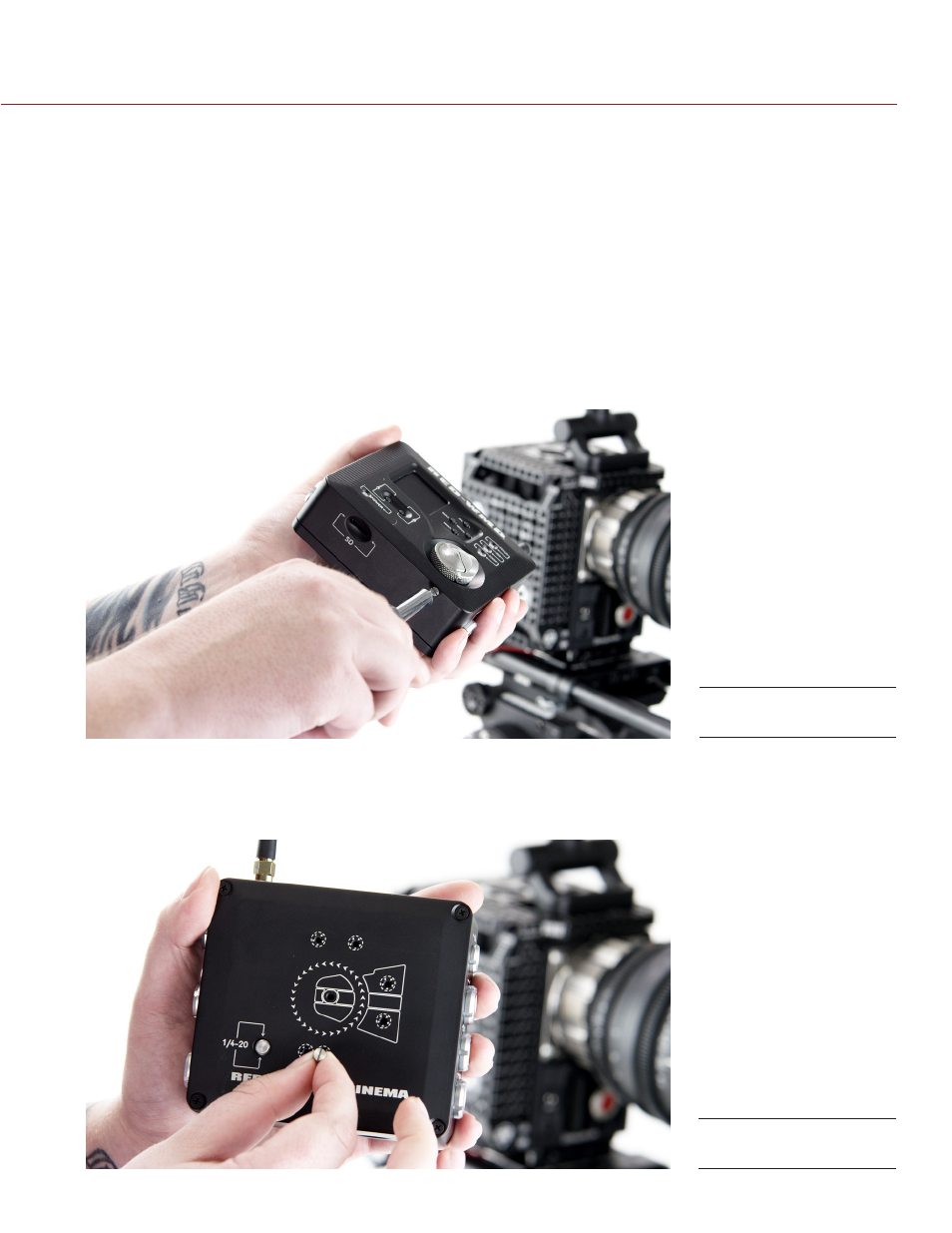

Remove Guide Pin
Install Guide Pin
