3-AXIS SYSTEM CABLES
RED W.M.D. MOTOR CABLE (FOCUS, IRIS, ZOOM)
The RED W.M.D. Motor Cable is a 7-pin 1B to 7-pin 1B LEMO cable used to connect RED Lens Control Motors
to the W.M.D. Cables are available in 12", 18", and 24".
NOTE: The RED Lens Control Motor is also compatible with third-party systems using an appropriate RED motor
cable with the proper internal identification resistor. For more information, visit the RED Store at http://www.
red.com/store or contact your Bomb Squad representative.
W.M.D. LENS CONTROL MOTOR
FGG-1B.307.CLAD62Z FGG-1B.307.CLAD62Z
PIN SIGNAL WIRING PIN SIGNAL
1 Motor (+) 1-1 1 Motor (+)
2 Motor (-) 2-2 2 Motor (-)
3 Encoder A 3-3 3 Encoder A
4 +5 V 4-4 4 +5 V
5 GND 5-5 5 GND
6 Encoder B 6-6 6 Encoder B
7 Motor ID 7-7 7 Motor ID

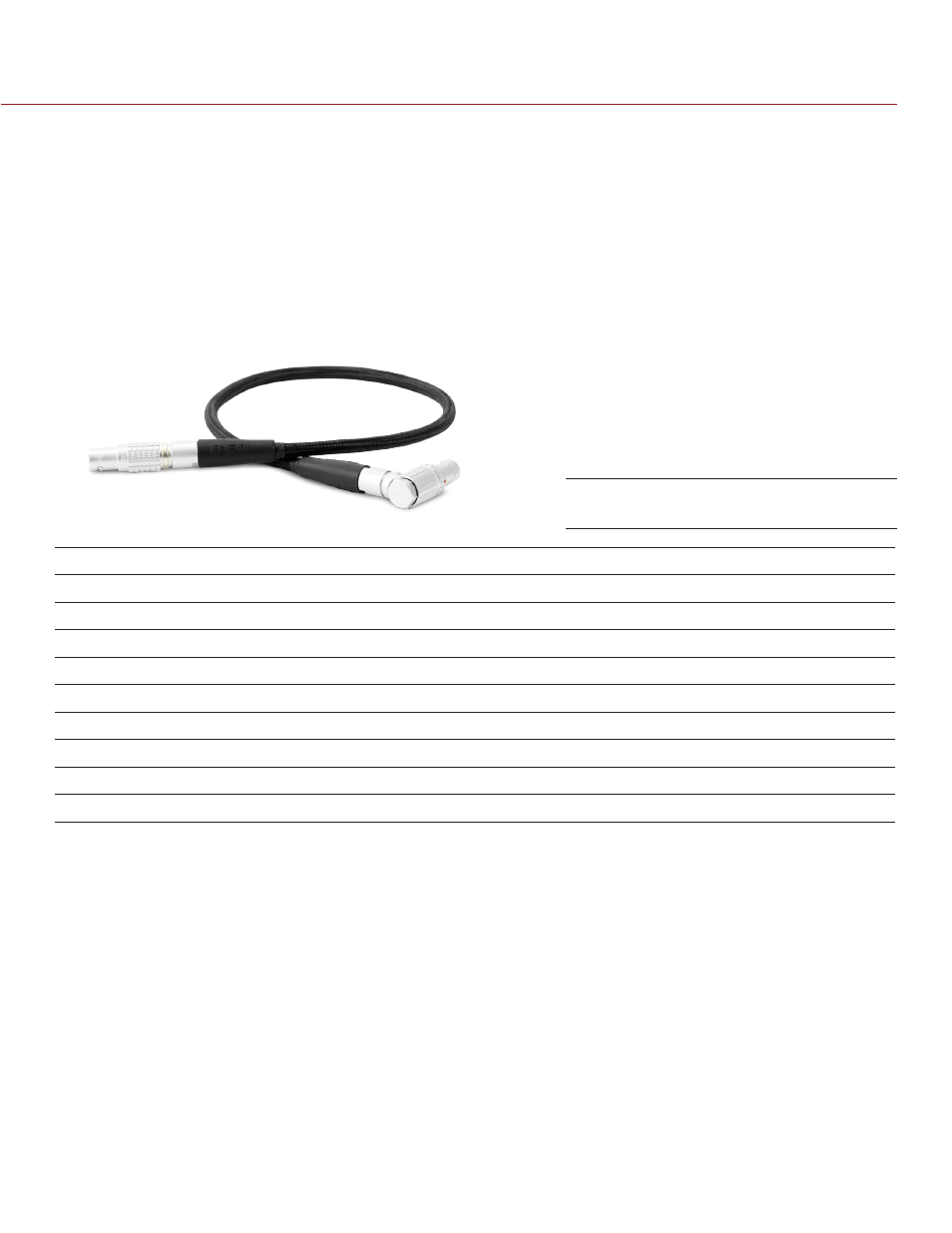

RED W.M.D. Motor Cable (12")
