Page 66
COPYRIGHT © 2014 RED.COM, INC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 66

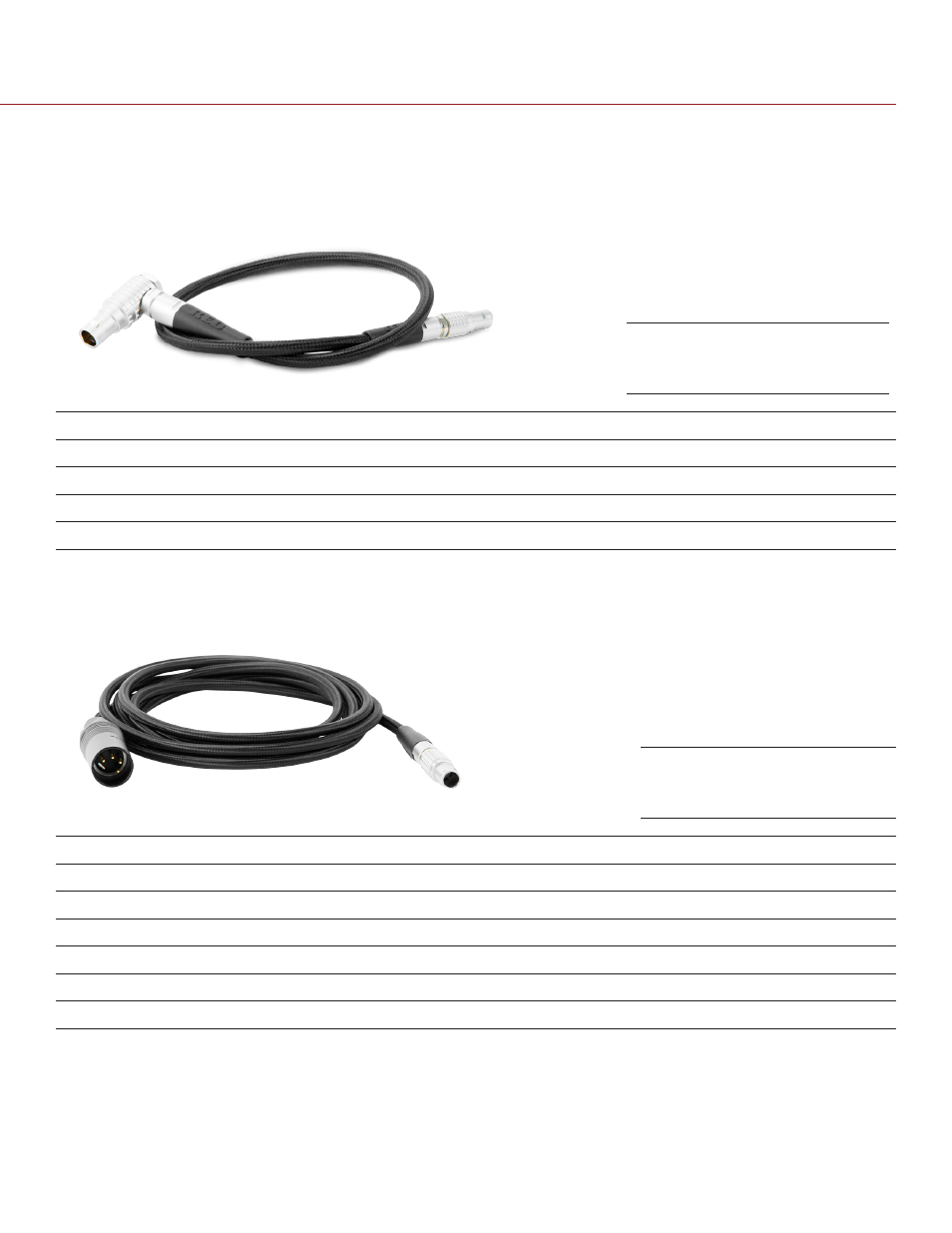

W.M.D. POWER CABLE 2-PIN 1B TO 2-PIN 0B
The W.M.D. Power Cable 2-Pin 1B to 2-Pin 0B (18") connects your RED W.M.D. to a standard 12 V 2-pin
0B LEMO accessory port (found on the QUICKPLATE MODULE and REDVOLT XL MODULE) to power the
RED 3-Axis Lens Control System.
W.M.D. POWER
DSMC POWER MODULE
FGG-1B.302.CLAD62Z
FGG-0B.302.CLAD62Z
PIN
SIGNAL
WIRING
PIN
SIGNAL
1
GND
1-1
1
GND
2
+12 V
2-2
2
+12 V
W.M.D. POWER CABLE 2-PIN 1B TO 4-PIN XLR
The W.M.D. can also be powered by a 2-pin 1B LEMO to XLR cable.
W.M.D. POWER
XLR POWER
FGG-1B.302.CLAD62Z
NC4MXX-B
PIN
SIGNAL
WIRING
PIN
SIGNAL
1
GND
1-1
1
GND
2
+12 V
2-4
2
-
-
-
-
3
-
-
-
-
4
+12 V
W.M.D. Power Cable 2-Pin 1B
to 2-Pin 0B (18")
W.M.D. Power Cable 2-Pin
1B to 4-Pin XLR (8")
