T.H.C. CAN CONNECTOR
The T.H.C. CAN connector is a 4-pin 0B LEMO connector that provides power and CAN communications be-
tween the W.M.D. and T.H.C., or other auxiliary devices.
1
2
4
3

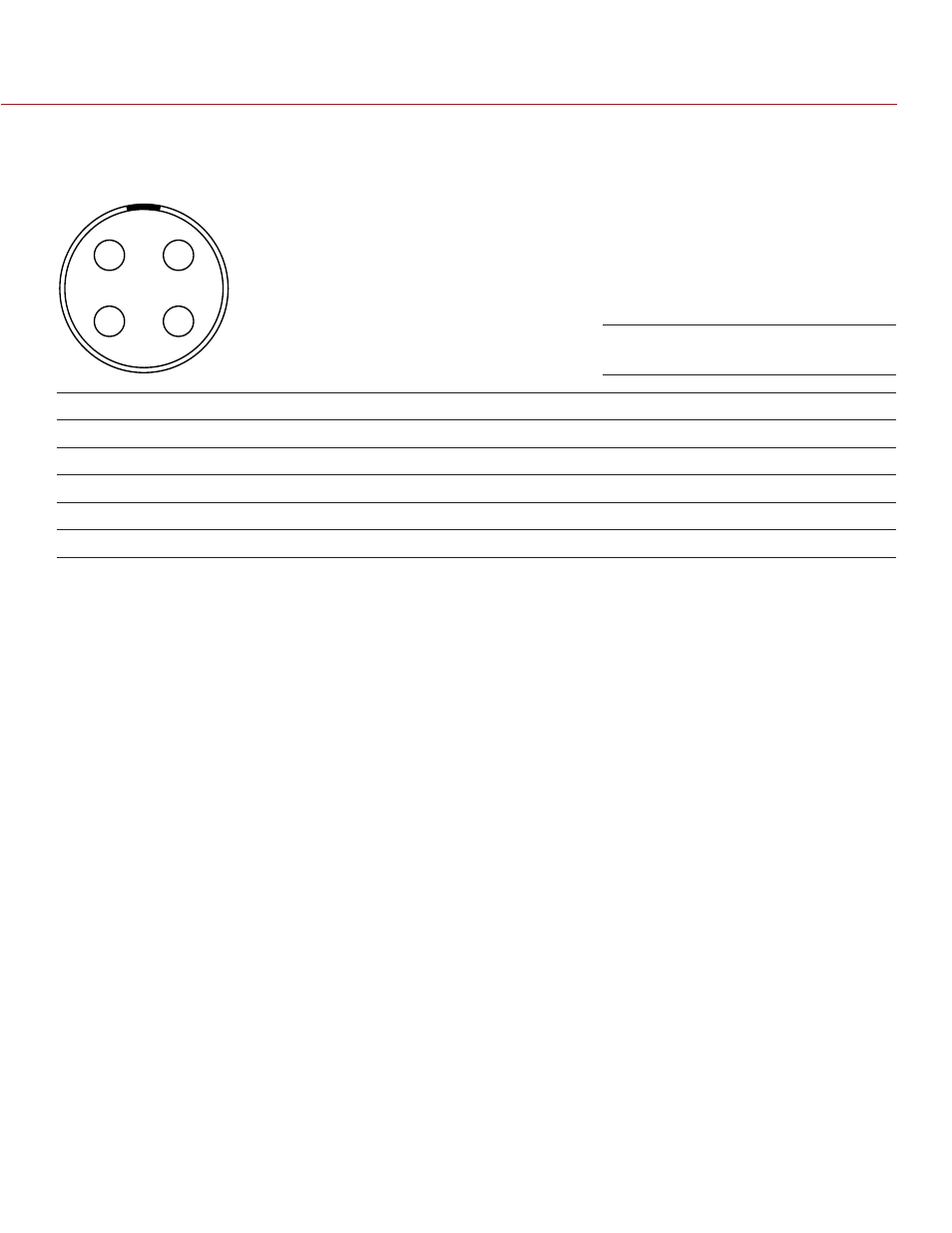

4-PIN 0B LEMO CAN CONNECTOR
PIN SIGNAL
1 GND
2 CANL
3 CANH
4 VCC
T.H.C. 4-Pin 0B CAN Connector
