RED 3-AXIS SYSTEM OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0044, REV-D | 29

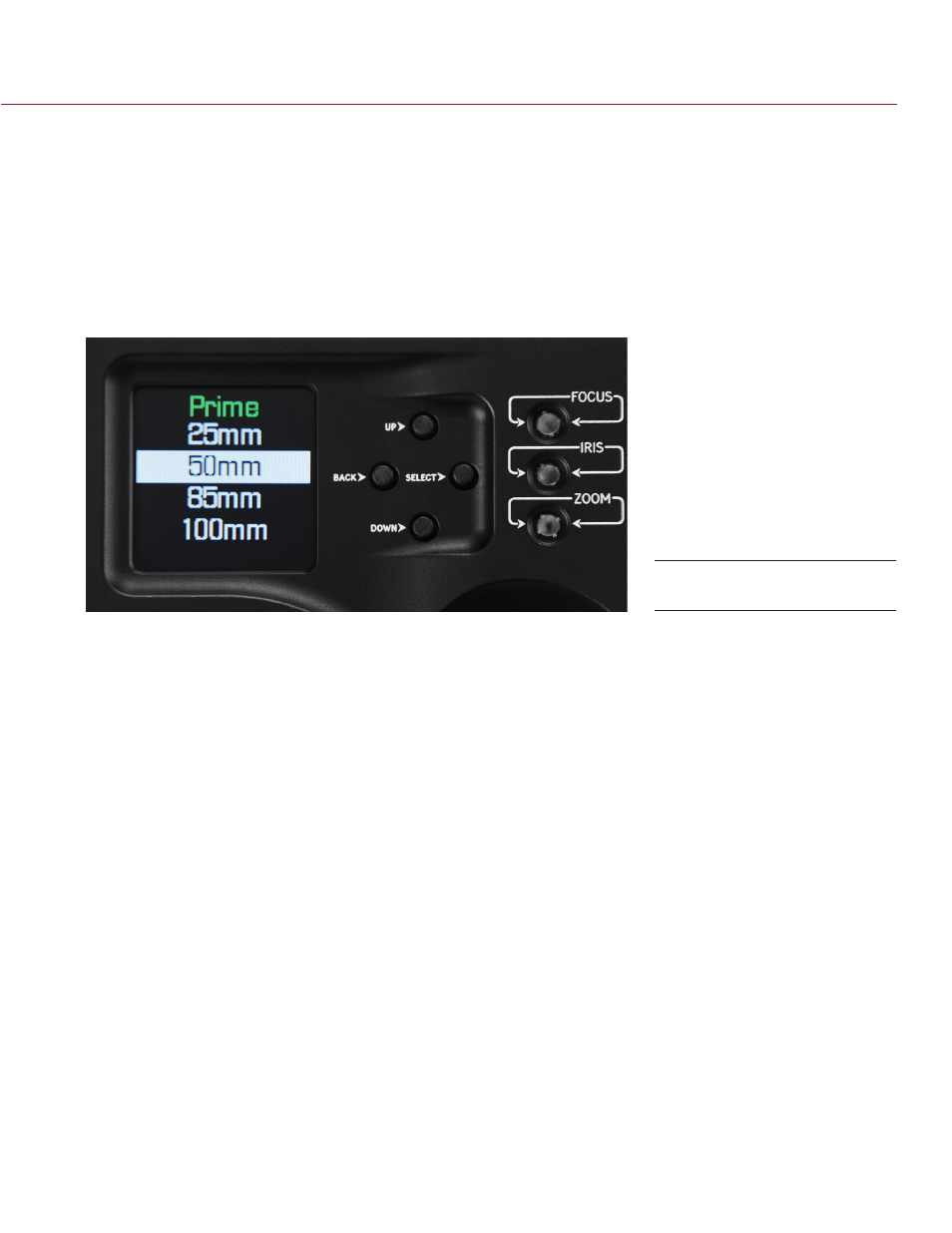

SELECT A LENS PROFILE
Default lens profiles are located Prime or Zoom menus. Modified lens profiles are saved in the User menu.
1. In the W.M.D. main menu, select Profiles.
2. Select the desired lens profile type. (Example: Prime, Zoom, or User)
3. Select the manufacturer.
4. Select the model.
5. Select the focal length.
6. Press Select to choose the lens profile for the specific lens.
CLEAR THE ACTIVE LENS PROFILES
The clear function deselects the current lens profiles. This will clear the active profile. Reselect a lens profile if
you wish to view metadata.
1. In the W.M.D. main menu, select Profiles.
2. Select Clear.
3. Press Back to exit to the Profiles menu.
Or press A to lock the W.M.D. and return to the home screen.
MODIFY A LENS PROFILE
The W.M.D. allows you to modify the encoder position related to a specific data point to fine-tune the active
lens profile.
1. In the W.M.D. main menu, select Profiles.
2. Select Modify.
NOTE: The 60 second auto-lock feature is disabled while the Modify menu is open.
3. Select the desired lens function. (Example: Focus, Iris, or Zoom)
4. Perform fine-tuning adjustments to calibrate the selected lens.
A. Adjust the gear so that the physical marking on the lens matches the “Mrk” value on the W.M.D. screen.
B. Press Select to update. The updated encoder position “At” value, should now match the “Mrk” value.
C. Repeat for each focal position on the lens as needed.
5. Press Down to save the profile and exit to the Profiles menu.
Or press Back to exit to the Profiles menu without saving lens profile changes.
Or press A to lock the W.M.D. and return to the home screen. This does not save lens profile changes.
Select a Lens Profile
