RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 36

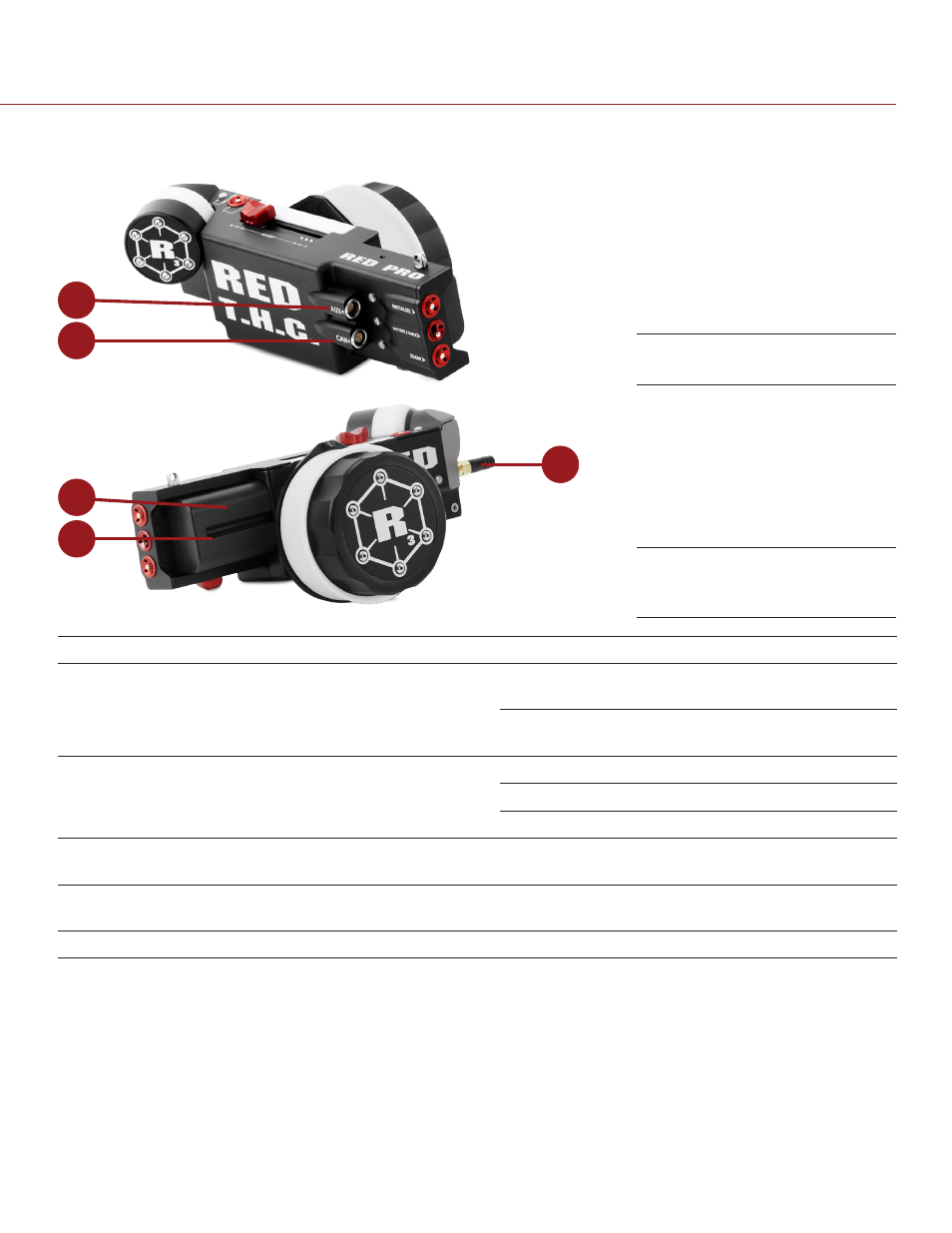

T.H.C. CONNECTORS
1
2
3
4
5
# CONNECTOR DESCRIPTION COMPATIBLE PARTS PART NUMBERS
1 AUX port Auxiliary power and communica-
tion for accessories (RS-232 at
38.4 K)
RS232-to-RS232 Cable 790-0150
REDLINK-to-T.H.C. Connector
Cable (3')
790-0444
2 CAN port CAN communication and power RED CAN Command Cable (5') 790-0407
RED CAN Command Cable (50') 790-0408
RED CAN Command Cable (100') 790-0409
3 Battery compart-
ment
Holds the RED LI BATTERY 7.2V RED Li Battery 7.2V 740-0032
4 MicroSD slot
(under battery)
Standard microSD slot used to
upgrade T.H.C. firmware
Standard microSD N/A
5 Wireless antenna Removeable antenna RED T.H.C./W.M.D. Antenna 790-0420
T.H.C. Wired Connections
T.H.C. Battery, microSD, and
Antenna
