RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 62

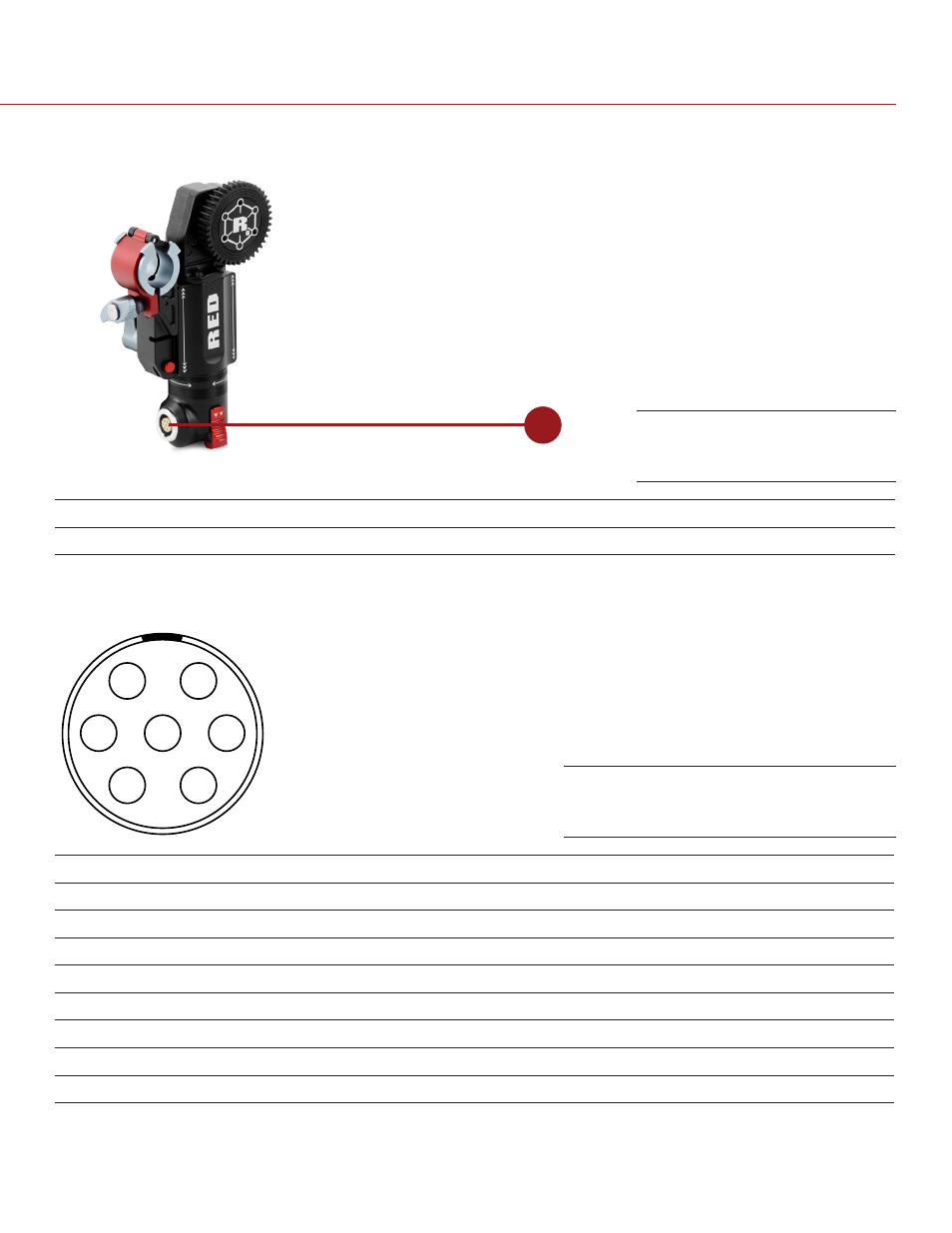

LENS CONTROL MOTOR CONNECTORS
1
#
CONNECTOR TYPE
CONNECTOR FUNCTION
1
7-pin 1B LEMO
Lens motor drive support
LENS CONTROL MOTOR CONNECTOR
The Lens Control Motor connector is an industry-standard 7-pin 1B LEMO connector.
1
6
2
7
5
3
4
7-PIN 1B LEMO LENS DRIVE CONNECTOR
PIN
SIGNAL
1
Motor (+)
2
Motor (-)
3
Encoder A
4
+5 V
5
GND
6
Encoder B
7
Motor ID
Lens Control Motor Connec-
tion
Lens Control Motor 7-Pin 1B connec-
tor
