RED 3-AXIS SYSTEM OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0044, REV-D | 33

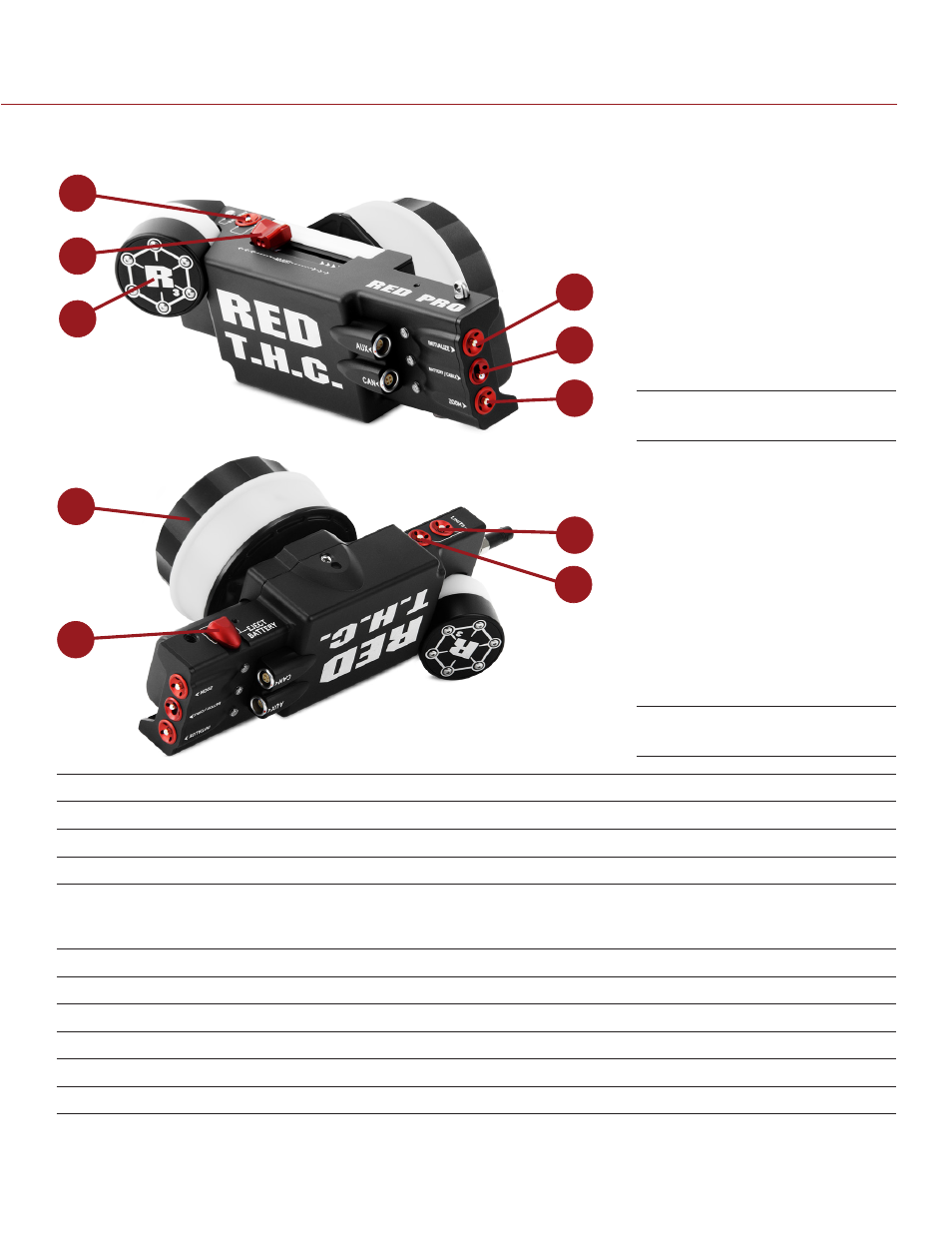

T.H.C. CONTROLS
2
1
3
4
6
5
8
7
9
10
# CONTROL DESCRIPTION
1 Run button Record button for mobile Start/Stop
2 Iris slider 1 Adjusts motor connected to Iris port
3 Zoom wheel 1 Adjusts motor connected to Zoom port
4 Initialize button Press and hold for two (2) seconds to initialize the system;
OR press and release to initialize only motors unknown positions
(Must be paired or connected via CAN cable)
5 Power switch Toggles power source from cabled to battery mode
6 Zoom Limit button Hold down to set the “zoom” lens limit or lens lock
7 Focus wheel 1 Adjusts motor connected Focus port
8 Iris Limit button Hold down to set the “iris” lens limit or lens lock
9 Focus Limit button Hold down to set the “focus” lens limit or lens lock
10 Eject battery release Press to release the rechargeable battery from the T.H.C.
1. Focus, Iris, and Zoom controls can be used interchangeably by connecting the Lens Control Motor to the desired lens function connec-
tor on the W.M.D.
