RED 3-AXIS SYSTEM OPERATION GUIDE

955-0044, REV-D | 22

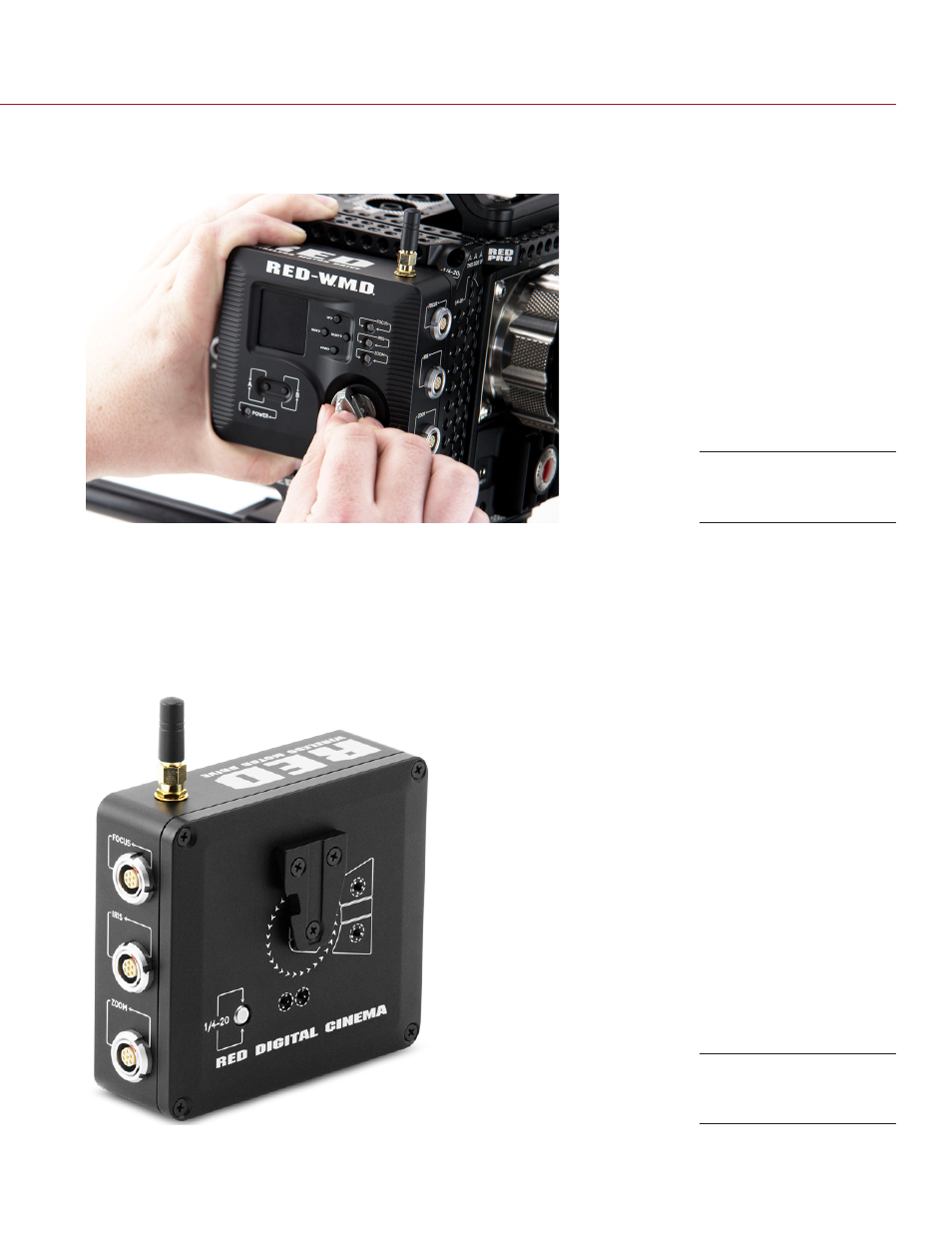

4. Place the W.M.D. against the Tactical Plate so that the guide pin and 1/4-20 screw each align with a 1/4-

20 screw hole.

5. Push and turn the W.M.D. 1/4-20 thumbscrew until it is hand-tight. DO NOT OVERTIGHTEN.

MOUNT THE W.M.D. TO A V-MOUNT RECEIVER

The W.M.D. ships with a V-LOCK to mount the W.M.D. to most industry-standard female v-mount receivers.
1. Align the V-LOCK in the desired position on the back of the W.M.D.
2. Use a Phillips #1 screwdriver to install three (3) M3x0.5 x 8 mm flathead screws that attach the V-LOCK to

the W.M.D. Fully tighten. DO NOT OVERTIGHTEN.
Use a Phillips #1 screwdriver to remove the three (3) M3x0.5 x 8 mm flathead screws, when finished.

Push and Turn

Thumbscrew

W.M.D. Rear

(V-LOCK Installed)
