Page 56
COPYRIGHT © 2014 RED.COM, INC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 56

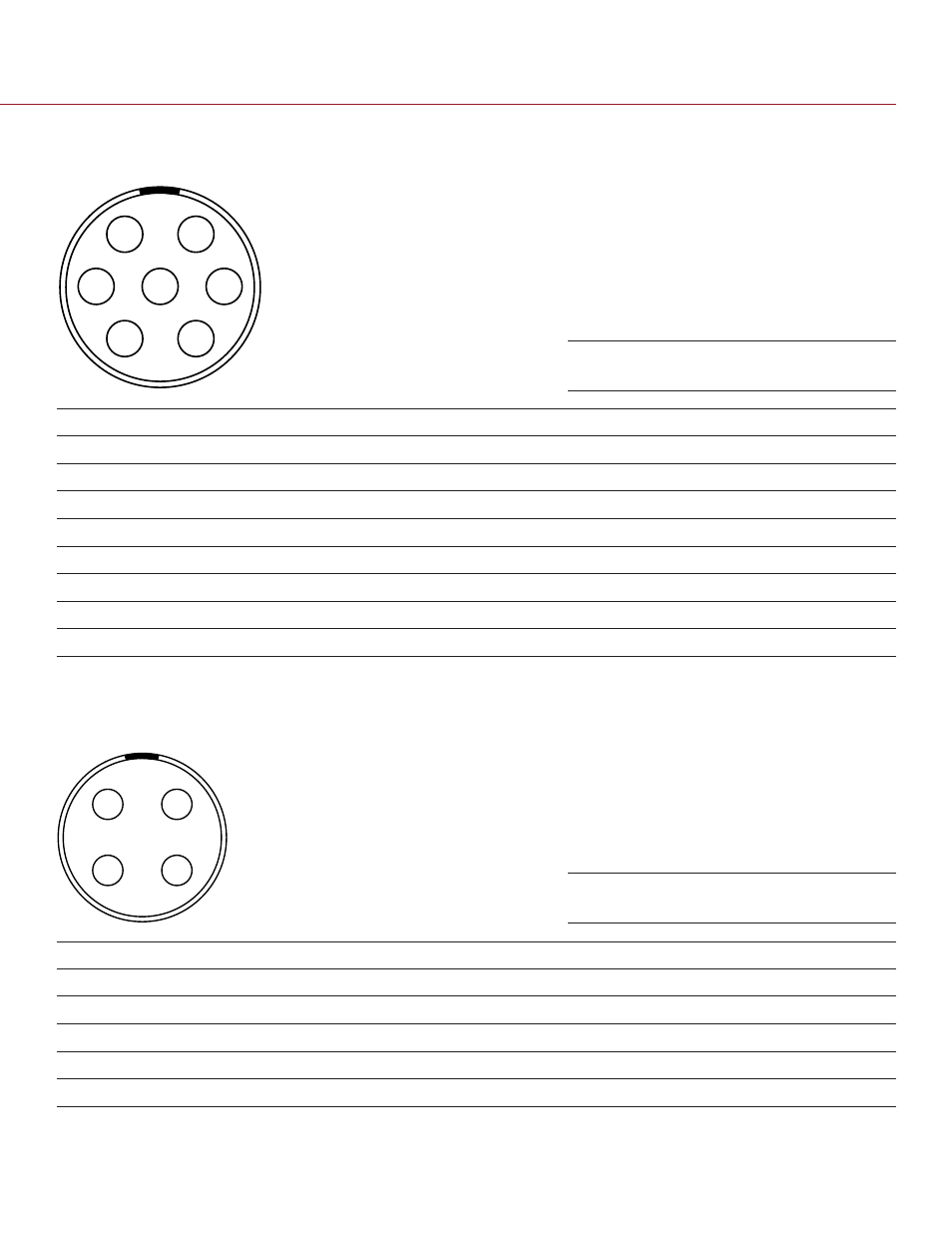

W.M.D. LENS MOTOR CONNECTOR
The W.M.D. Lens Motor connector is an industry-standard 7-pin 1B LEMO connector.
1
6
2
7
5
3
4
7-PIN 1B LEMO LENS DRIVE CONNECTOR
PIN
SIGNAL
1
Motor (+)
2
Motor (-)
3
Encoder A
4
+5 V
5
GND
6
Encoder B
7
Motor ID
W.M.D. CAN CONNECTOR
The W.M.D. CAN connector is a 4-pin 0B LEMO connector that provides power and CAN communications be-
tween the W.M.D. and T.H.C., or other auxiliary devices.
1
2
4
3
4-PIN 0B LEMO CAN CONNECTOR
PIN
SIGNAL
1
GND
2
CANL
3
CANH
4
VCC
W.M.D. 7-Pin 1B lens drive connector
W.M.D. 4-Pin 0B CAN connector
