RED 3-AXIS SYSTEM OPERATION GUIDE

955-0044, REV-D | 41

Lens ControL Motor oVerVIeW

The Lens Control Motor delivers precision control and flexibility in a slim, lightweight design. The

Lens Control Motor features dual-sided dovetail rails, a tool-free mounting clamp, and a rotating 7-pin LEMO

connector for space-saving low profile configuration. It is also engineered with adjustable torque settings,

mounting options for 15mm or 19mm support rods, and a magnetic-locking gear system to accommodate a

wide variety of lenses.
The RED Lens Control Motor is also compatible with third-party motor drivers using the appropriate RED mo-

tor cable with the proper resistance identification. For more information, visit the

WArnInG: ALWAYS use the RED motor cable with the appropriate internal identification resistor when using RED

Lens Control Motors with third-party motor drivers. Any damage caused to motors or motor drivers resulting

from the use of third-party cables will not be covered under warranty.
note: For more information on compatibility, go to

This section provides information on the following Lens Control Motor components:

RED Lens Control Motor

RED Lens Control Motor Mounting Bracket

19mm-to-15mm Rod Reducer Kit

Lens Control Motor Gear M 0.8

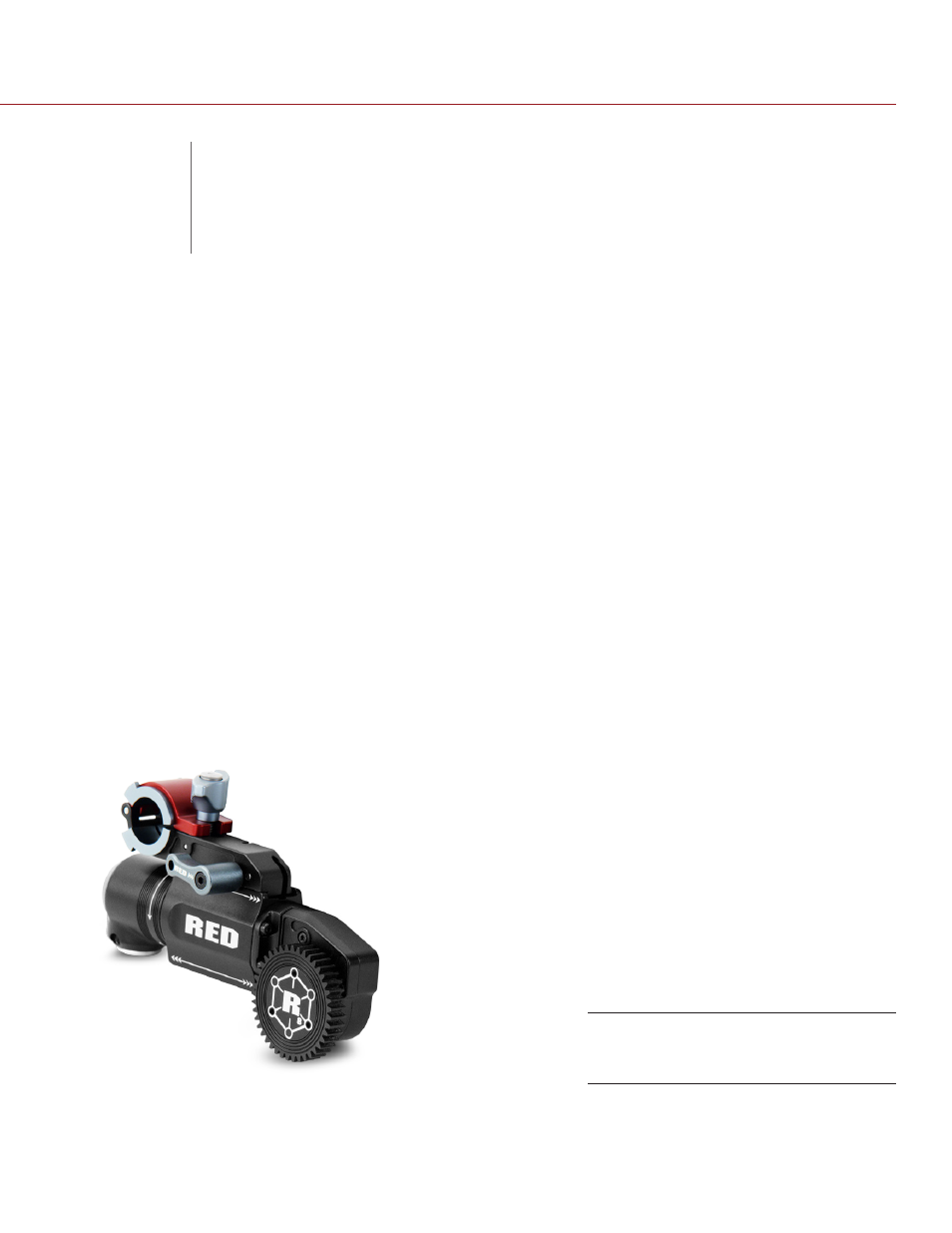

Lens Control Motor with Lens Con-

trol Motor Mounting Bracket

LENS CONTROL

MOTOR
