Fireside Inspection – Continued
BURNER, BLOWER AND EXHAUST MANIFOLD

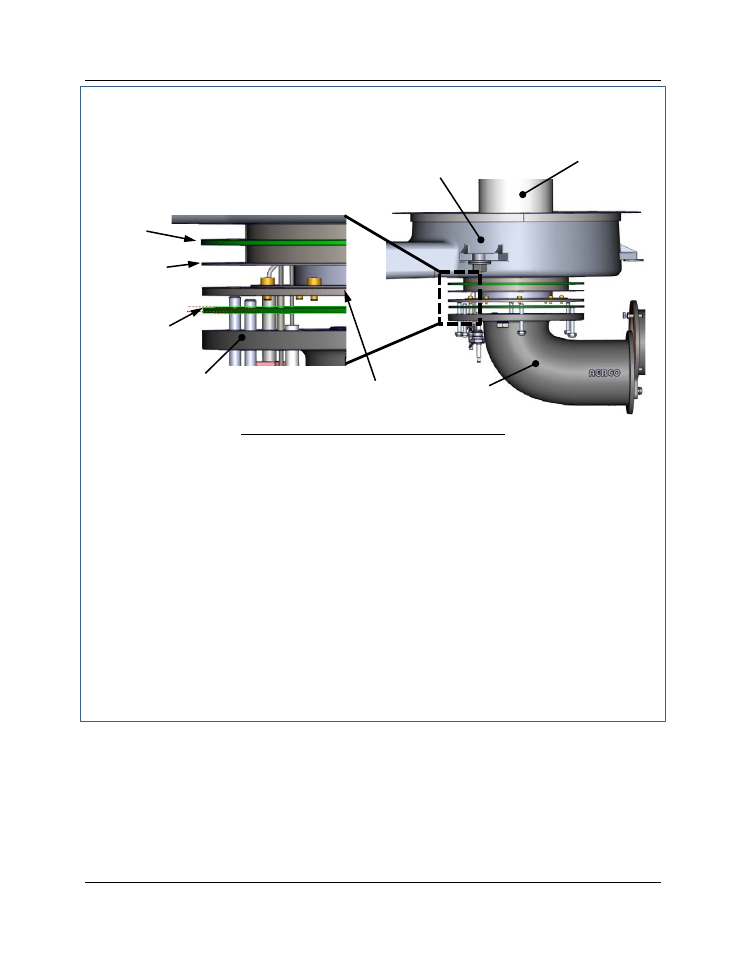

Figure 6-6. Combustion Chamber Liner & Gasket Locations
IMPORTANT
Prior to reassembly, ensure that the combustion chamber liner is installed
before reinstalling the exhaust manifold.
During reassembly, apply high-temperature, anti-seize lubricant to the
threads of the igniter and grounding screw. Also, ensure that the igniter are
properly positioned and are not contacting other components. Torque the
igniter to 15 ft-lbs.
18. Beginning with the exhaust manifold assembly removed in step 14, reinstall all the
components in the reverse order that they were removed.
FIBER FRAX
GASKET
124749
BURNER
FLANGE
GASKET
18899
BURNER
CONDENSATE
SHIELD 49209
BURNER
ASSEMBLY
BURNER
ASSEMBLY
INTAKE
MANIFOLD
INTAKE
MANIFOLD
EXHAUST
MANIFOLD
