AERCO Innovation (G-13-1854 and above) User Manual
Page 143
Innovation Water Heaters Installation, Operation & Maintenance Manual
APPENDIX F – PARTS LIST DRAWINGS
OMM-0078_0J
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913
Page 143 of
196
GF-128
Phone: 800-526-0288
PRI: 11/22/2013

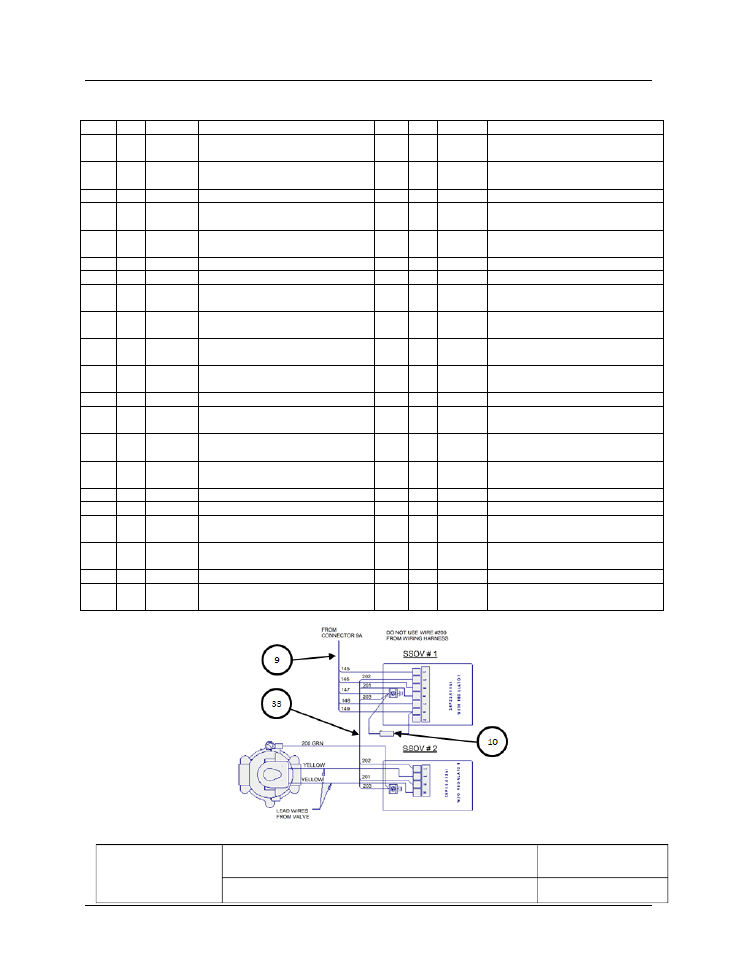

Innovation 600-800-1060 DBB Gas Train – 22122-1 rev F
Item Qty
Part #
Description
Item Qty
Part #
Description
1
4
12951-2
BUSHING: CONTROL BOX
22
1
69038
ACTUATOR: SSOV W/O P.O.C.
SWITCH
2
1
61002-1
PRESSURE SWITCH: 2.6" W.C. FALL
N.O.
23
1
123148
BUSHING: 1" NPT X 3/4" NPT
3
2
99014
NIPPLE: HEX 1/4" NPT X 3/8" NPT
24
2
9-469
ELBOW: 90° 3/4" NPT
4
2
123536
BUSHING: REDUCING 1/4" X 1/8"
NPT
25
1
94061-
8.00
NIPPLE: 3/4" NPT X 8.00 LG
5
1
61002-4
HIGH GAS PRESSURE SWITCH 4.0"
W.C.
26
1
122774
VALVE: VENT 3/4" NPT
6
1
123542
FLANGE 2" 125# 2"NPT
27
1
50005
3/4" PIPE SIZE CLAMP
7
1
92006-5
VALVE: BALL 1" NPT
28
1
123774
1" PIPE SIZE CLAMP
8
1
8-31
BUSHING: REDUCING 1" X 2"
29
1
94061-
6.50
NIPPLE: 3/4" NPT
9
1
161450
HARNESS: WIRING: GAS TRAIN
30
1
94061-
3.00
NIPPLE: 3/4" NPT X 3.00 LG
10
1
124862
RESISTOR ASSY
31
1
94061-
19.00
NIPPLE: 3/4" NPT
11
1
94028-
24.00
NIPPLE: 1" NPT TBE X 24" LG
32
1
59053
CHANNEL: STRUT
12
3
93290
TEE MXFXF BLACK IRON 1/4" NPT
33
1
124024
HARNESS: WIRING: IRI
13
2
92077
1/4" NPT MXF BRASS BALL VALVE
(OPEN)
34
1
9-465
TEE: 1" NPT
14
2
9-22
PIPE PLUG: 1/4" NPT: STEEL
35
1
94028-
2.50
NIPPLE: 1" NPT TBE X 2.50 LG
15
2
93181
ELBOW: STREET 1" NPT
36
1
94028-
4.50
NIPPLE: 1" NPT TBE X 4.50 LG
16
1
123771
UNION: MA x FEM 1" NPT: 150# M.I. 37
1
93337
BUSHING: REDUCING 1x 1/4
17
1
97005-5
TUBE: FLEXIBLE GAS 18"
38
1
9-331
NIPPLE: 1" NPT TBE X 1.50 LG
18
1
124137
VALVE: SSOV: DOUBLE BODY: 1-1/2"
NPT
39
1
80087-1 INNOVATION ENCLOSURE PIPE SEAL
19
2
8-22
BUSHING: REDUCING 1 1/2" F NPT X
1" M NPT
40
1
80087-2 INNOVATION ENCLOSURE PIPE SEAL
20
2
95029
FLANGE: SSOV 1 1/2" NPT
41
1
123533
NIPPLE: CLOSE 1/8"
21
1
69005
ACTUATOR: SSOV W/ REGULATOR
42
1
93445
COUPLING: REDUCING 1/4 x 1/8
NPT: BLK MI
124862 and 69005 are supplied as a kit. Order Kit # 64100
AERCO
International, Inc.
Blauvelt, NY 10913
Innovation 600-800-1060 DBB Gas Train
08/12/2013
22122-1 rev F (AP-A-897)
Sheet 1 of 2
