Innovation Water Heaters Installation, Operation & Maintenance Manual
APPENDIX F – PARTS LIST DRAWINGS
Page 142 of
196
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913
OMM-0078_0J
PRI: 11/22/2013
Phone: 800-526-0288
GF-128

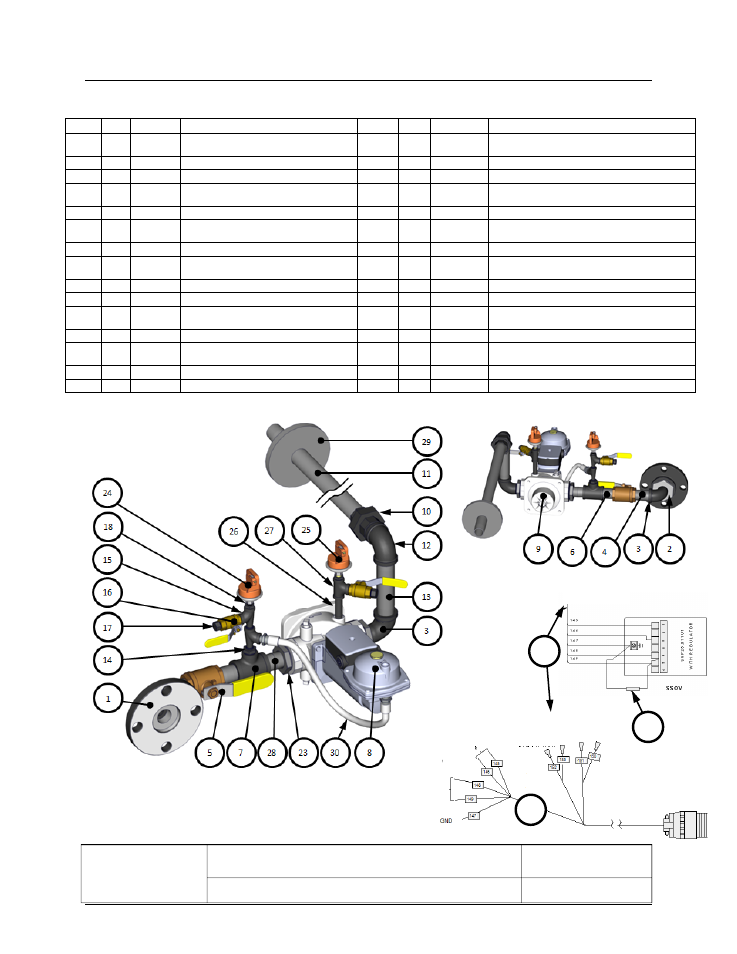

Innovation 1350 FM Gas Train - 22168 rev A
Item Qty
Part #
Description
Item
Qty
Part #
Description
1
1
123542
FLANGE 2" 125# 2"NPT
16
2
92077
1/4" NPT MXF BRASS BALL VALVE
(CLOSED)
2
1
8-31
BUSHING: REDUCING 1" X 2"
17
2
9-22
PIPE PLUG: 1/4" NPT: STEEL
3
2
93181
ELBOW: STREET 1" NPT
18
2
123536
BUSHING: REDUCING 1/4" X 1/8" NPT
4
1
94028-
3.00
NIPPLE: 1" NPT TBE X 3.00 LG
19
2
12951-2
BUSHING: CONTROL BOX
5
1
92006-5
VALVE: BALL 1" NPT
20
2
99014
NIPPLE: HEX 1/4" NPT X 3/8" NPT
6
1
94028-
2.50
NIPPLE: 1" NPT TBE X 2.50 LG
21
1
161450
HARNESS: WIRING: GAS TRAIN
7
1
93315
TEE RDCG 1" x ½" x 1" M.I.
22
1
124862
RESISTOR ASSY
8
1
69005
ACTUATOR: SSOV W/ REGULATOR
23
2
8-22
BUSHING: REDUCING 1 1/2" F NPT X 1" M
NPT
9
1
124150
VALVE: SSOV 1-1/2" NPT
24
1
61002-12
HIGH GAS PRESSURE SWITCH 4.7" W.C.
10
1
123771
UNION: MA x FEM 1" NPT: 150# M.I.
25
1
61002-11
LOW GAS PRESSURE SWITCH 3.6" W..C.
11
1
94028-
24.00
NIPPLE: 1" NPT TBE X 24" LG
26
1
124088
NIPPLE: 1/4" NPT: C.S. 2 1/2" LONG
12
1
9-222
ELBOW: 90
27
1
93405
TEE: 1/4" NPT BLK M.I.
13
1
94028-
5.25
NIPPLE: 1" NPT TBE X 5.25 LG
28
1
9-331
NIPPLE: 1" NPT TBE X 1.50 LG
14
1
9-43
BUSHING: REDUCING 1/2 X 1/4 NPT
29
1
80087-2
INNOVATION ENCLOSURE PIPE SEAL
15
2
93290
TEE MXFXF BLACK IRON 1/4" NPT
30
1
97005-2
TUBE: FLEXIBLE GAS 12"
69005 and 124862 are supplied as a kit # 64100
AERCO
International, Inc.
Blauvelt, NY 10913
Innovation 1350 FM Gas Train
08/02/2013
22168 rev A (AP-A-905)
Sheet 1 of 1
22
21
22
SSOV PWR
SSOV
PROOF OF
CLOSURE
SWITCH
LOW PRES
GAS
SWITCH
HIGH PRES
GAS
SWITCH
From Connector
9A
