Innovation Water Heaters Installation, Operation & Maintenance Manual
APPENDIX F – PARTS LIST DRAWINGS
OMM-0078_0J AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 145 of 196
GF-128 Phone: 800-526-0288 PRI: 11/22/2013

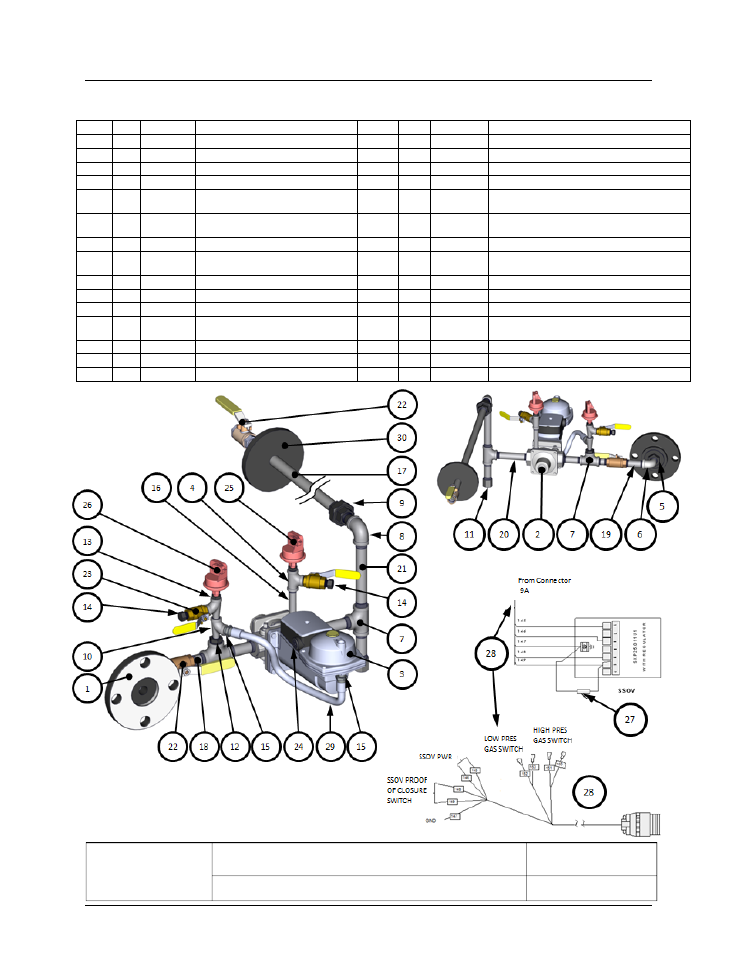

Innovation 600P-800P Gas Train – 22179 rev B
Item Qty Part # Description Item Qty Part # Description
1 1 123542 FLANGE 2" 125# 2"NPT 16 1 90096 NIPPLE: 1/4 X 3½ SCH 40 BLACK STEEL
2 1 92103 VALVE: SSOV 1/2" NPT 17 1 90098 NIPPLE ½ x 24 SCH 40 BLK STL
3 1 69005 ACTUATOR: SSOV W/ REGULATOR 18 2 90099 NIPPLE ½ x 2.00 SCH 40 BLK STL
4 1 93405 TEE: 1/4" NPT BLK M.I. 19 3 90100 NIPPLE ½ x 3.00 SCH 40 BLK STL
5
1 93416
BUSHING: HEX REDUCING 2 x ½ BLK
CAST IRON
20
1 90101 NIPPLE ½ x 4.50 SCH 40 BLK STL
6
1 93417
FEM x MA 90° ½ [STREET] ELBOW BLK
MI
21
1 90102 NIPPLE ½ x 6.00 SCH 40 BLK STL
7 2 93418 TEE ½" NPT BLACK MI 22 2 92006-3 VALVE: FULL PORT BALL 1/2" NPT BRASS
8
1 93419
ELBOW: 90° FEMALE ½" NPT BLACK
MI
23
2 92077 1/4" NPT MXF BRASS BALL VALVE (CLOSED)
9 1 93420 UNION ½" NPT FEMALE BLACK MI 24 2 12951-2 BUSHING: CONTROL BOX
10 2 93290 TEE MXFXF BLACK IRON 1/4" NPT 25 1 61002-8 LOW GAS PRESSURE SWITCH 4.4" W.C.
11 1 93428 CAP: ½" NPT PIPE STEEL 26 1 61002-4 HIGH GAS PRESSURE SWITCH 4.0" W.C.
12
1 123311
BUSHING: REDUCING 1/2" NPT X 1/4"
NPT
27
1 124862 RESISTOR ASSY
13 2 123536 BUSHING: REDUCING 1/4" X 1/8" NPT 28 1 161450 HARNESS: WIRING: GAS TRAIN
14 2 9-22 PIPE PLUG: 1/4" NPT: STEEL 29 1 97005-2 TUBE: .38 FLEXIBLE GAS 12" LG
15 2 99014 NIPPLE: HEX 1/4" NPT X 3/8" NPT 30 1 80087-0 INNOVATION ENCLOSURE PIPE SEAL
AERCO
International, Inc.
Blauvelt, NY 10913
Innovation 600P-800P PROPANE Gas Train 08/02/2013
22179 rev B (AP-A-922) Sheet 1 of 1
