Benchmark 6000 DF Installation, Operation & Maintenance Manual
CHAPTER 3 – OPERATION
Page 54 of 219 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0096_0B
03/21/2014
Ph.: 800-526-0288
GF-141

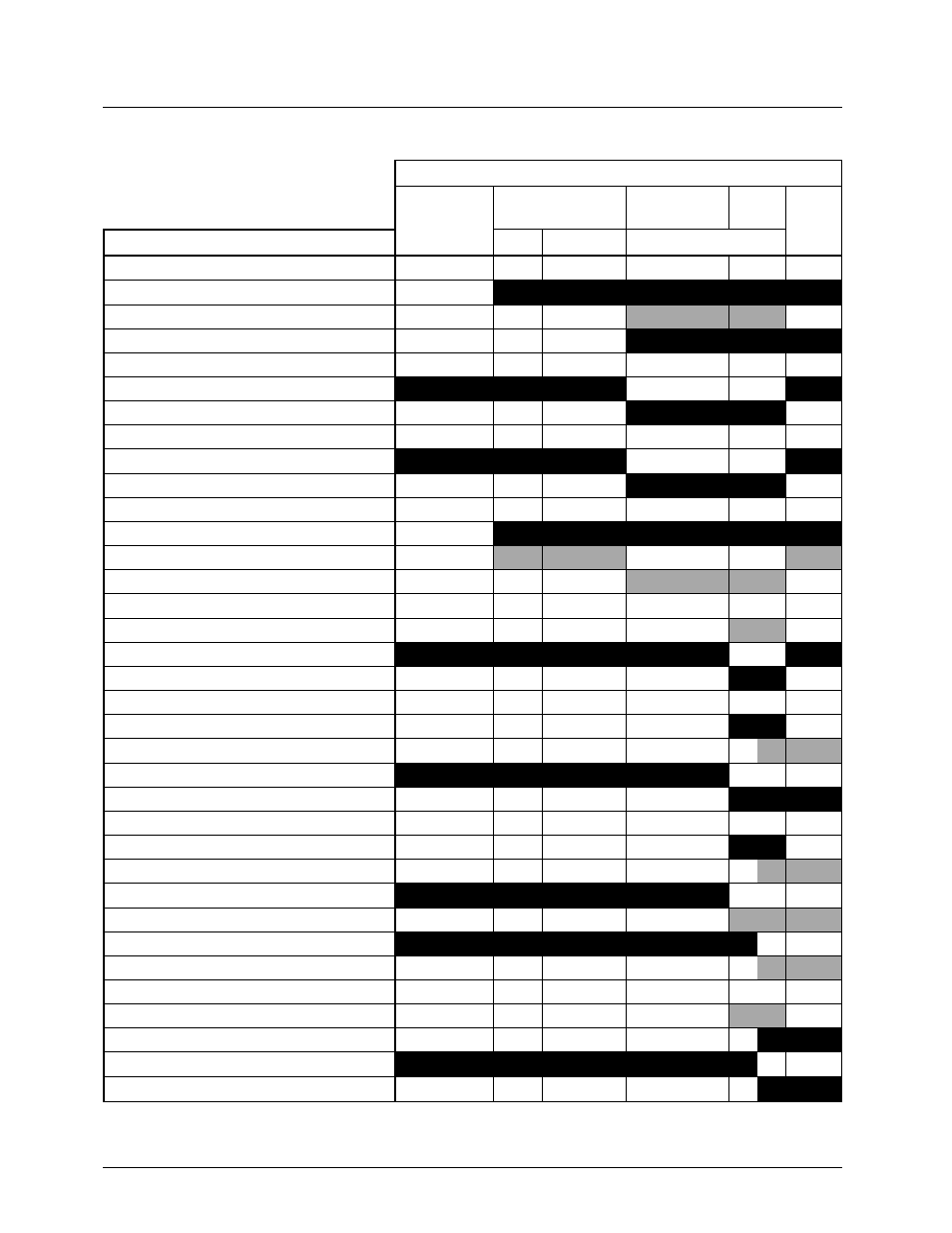

Benchmark 6000 FUNCTION TIMING CHART FOR PROVED PILOT CONTROL SYSTEM
OPERATING STATE
STANDBY
C-MORE
PRE-PURGE PFEP MFEP
RUN COMPONENT T=0s 30≤T≤60s T= 7 sec
C-MORE CONTROL BOX
Scanner Power
Ignition Power
SSOV Power
PILOT VALVE
Pilot Valve Closed
Pilot Valve Open
IGNITION TRANSFORMER
Transformer Off
Transformer On
UV SCANNER
Powered
"Ignored"
In Use
RELAY 1 (R1)
Coil
C-NC
C-NO
RELAY 2 (R2)
Coil Power from R1
Coil Power from SKP 15 AUX
C-NC
C-NO
UPSTREAM SSOV (SKP15)
Power through R1
Power through R2 and AUX
POC C-NC
POC C-NO
AUX C-NC
AUX C-NO
DOWNSTREAM SSOV (SKP25)
Power through R1
Power through R2 and AUX
POC C-NC
POC C-NO
Figure 3-7. Timing Chart For Proved Pilot System
