Benchmark 6000 DF Installation, Operation & Maintenance Manual
APPENDIX G – PART LIST DRAWINGS
OMM-0096_0B AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 175 of 219
GF-141
Ph.: 800-526-0288
03/21/2014
APPENDIX G – PART LIST DRAWINGS

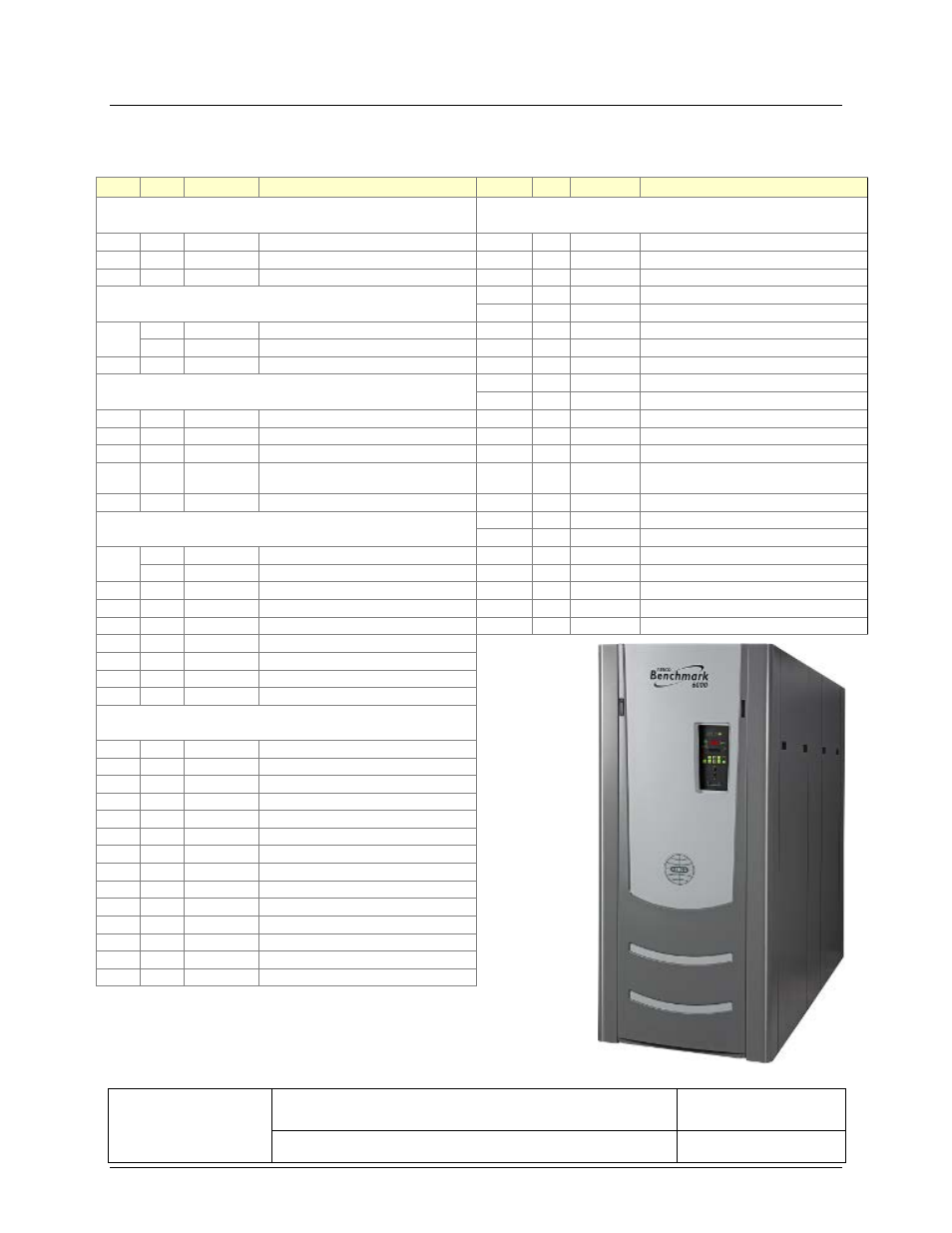

Benchmark 6000 Dual Fuel Part List
Item # Qty Part # Description Item # Qty Part # Description
EXHAUST MANIFOLD CONTROLS (Continued)
1 1 39131 MANIFOLD: EXHAUST 56  1 63004 HARNESS: 460V TRANSFORMER
2 3 9-22 PIPE PLUG: 1/4" NPT: STEEL 57  1 63126 BLOWER CONTROL HARNESS
3 1 84042 SEAL: MANIFOLD 58  2 69169 JUMPER BAR: DIN TERMINALS
59  1 63121 HARNESS: 12V POWER SOURCE
GAS TRAIN ASSEMBLY 60  1 63122 GROUND CABLE: #12
6
1 22187 DUAL FUEL GAS TRAIN 61 1 181197 CONTROL BOX: C-MORE
1 22187-1 DUAL FUEL DBB GAS TRAIN 62 1 65085 TRANSFORMER: IGNITION
63 2 65135 OMRON RELAY BASE
64 2 65134 OMRON RELAY 120V
BLOWER ASSEMBLY 65 4 39168 CLIP: SHIELD
19 1 58065 BLOWER REPLACEMENT KIT 66 1 61032 SURFACE TEMP SENSOR
27 1 59198 TURNBUCKEL 67  1 123449 SENSOR: TEMP. 1-1/2"
68 1 61026 SENSOR, O2
69 1 61030
1-1/2" TEMP. SENSOR: BALCO WIRE AND
RTD
70 1 93359 THERMOWELL
71 1 64081 ECU
BURNER, AIR/FUEL VALVE & HEAT EXCHANGER 72 1 65011 TRANSFORMER 115V/24V 100VA
30
1 24328 BURNER ASSEMBLY 460V 73 1 65109 12V POWER SUPLY
1 24328-2 BURNER ASSEMBLY 208V 74 1 123552 OVER TEMP-MANUAL RESET SWITCH
34 2 88014 FILTER: AIR 6" X 12 LG 75 1 123966 ADJUSTABLE OVER TEMP LIMIT SWITCH
35 1 28506 HEAT EXCHANGER ASSY 76 1 69161-1 DIN RAIL
36  1 39167 SHIELD: BURNER
37  1 83028 FRONT REFRACTORY
38 1 83027 REAR REFRACTORY
39 1 96017 DUCT: WYE 8" X 6" X 6"
40 1 39170 SHIELD ASSY
CONTROLS
45  1 63112 HARNESS: O2 SENSOR
46 1 65104 CABLE: H.V. IGNITION
47  2 63114 OPTICAL SENSOR HARNESS
48 2 61031 FLAME DETECTOR
50 a 1 65129 VFD DRIVE 208V
50 b 1 65130 VFD DRIVE 460V
51 1 65162 24V POWER SUPPLY (Sequencing Valve)
52 2 69141 DIN RAIL MOUNT END STOP
53  1 63113-1 SHELL HARNESS
54 1 69172 I/O ASSY WITH ONAER
55  1 63111 HARNESS: CONTROL
 Not shown on drawing
AERCO
International, Inc.
Blauvelt, NY 10913
Benchmark 6000 DF Part List 02/01/2014
Whole Boiler p/n 28510-5 Sheet 1 of 8
